E
EPC Data

SEAT BELT

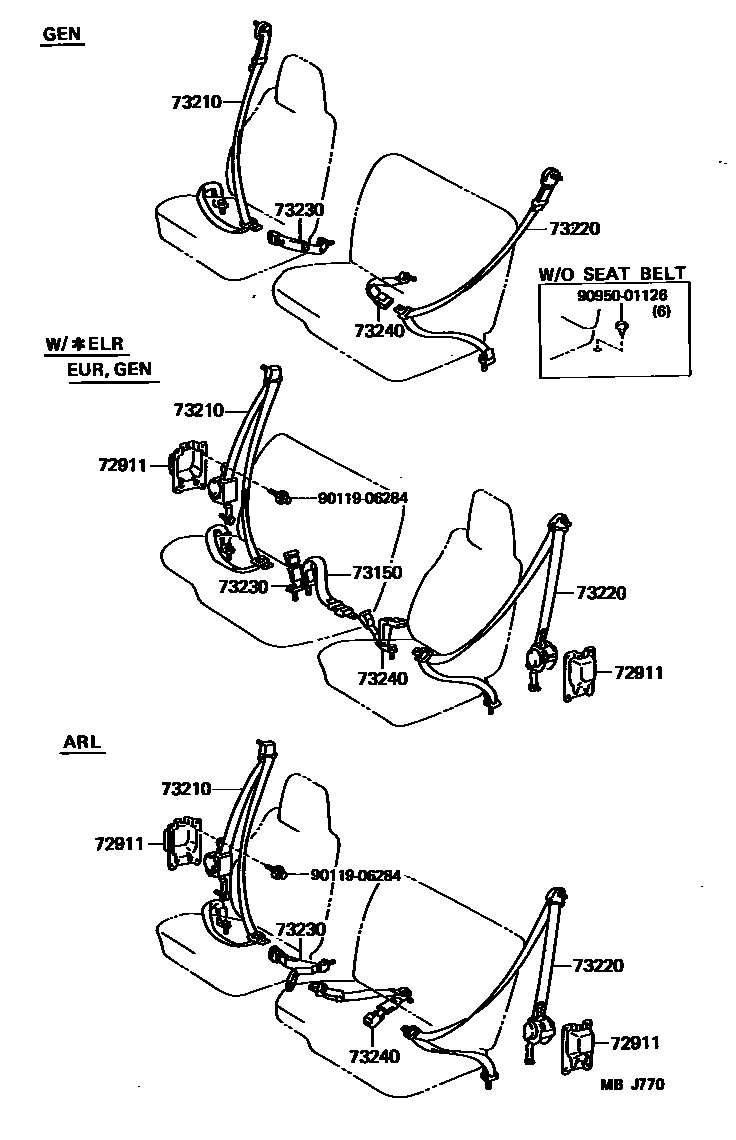

Parts diagram
72911COVER, SEAT BELT RETRACTOR
main73223-95400i198508-198708
IRELAND SPEC,*ELR,GRAY
sub73223-37010
73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER
main73150-95A00-03i198508-198608
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
main73150-95A00-03i198508-198608
GRAY,SHADOW GRAY
main73150-95A01-03i198608-198708
GRAY,SHADOW GRAY
sub73150-37010
main73150-95A01-03i198608-198708
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
sub73150-37010
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-95A00-03i198508-198708
GRAY,SHADOW GRAY
sub73210-95415
main73210-95A02-03i198508-198608
GRAY,SHADOW GRAY
main73210-95A03-03i198508-198608
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
main73210-95A03-03i198508-198608
GRAY,SHADOW GRAY
main73210-95A04-03i198608-198708
GRAY,SHADOW GRAY
main73210-95A05-03i198608-198708
GRAY,SHADOW GRAY
sub73210-95A05
sub73210-37060
main73210-95A05-03i198608-198708
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
sub73210-95A05
sub73210-37060
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-95A00-03i198508-198708
GRAY,SHADOW GRAY
sub73210-95415
main73210-95A02-03i198508-198608
GRAY,SHADOW GRAY
main73210-95A03-03i198508-198608
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
main73210-95A03-03i198508-198608
GRAY,SHADOW GRAY
main73210-95A04-03i198608-198708
GRAY,SHADOW GRAY
main73210-95A05-03i198608-198708
GRAY,SHADOW GRAY
sub73210-95A05
sub73210-37060
main73210-95A05-03i198608-198708
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
sub73210-95A05
sub73210-37060
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-95A00-03i198508-198708
GRAY,SHADOW GRAY
sub73230-95A00
main73230-95A01-03i198508-198608
GRAY,SHADOW GRAY
main73230-95A02-03i198508-198608
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
main73230-95A03-03i198508-198608
GRAY,SHADOW GRAY
main73230-95A04-03i198608-198708
GRAY,SHADOW GRAY
main73230-95A05-03i198608-198708
GRAY,SHADOW GRAY
sub73230-95A05
main73230-95A06-03i198608-198708
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
sub73230-95A06
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-95A00-03i198508-198708
GRAY,SHADOW GRAY
main73240-95A01-03i198508-198608
GRAY,SHADOW GRAY
main73240-95A02-03i198508-198608
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
main73240-95A03-03i198508-198608
W/CTR SEAT BELT,GRAY,SHADOW GRAY
main73240-95A04-03i198508-198608
W/O CTR SEAT BELT,GRAY,SHADOW GRAY
main73240-95A05-03i198608-198708
GRAY,SHADOW GRAY
main73240-95A06-03i198608-198708
W/CTR SEAT BELT,GRAY,SHADOW GRAY
sub73240-95A06
main73240-95A07-03i198608-198708
W/O CTR SEAT BELT,GRAY,SHADOW GRAY
sub73240-95A07
main73240-95A08-03i198608-198708
IRELAND SPEC,*ELR,GRAY,SHADOW GRAY
sub73240-95A08
9011906284
main90119-06284
9095001126
main90950-01126

8 parts on this diagram · 2 diagrams in section
