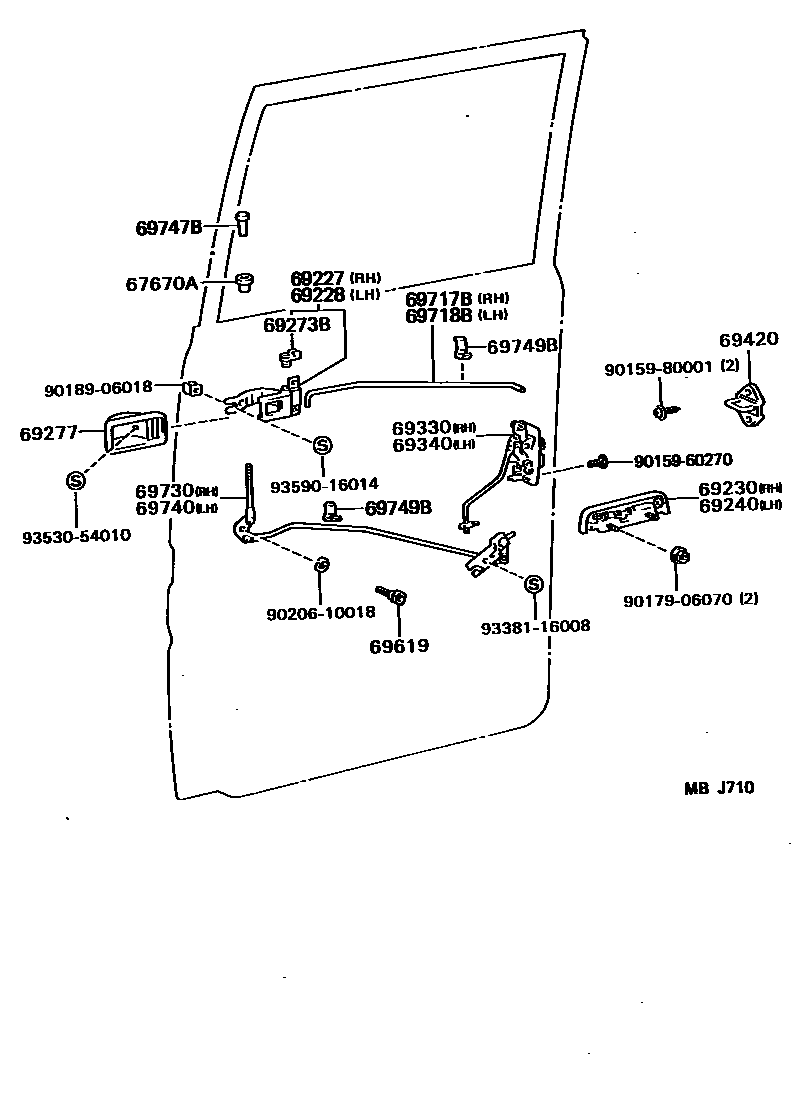

REAR DOOR LOCK & HANDLE

67670AGROMMET(FOR REAR DOOR PANEL LOCK BUTTON)

main90480-10102-01iLH80,YH8#..TW198508-198708

BLACK

sub90480-10102¥190

69227HANDLE, REAR DOOR INSIDE, RH

main69205-12040-03iLH80,YH8#..TW198508-198708

GRAY,SHADOW GRAY

sub69205-12040¥2,010

69228HANDLE, REAR DOOR INSIDE, LH

main69206-12040-03iLH80,YH8#..TW198508-198708

GRAY,SHADOW GRAY

sub69206-12040¥2,010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-92601iLH80,YH8#..TW¥2,720198508-198708

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-92601iLH80,YH8#..TW¥2,720198508-198708

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-12010iLH80,YH8#..TW¥300198508-198708

69277BEZEL, REAR DOOR INSIDE HANDLE

main69276-10012-13iLH80,YH8#..TW198508-198708

GRAY,SHADOW GRAY

sub69276-10012¥470

69330LOCK ASSY, REAR DOOR, RH

main69330-95400iLH80,YH8#..TW¥7,100198508-198708

69340LOCK ASSY, REAR DOOR, LH

main69340-95400iLH80,YH8#..TW¥7,100198508-198708

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-95010iLH80,YH8#..TW¥1,280198508-198708

sub69410-37010¥1,320

69619BOLT, REAR DOOR LOCKING CONTROL

main69619-95010iLH80,YH8#..TW¥270198508-198708

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69717-95A00iLH80,YH8#..TW¥980198508-198708

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69718-95A00iLH80,YH8#..TW¥980198508-198708

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69701-95A00iLH80,YH8#..TW¥3,170198508-198708

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69702-95A00iLH80,YH8#..TW¥3,280198508-198708

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69747-20020-01iLH80,YH8#..TW198508-198708

BLACK,BLACK

sub69747-20020¥250

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iLH80,YH8#..TW¥140198508-198708

9015960270

main90159-60270¥120

9015980001

main90159-80001¥120

9017906070

main90179-06070¥180

9018906018

main90189-06018¥80

9020610018

main90206-10018¥110

9338116008

main93381-16008¥120

9353054010

main93530-54010¥70

9359016014

main93590-16014¥280

25 parts on this diagram · 1 diagram in section
