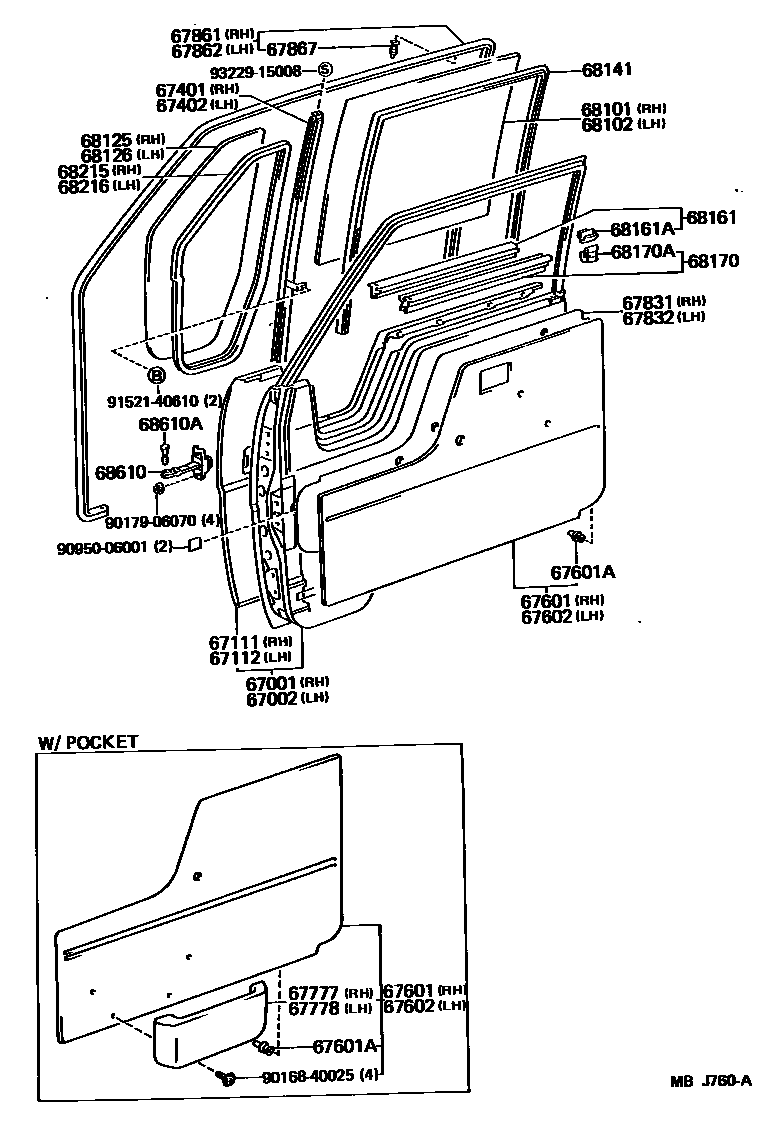

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95421iLH80,YH81..ARL..IV¥47,600198508-198708

sub67001-95424¥47,600

main67001-95424iLH80,YH80..LHD..GEN¥47,600198701-198708

sub67001-95433¥47,600

sub69751-95400¥170

main67001-95425iLH80..TW..EUR¥47,600198604-198708

DENMARK SPEC

sub67001-95434¥47,600

sub69751-95400¥170

main67001-95A16iLH80,YH80..RHD..GEN¥47,600198508-198708

sub67001-95A17¥47,600

main67001-95A17iLH80,YH81..EUR¥47,600198701-198708

sub67001-95A21¥47,600

sub69751-95400¥170

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95425iLH80,YH8#..RHD¥47,600198508-198701

sub67002-95429¥47,600

main67002-95426iLH80..T3..GEN..CBU¥47,600198508-198701

ILELAND SPEC

sub67002-95430¥47,600

main67002-95429iLH80,YH8#..RHD¥47,600198701-198708

sub67002-95439¥47,600

sub69751-95400¥170

main67002-95430iLH80..T3..GEN..CBU¥47,600198701-198708

ILELAND SPEC

sub67002-95440¥47,600

sub69751-95400¥170

main67002-95A23iLH80,YH81..EUR¥47,600198508-198701

sub67002-95A25¥47,600

main67002-95A25iLH80,YH81..EUR¥47,600198701-198708

sub67002-95A29¥47,600

sub69751-95400¥170

67111PANEL, FRONT DOOR, OUTER RH

main67111-95406iLH80,YH80..LHD..GEN¥17,100198508-198708

sub67111-95407¥17,000

main67111-95407iLH80..TW..EUR¥17,000198604-198708

DENMARK SPEC

sub67111-37020¥17,000

main67111-95A10iYH81..ARL..CBU¥19,300198508-198708

sub67111-37010¥19,300

67112PANEL, FRONT DOOR, OUTER LH

main67112-95405iLH80,YH8#..RHD¥17,100198508-198708

sub67112-95406¥17,000

main67112-95406iLH80..T3..GEN..CBU¥17,000198508-198708

ILELAND SPEC

sub67112-37020¥17,000

main67112-95A11iLH80,YH81..EUR¥19,300198508-198708

sub67112-37010¥19,300

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67503-95400iLH80,YH8#¥2,840198508-198708

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67504-95400iLH80,YH8#¥2,840198508-198708

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95019-03iLH80,YH8#198508-198708

GRAY,SHADOW GRAY

sub67610-95022¥7,900

main67610-95022-03iLH80,YH8#..RHD198508-198708

W/POCKET,GRAY,SHADOW GRAY

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iLH80,YH8#¥180198508-198708

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95022-03iLH80,YH8#198508-198708

GRAY,SHADOW GRAY

sub67620-95026¥7,900

main67620-95026-03iLH80,YH8#..LHD198508-198708

W/POCKET,GRAY,SHADOW GRAY

sub67620-95026¥7,900

67777POCKET, FRONT DOOR TRIM, RH

main67778-22030-23iLH80,YH8#..RHD198508-198708

GRAY,SHADOW GRAY

sub67778-22030¥4,730

67778POCKET, FRONT DOOR TRIM, LH

main67777-22040-23iLH80,YH8#..LHD198508-198708

GRAY,SHADOW GRAY

sub67777-22040¥4,730

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95404iLH80,YH8#¥750198508-198708

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95404iLH80,YH8#¥750198508-198708

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iLH80,YH8#¥5,700198508-198708

sub67861-37010¥8,500

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iLH80,YH8#¥5,700198508-198708

sub67862-37010¥8,500

67867CLIP, DOOR WEATHERSTRIP

main67867-89103iLH80,YH8#¥100198508-198708

LH

main67868-89101iLH80,YH8#¥170198508-198708

RH

sub67867-89103¥100

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95406iLH80,YH8#¥8,600198508-198708

*TEM,T=4.0,*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95406iLH80,YH8#¥8,600198508-198708

*TEM,T=4.0,*TEM,T=4.0

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iLH80,YH8#¥8,100198508-198708

*TEM,T=3.5,*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iLH80,YH8#¥8,100198508-198708

*TEM,T=3.5,*TEM,T=3.5

sub68126-37020¥15,500

68141RUN, FRONT DOOR GLASS

main68141-95406iLH80,YH8#¥2,250198508-198708

sub68141-95407¥2,480

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95402iLH80,YH8#¥1,820198508-198708

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080iLH80,YH8#¥230198508-198708

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95406iLH80,YH8#¥1,630198508-198708

RH

sub68171-95408¥1,800

main68172-95402iLH80,YH8#¥1,630198508-198708

LH

sub68172-95405¥1,800

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iLH80,YH8#¥130198508-198708

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iLH80,YH8#¥4,300198508-198708

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iLH80,YH8#¥4,330198508-198708

68610CHECK ASSY, FRONT DOOR

main68610-95400iLH80,YH8#¥3,170198508-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-90A00iLH80,YH8#¥280198508-198708

sub68617-90A01¥300

9016840025

main90168-40025¥70

9017906070

main90179-06070¥180

9095006001

main90950-06001¥170

9152140610

main91521-40610¥110

9322915008

main93229-15008¥80

34 parts on this diagram · 1 diagram in section
