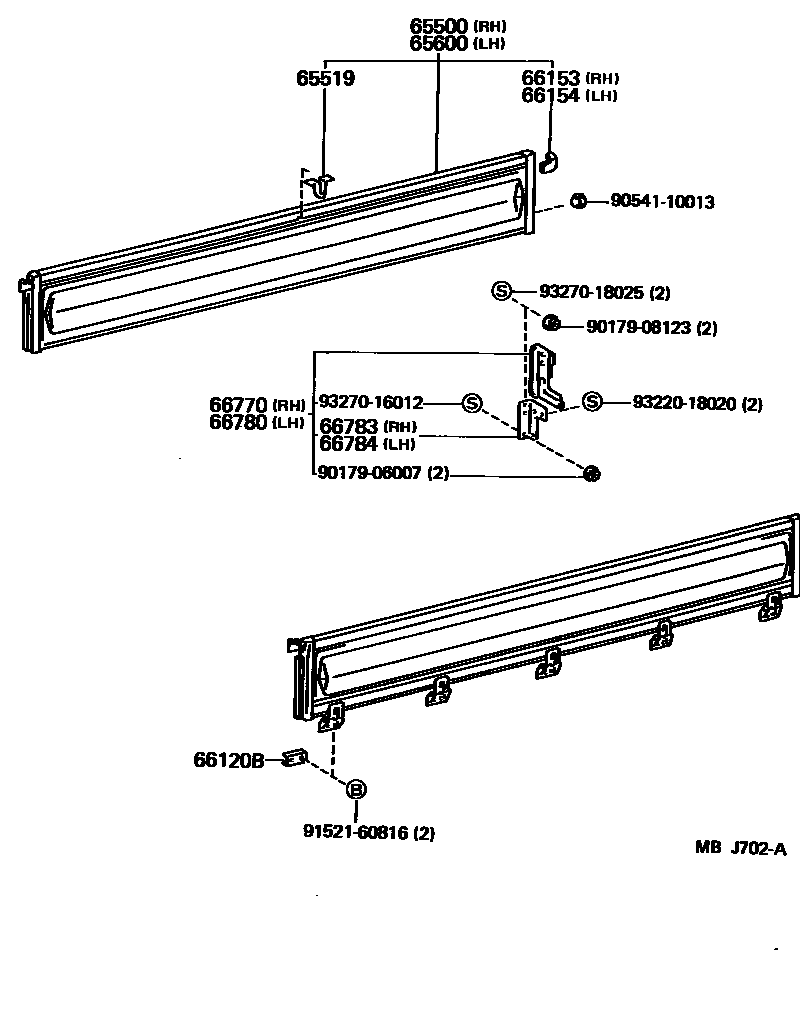

REAR BODY SIDE PANEL

0001 1 0002 1

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-95A09iLH80,YH8#..TW198508-198708

main65500-95A10iLH80,YH8#..T3..(EUR,GEN)198508-198708

W/SIDE GATE SUPPORT

sub65500-26030

main65500-95A11iLH80,YH8#..T3..(EUR,GEN)198508-198708

sub65500-26040

65519BRACKET, TOP RAIL

main65519-95010iLH80,YH8#..T3..(EUR,GEN)198508-198708

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-95A08iLH80,YH8#..TW198508-198708

main65600-95A09iLH80,YH8#..T3..(EUR,GEN)198508-198708

W/SIDE GATE SUPPORT

sub65600-26030

main65600-95A10iLH80,YH8#..T3..(EUR,GEN)198508-198708

sub65600-26040

66120BRETAINER, SIDE GATE HINGE, LOWER

main66115-95018iLH80,YH8#..T3..(EUR,GEN)198508-198708

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iLH80,YH8#..TW198508-198708

main66153-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198707

sub66153-95A01

main66153-95A01iLH80,YH8#..T3..(EUR,GEN)198707-198708

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iLH80,YH8#..TW198508-198708

main66154-95A00iLH80,YH8#..T3..(EUR,GEN)198508-198707

sub66154-95A01

main66154-95A01iLH80,YH8#..T3..(EUR,GEN)198707-198708

66770SUPPORT SUB-ASSY, SIDE GATE, RH

main66770-95013iLH80,YH8#..T3..(EUR,GEN)198508-198708

66780SUPPORT SUB-ASSY, SIDE GATE, LH

main66780-95013iLH80,YH8#..T3..(EUR,GEN)198508-198708

66783BRACKET, SIDE GATE SUPPORT, RH

main66783-95012iLH80,YH8#..T3..(EUR,GEN)198508-198708

66784BRACKET, SIDE GATE SUPPORT, LH

main66784-95012iLH80,YH8#..T3..(EUR,GEN)198508-198708

9017906007

main90179-06007

9017908123

main90179-08123

9054110013

main90541-10013

9152160816

main91521-60816

9322018020

main93220-18020

9327016012

main93270-16012

9327018025

main93270-18025

17 parts on this diagram · 2 diagrams in section
