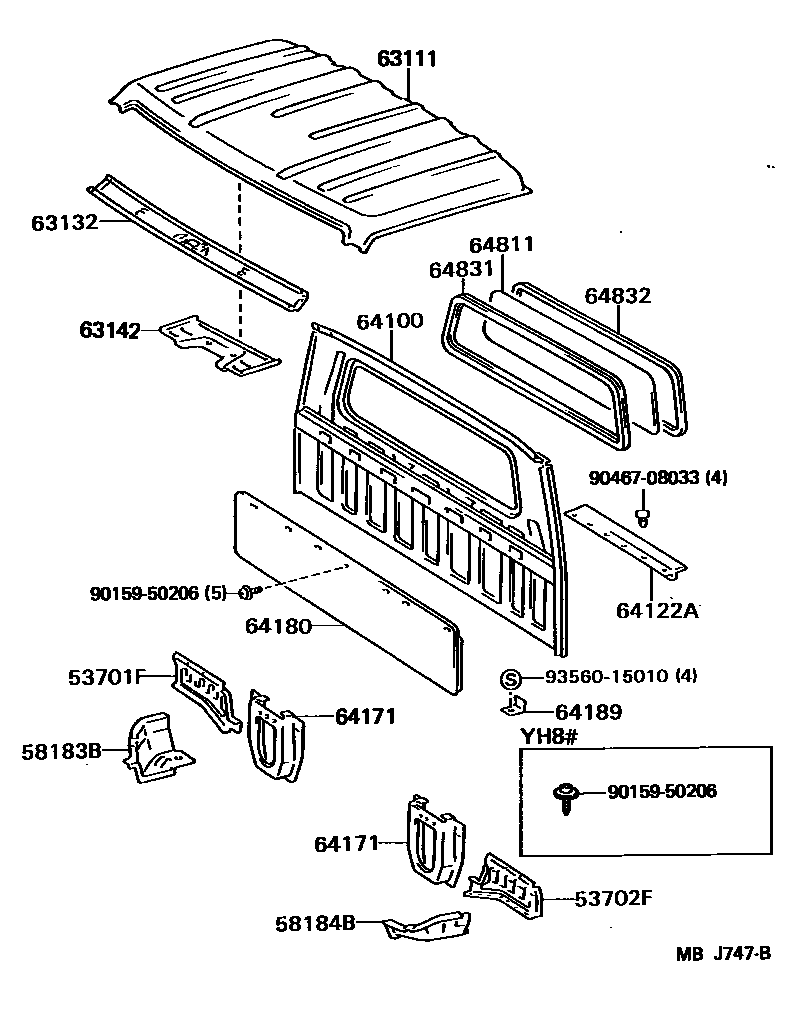

ROOF PANEL & BACK PANEL

0001 1 0002 1

53701FAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53717-95A03iLH80,YH8#..T3¥3,510198508-198708

main53717-95A04iLH80,YH8#..TW¥3,480198508-198708

53702FAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53718-95A02iLH80,YH8#..T3¥3,510198508-198708

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95402iLH80,YH8#¥4,130198508-198708

sub58183-95405¥4,120

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95401iLH80,YH8#¥4,130198508-198708

sub58184-95404¥4,120

63111PANEL, ROOF

main63111-95409iLH80,YH8#..T3¥30,700198508-198708

sub63111-37010¥30,500

sub63141-37010¥6,100

main63111-95410iLH80,YH8#..T3¥30,700198508-198708

W/ROOF VENTILATOR

sub63111-37020¥30,500

sub63141-37010¥6,100

main63111-95A05iLH80,YH8#..TW¥60,100198508-198708

main63115-92604iLH80,YH8#..TW¥64,800198508-198708

W/ROOF VENTILATOR

63132PANEL, WINDSHIELD HEADER, INNER

main63132-95417iLH80,YH80..RHD..GEN¥6,800198508-198601

sub63132-95418¥6,600

sub90950-06047¥260

main63132-95418iLH80,YH8#¥6,600198601-198708

sub63132-37010¥6,700

main63132-95418iLH80,YH8#¥6,600198508-198601

W/SUN VISOR=ASSISTANT SIDE

sub63132-37010¥6,700

main63132-95419iLH80,YH80..RHD..GEN198508-198601

W/*RV

sub63132-95420¥6,600

sub90950-06047¥260

main63132-95420iLH80,YH8#¥6,600198601-198708

W/*RV

sub63132-37010¥6,700

main63132-95420iLH80,YH8#¥6,600198508-198601

W/SUN VISOR=ASSISTANT & *RV

sub63132-37010¥6,700

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLH80,YH8#..T3¥4,390198508-198708

64100PANEL ASSY, BACK, OUTER

main64100-95A00iLH80,YH8#..RHD..T3¥49,100198508-198708

W/HEADREST

sub64100-26030¥49,000

main64100-95A01iLH80,YH8#..RHD..T3¥49,100198508-198708

sub64100-26040¥49,000

main64100-95A03iLH80,YH8#..LHD..T3¥49,100198508-198708

sub64100-26050¥49,000

main64100-95A04iLH80,YH8#..LHD..T3¥49,100198508-198708

W/HEADREST

sub64100-26060¥49,000

main64101-95A09iLH80,YH8#..TW¥39,800198508-198708

64122ABAFFLE, DUST REAR BODY

main64122-95A03iLH80,YH8#..T3¥1,610198508-198708

main64122-95A06iLH80,YH8#..TW¥1,400198508-198708

64171BRACKET, CAB REAR MOUNTING

main64171-95408iLH80,YH8#..T3¥9,100198508-198708

main64171-95410iLH80,YH8#..TW¥9,200198508-198708

64180SILENCER ASSY, BACK PANEL

main64190-95012iLH80..RHD¥8,500198508-198708

main64190-95013iLH80..LHD..T3¥8,500198508-198708

64189CLAMP, BACK PANEL SILENCER

main64189-95400iLH80..T3¥310198508-198708

64811GLASS, BACK WINDOW

main64811-95409iLH80,YH8#..T3¥15,600198508-198708

*TEM,T=3.5,*TEM,T=3.5

main64811-95410iLH80,YH8#..TW¥7,900198508-198708

*TEM,T=3.5,*TEM,T=3.5

sub64811-37080¥19,700

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iLH80,YH8#..T3¥1,940198508-198708

main64831-95016iLH80,YH8#..TW¥1,960198508-198708

sub64831-37050¥4,930

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iLH80,YH8#..T3¥1,080198508-198708

sub64832-95013¥1,030

main64832-95013iLH80,YH8#..TW¥1,030198508-198708

sub64832-37040¥710

9015950206

main90159-50206¥120

9046708033

main90467-08033¥50

9356015010

main93560-15010¥80

18 parts on this diagram · 2 diagrams in section
