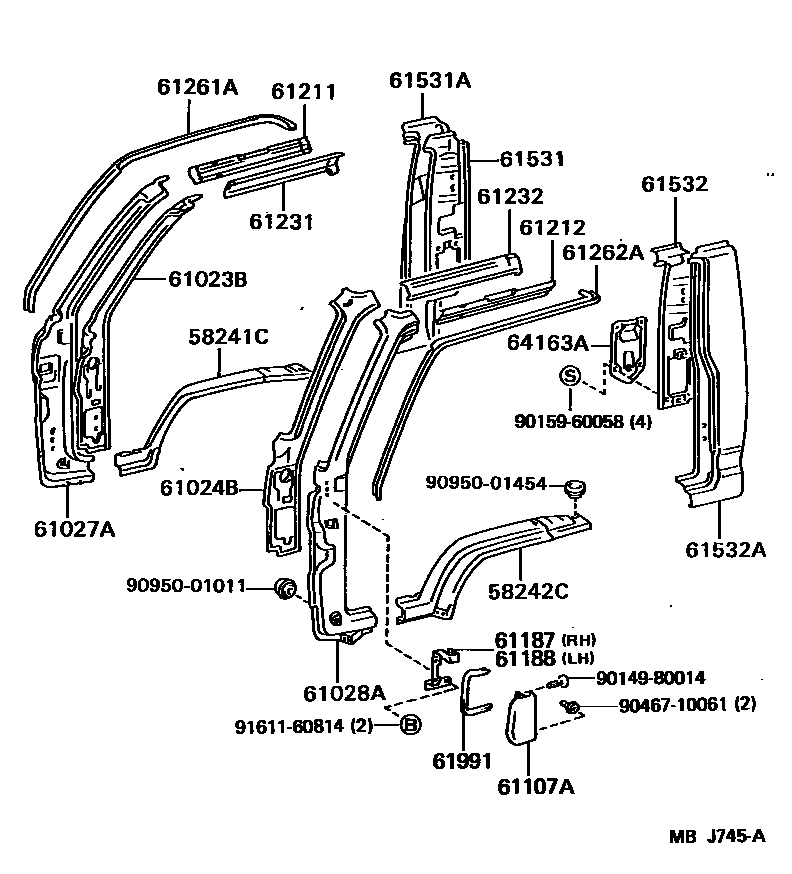

SIDE MEMBER

0001 1 0002 1

58241CPANEL, FLOOR SIDE, RH

main58011-95011iLH80,YH8#..T3198508-198708

sub58011-25010

main58241-92603iLH80,YH8#..TW198508-198708

sub58241-37020

58242CPANEL, FLOOR SIDE, LH

main58012-95012iLH80,YH8#..T3198508-198708

main58242-92603iLH80,YH8#..TW198508-198708

sub58242-37030

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLH80,YH8#..RHD198508-198708

main61023-95401iLH80,YH8#..LHD198508-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iLH80,YH8#..RHD198508-198708

sub61024-95403

main61024-95401iLH80,YH8#..LHD198508-198708

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iLH80,YH8#..RHD198508-198708

W/RADIO

sub61027-37010

main61027-95401iLH80,YH8#198508-198708

sub61027-37020

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iLH80,YH8#..ARL,GEN198508-198708

sub61028-37030

main61028-95401iLH80,YH8#..LHD198508-198708

W/RADIO

sub61028-37040

61107ACOVER SUB-ASSY, FRONT PILLAR DOOR HINGE

main61107-95415iYH81;LH80..EUR;LH80,YH80..RHD198508-198708

RH

main61108-95416iLH80,YH81..ARL..IV198508-198708

LH

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iYH81;LH80..EUR;LH80,YH80..RHD198508-198708

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iLH80,YH81..ARL..IV198508-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLH80,YH8#198508-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLH80,YH8#198508-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-92600iLH80,YH8#..LHD..TW198508-198708

main61231-92601iYH8#..RHD..TW198508-198708

main61231-95405iLH80,YH8#..RHD..T3198508-198708

main61231-95406iLH80,YH8#..LHD..T3198508-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-92600iYH8#..RHD..TW198508-198708

sub61232-37030

main61232-92601iLH80,YH8#..LHD..TW198508-198708

main61232-95405iLH80,YH8#..LHD..T3198508-198708

main61232-95406iLH80,YH8#..RHD..T3198508-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61261-92601iLH80,YH8#..TW198508-198609

main61261-95404iLH80,YH8#..T3198508-198609

main61261-95406iLH80..RHD198609-198708

IRELAND SPEC

sub61261-95407

sub61267-95400

main61261-95A04iLH80,YH81..TW..EUR198609-198708

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61262-92601iLH80,YH8#..TW198508-198609

main61262-95404iLH80,YH8#..T3198508-198609

main61262-95406iLH80..RHD198609-198708

IRELAND SPEC

sub61262-95407

sub61268-95400

main61262-95A04iLH80,YH81..TW..EUR198609-198708

61531PANEL, BACK CORNER, INNER RH

main64015-95400iLH80,YH80..T3..GEN198508-198708

sub64015-95411

main64015-95401iLH80,YH81..T3..(ARL,EUR)198508-198708

IRELAND SPEC

sub64015-95411

61531APANEL, BACK CORNER, OUTER RH

main64103-95401iLH80,YH80..T3..GEN198508-198708

main64103-95403iLH80,YH81..T3..(ARL,EUR)198508-198708

IRELAND SPEC

61532PANEL, BACK CORNER, INNER LH

main64016-95400iLH80,YH80..T3..GEN198508-198708

sub64016-95404

main64016-95401iLH80,YH81..T3..(ARL,EUR)198508-198708

IRELAND SPEC

sub64016-95415

61532APANEL, BACK CORNER, OUTER LH

main64104-95401iLH80,YH80..T3..GEN198508-198708

main64104-95403iLH80,YH81..T3..(ARL,EUR)198508-198708

IRELAND SPEC

61991PROTECTOR, FRONT PILLAR DOOR HINGE

main61991-95400iYH81;LH80..EUR;LH80,YH80..RHD198508-198708

RH

sub61991-37010

main61992-95400iLH80,YH81..ARL..IV198508-198708

LH

sub61992-37010

64163ACOVER, BACK CORNER, INNER

main64163-95403iLH80,YH80..GEN198508-198708

W/O FR SEAT BELT

main64163-95404×2iLH80,YH81..ARL,EUR198508-198708

IRELAND SPEC

9014980014

main90149-80014

9015960058

main90159-60058

9046710061

main90467-10061

9095001011

main90950-01011

9095001454

main90950-01454

9161160814

main91611-60814

27 parts on this diagram · 2 diagrams in section
