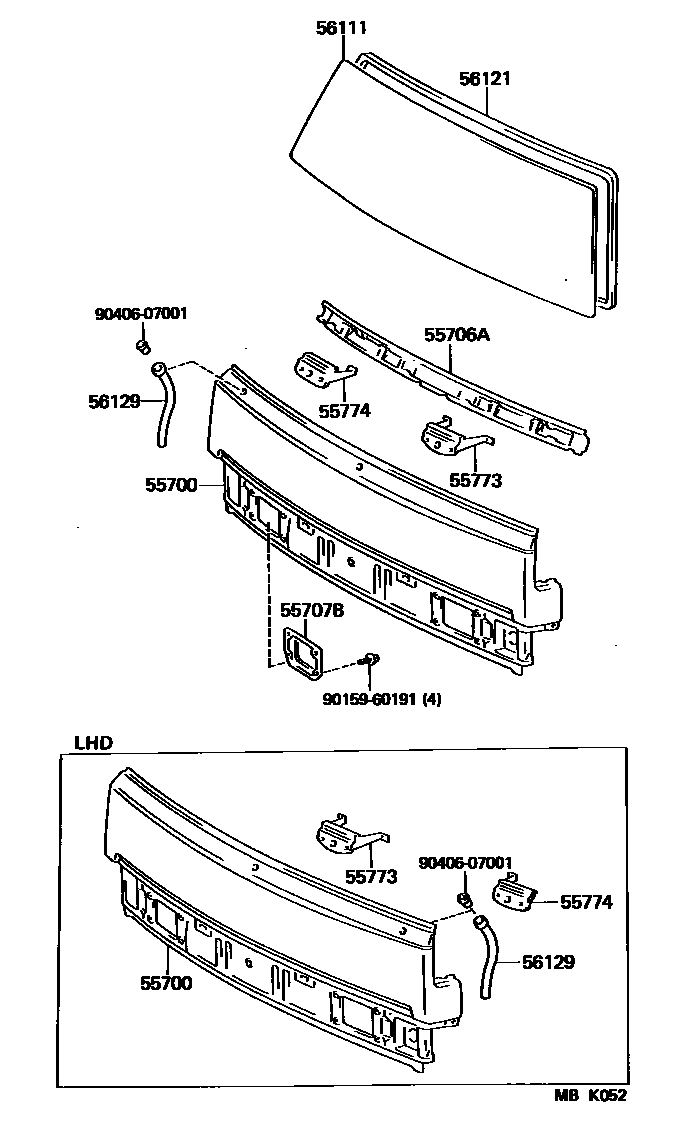

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95A35iLH80,YH8#..LHD198508-198708

sub55701-95A40

main55701-95A36iLH80,YH8#..RHD198508-198708

sub55701-95A37

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iLH80,YH8#..RHD198508-198708

main55706-95406iLH80,YH8#..LHD198508-198708

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95403iLH80,YH8#198508-198708

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iLH80,YH8#198508-198708

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iLH80,YH8#..RHD198508-198708

main55774-95403iLH80,YH8#..LHD198508-198708

56111GLASS, WINDSHIELD

main56111-95415iLH80,YH8#..EUR,GEN198508-198708

*ZT,T=5.0,*ZT,T=5.0

sub56111-95416

main56111-95416iLH80,YH8#198508-198708

*LAM,T=5.3,*LAM,T=5.3

sub56111-95417

main56111-95417iLH80,YH80..GEN198508-198708

*LAM,T=5.3,*LAM,T=5.3,W/SUN SHADE

56121WEATHERSTRIP, WINDSHIELD

main56121-95A06iLH80,YH8#198508-198708

56129HOSE, WINDSHIELD DRAIN

main56129-95400iLH80,YH8#198508-198708

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
