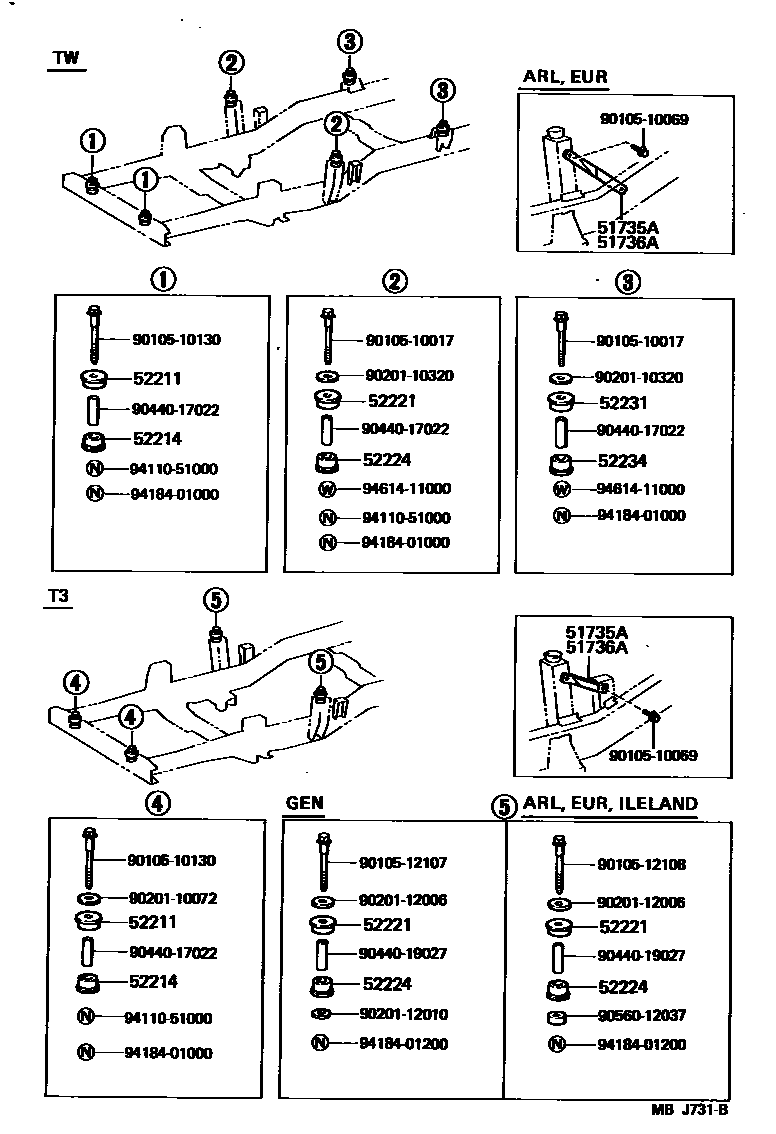

CAB MOUNTING & BODY MOUNTING

51735AREINFORCEMENT, CAB REAR MOUNTING, RH

main51735-26020iLH80,YH8#..T3198508-198708

main51735-26030iLH80,YH81..TW..(ARL,EUR)198508-198708

51736AREINFORCEMENT, CAB REAR MOUNTING, LH

main51736-26020iLH80,YH8#..T3198508-198708

main51736-26030iLH80,YH81..TW..(ARL,EUR)198508-198708

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-26010iLH80,YH8#198508-198708

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-26010iLH80,YH8#198508-198708

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52203-26010iLH80,YH8#..TW198508-198708

main52203-26020iLH80,YH8#..T3198508-198708

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52204-26010iLH80,YH8#..TW198508-198708

sub52204-26011

main52204-26020iLH80,YH8#..T3198508-198708

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52203-26010iLH80,YH8#..TW198508-198708

52234CUSHION, BODY MOUNT, NO.3 LOWER

main52204-26010iLH80,YH8#..TW198508-198708

sub52204-26011

9010510017

main90105-10017

9010510069

main90105-10069

9010510130

main90105-10130

9010512107

main90105-12107

9010512108

main90105-12108

9020110072

main90201-10072

9020110320

main90201-10320

9020112006

main90201-12006

9020112010

main90201-12010

9044017022

main90440-17022

9044019027

main90440-19027

9056012037

main90560-12037

9411051000

main94110-51000

9418401000

main94184-01000

9418401200

main94184-01200

9461411000

main94614-11000

24 parts on this diagram · 1 diagram in section
