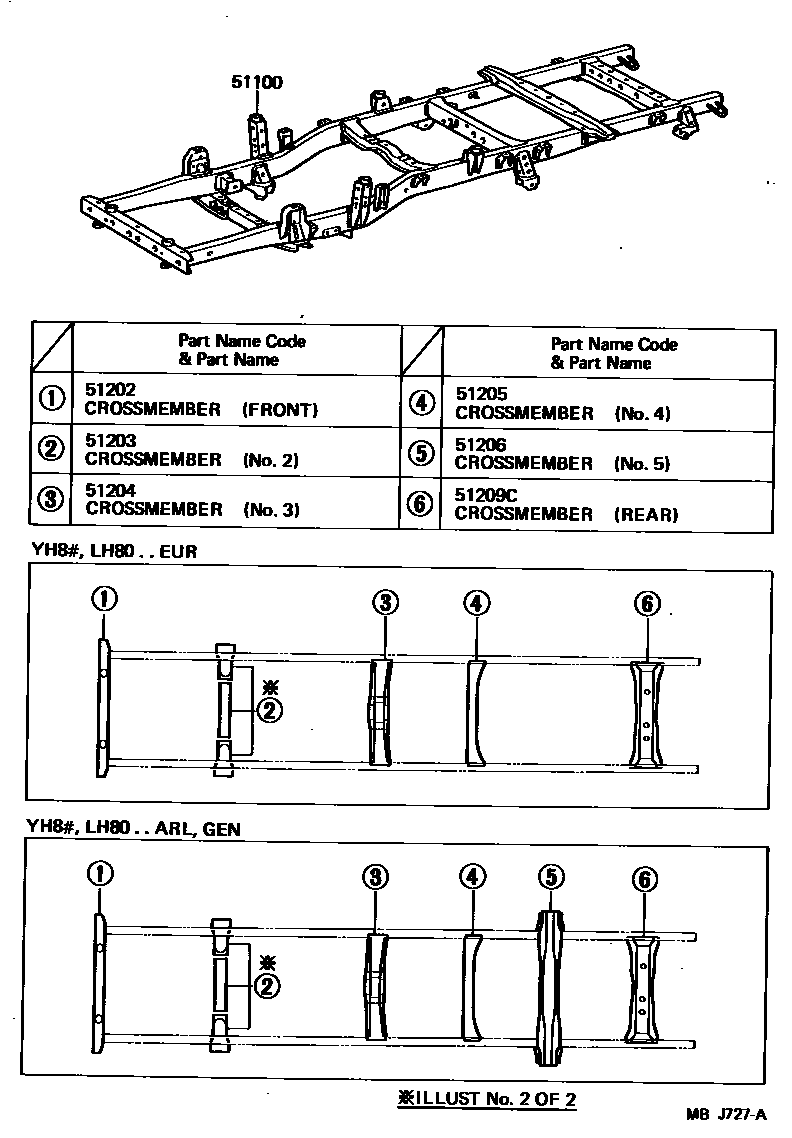

FRAME

0001 1 0002 1

51100FRAME ASSY

main51001-26310iYH81..T3..EUR198508-198708

sub51001-26311

main51001-26320iLH80..T3..EUR198508-198708

sub51001-26321

main51001-26350iYH81..TW..EUR198508-198708

sub51001-26351

main51001-26360iLH80..TW..EUR198508-198708

sub51001-26361

main51001-26410iYH8#..RHD..T3198508-198708

sub51001-26411

main51001-26420iLH80..RHD198508-198708

sub51001-26421

main51001-26430iYH80..LHD..T3198508-198708

sub51001-26431

main51001-26440iLH80..LHD..GEN..IV198508-198708

main51001-26450iYH8#..RHD..TW198508-198708

sub51001-26451

main51001-26460iYH80..LHD..TW198508-198708

sub51001-26461

main51001-26470iLH80..TW..GEN198508-198708

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-26060iLH80,YH8#..RHD198508-198708

sub51201-26061

main51201-26061iLH80,YH8#..RHD198707-198708

sub51201-26062

main51201-26070iLH80,YH8#..LHD198508-198708

sub51201-26071

main51201-26071iLH80,YH8#..LHD198707-198708

sub51201-26072

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51203-26100iYH8#198508-198708

main51203-26110iLH80198508-198708

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-26120iLH80,YH8#198508-198708

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-26020iLH80,YH8#198508-198708

sub51204-26021

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-26060iLH80,YH8#..ARL,GEN198508-198708

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-26030iLH80,YH8#198508-198708

7 parts on this diagram · 2 diagrams in section
