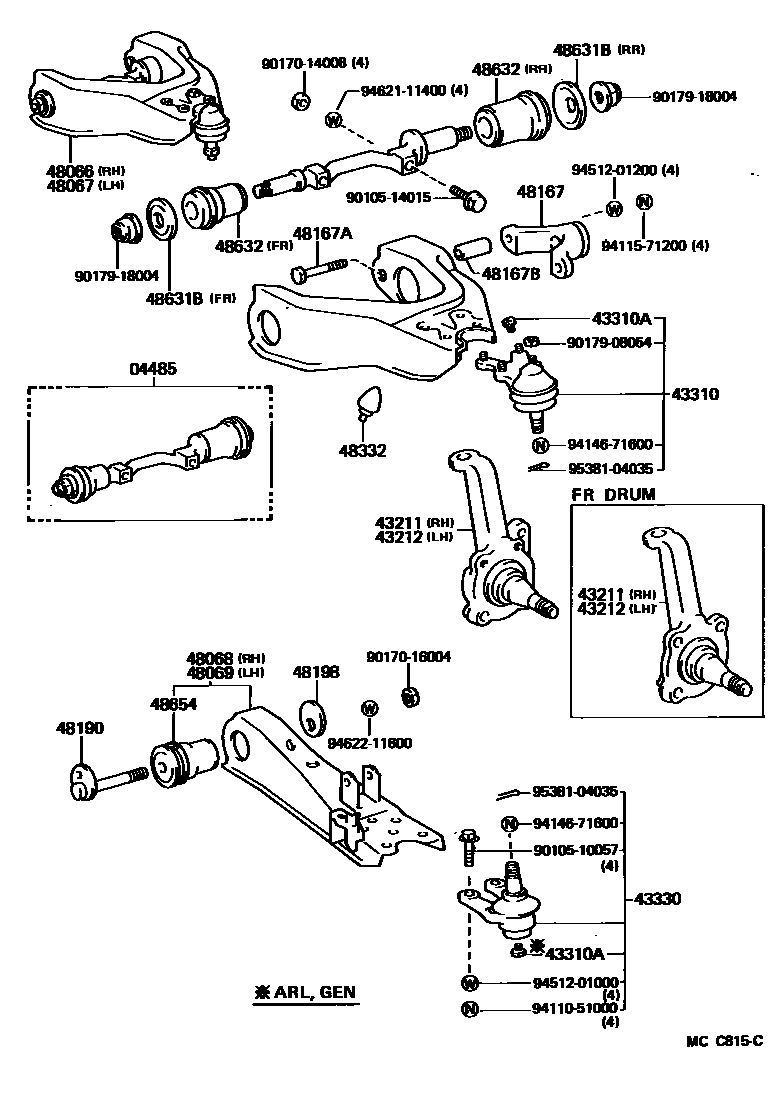

FRONT AXLE ARM & STEERING KNUCKLE

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26040iLH80,YH8#198508-198708

sub04485-26050

43211KNUCKLE, STEERING, RH

main43211-26041iLH80,YH80..GEN198508-198708

FR DRUM BRAKE

main43211-26051iLH80,YH8#198508-198708

FR DISC BRAKE

43212KNUCKLE, STEERING, LH

main43211-26041iLH80,YH80..GEN198508-198708

FR DRUM BRAKE

main43212-26021iLH80,YH8#198508-198708

FR DISC BRAKE

43310JOINT ASSY, UPPER BALL

main43350-29055iLH80,YH8#198508-198703

RH

sub43350-29056

main43350-29056iLH80,YH8#198703-198708

RH

main43360-29075iLH80,YH8#198508-198703

LH

sub43360-29076

main43360-29076iLH80,YH8#198703-198708

LH

sub43350-29056

43310APLUG (FOR BALL JOINT)

main90345-06014iLH80,YH8#198508-198608

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29125iLH80,YH8#..ARL,GEN198508-198608

RH

sub43330-29155

main43330-29155iLH80,YH8#198508-198708

RH & LH

sub43330-29535

main43330-29155iLH80..T3..GEN..CBU198508-198708

RH & LH IRELAND SPEC

sub43330-29535

main43340-29105iLH80,YH8#..ARL,GEN198508-198608

LH

sub43330-29155

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48610-26030iLH80,YH81..EUR198508-198708

sub48610-26031

main48610-26040iLH80,YH8#..ARL,GEN198508-198708

sub48610-26041

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48630-26030iLH80,YH81..EUR198508-198708

sub48630-26031

main48630-26040iLH80,YH8#..ARL,GEN198508-198708

sub48630-26041

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26021iLH80,YH8#198508-198708

sub48068-26022

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26021iLH80,YH8#198508-198708

sub48069-26022

48167ARM, TORQUE

main48106-26011iLH80,YH8#198508-198708

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-12131iLH80,YH8#198611-198708

main91171-71285iLH80,YH8#198508-198611

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-20010iLH80,YH8#198508-198708

48190CAM ASSY, CAMBER ADJUST

main48190-26010iLH80,YH8#198508-198708

sub48190-26020

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLH80,YH8#198508-198708

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iLH80,YH8#198508-198708

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02065iLH80,YH8#198508-198708

RR

main90948-02066iLH80,YH8#198508-198708

FR

sub90948-02142

48632BUSH, UPPER ARM

main48632-26010iLH80,YH8#198508-198708

FR

main48635-26010iLH80,YH8#198508-198708

RR

48654BUSH, LOWER ARM

main48061-26010iLH80,YH8#198508-198708

9010510057

main90105-10057

9010514015

main90105-14015

9017014008

main90170-14008

9017016004

main90170-16004

9017908054

main90179-08054

9017918004

main90179-18004

9411051000

main94110-51000

9411571200

main94115-71200

9414671600

main94146-71600

9451201000

main94512-01000

9451201200

main94512-01200

9462111400

main94621-11400

9462211600

main94622-11600

9538104035

main95381-04035

33 parts on this diagram · 1 diagram in section
