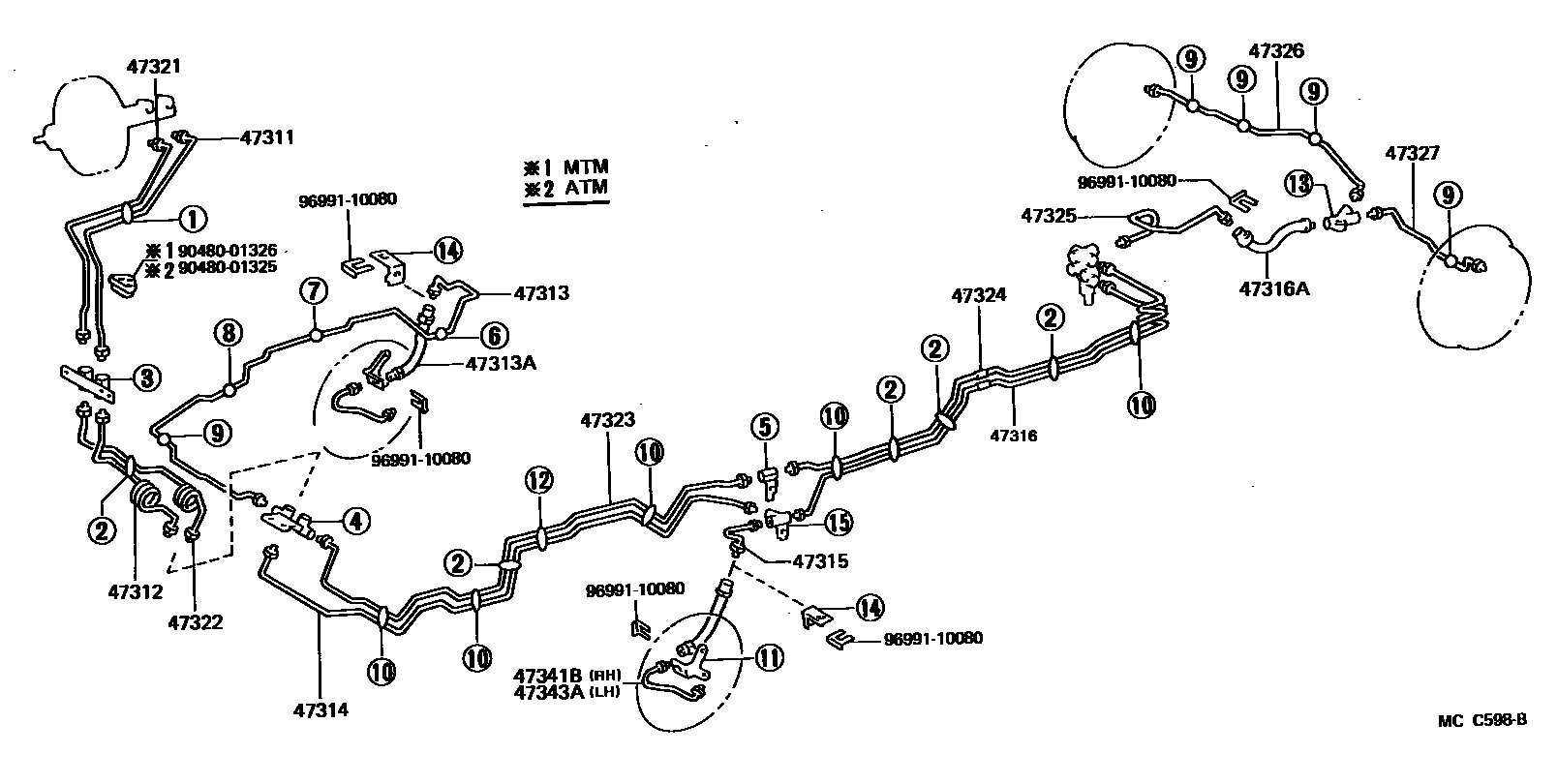

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47314TUBE, FRONT BRAKE, NO.4
IRELAND SPEC
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
IRELAND SPEC
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
FR DISC BRAKE
FR DRUM BRAKE
47325TUBE, REAR BRAKE, NO.5
FR DISC BRAKE
FR DRUM BRAKE
47326TUBE, REAR BRAKE, NO.6
IRELAND SPEC
47327TUBE, REAR BRAKE, NO.7
IRELAND SPEC
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
FR DISC BRAKE
FR DRUM BRAKE
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
FR DISC BRAKE
FR DRUM BRAKE
9048001325
main90480-01325
9048001326
main90480-01326
9699110080
main96991-10080
20 parts on this diagram · 5 diagrams in section
