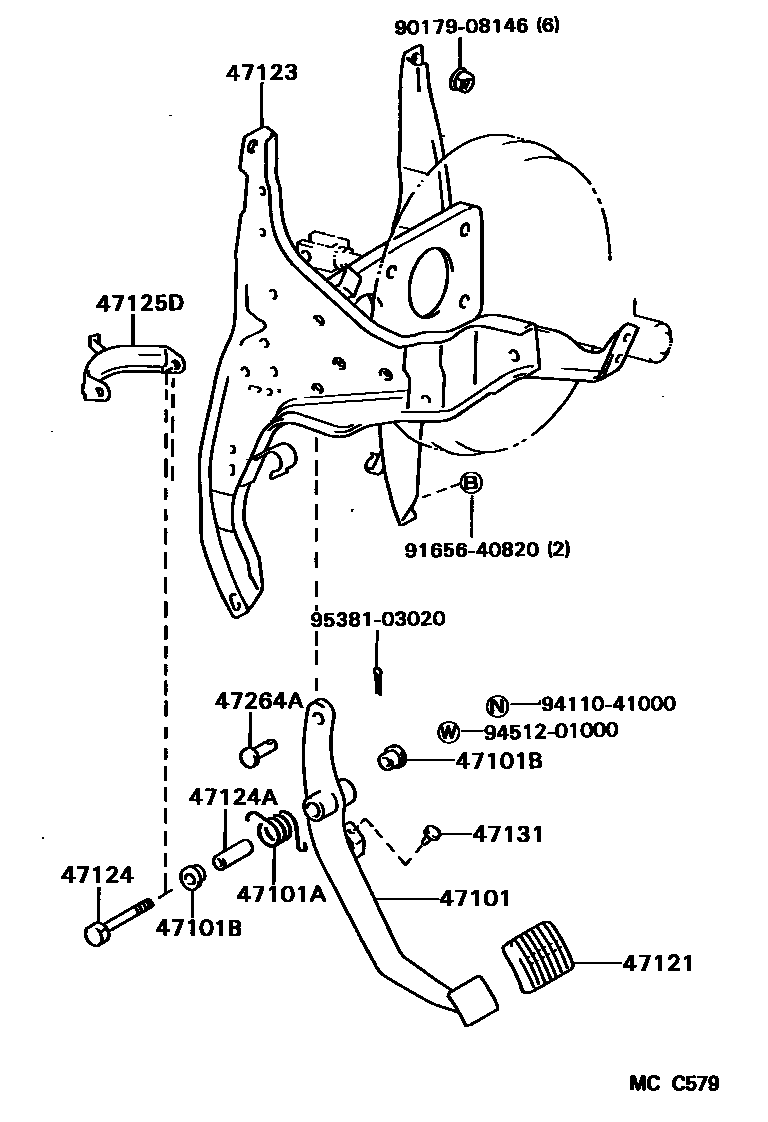

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-26060iLH80,YH8#198508-198708

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iLH80,YH8#198508-198708

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLH80,YH8#198508-198708

47121PAD, BRAKE PEDAL

main31321-14020iLH80,YH8#198508-198708

47123BRACKET, BRAKE PEDAL

main55150-95400iLH80,YH8#..RHD198508-198708

main55150-95401iLH80,YH8#..LHD198508-198708

47124SHAFT, BRAKE PEDAL

main91121-51070iLH80,YH8#198508-198708

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iLH80,YH8#198508-198708

47125DSTAY, BRAKE PEDAL BRACKET

main55159-95401iLH80,YH8#198508-198708

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLH80,YH8#198508-198708

47264APIN(FOR PUSH ROD)

main90240-10015iLH80,YH8#198508-198708

9017908146

main90179-08146

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

15 parts on this diagram · 1 diagram in section
