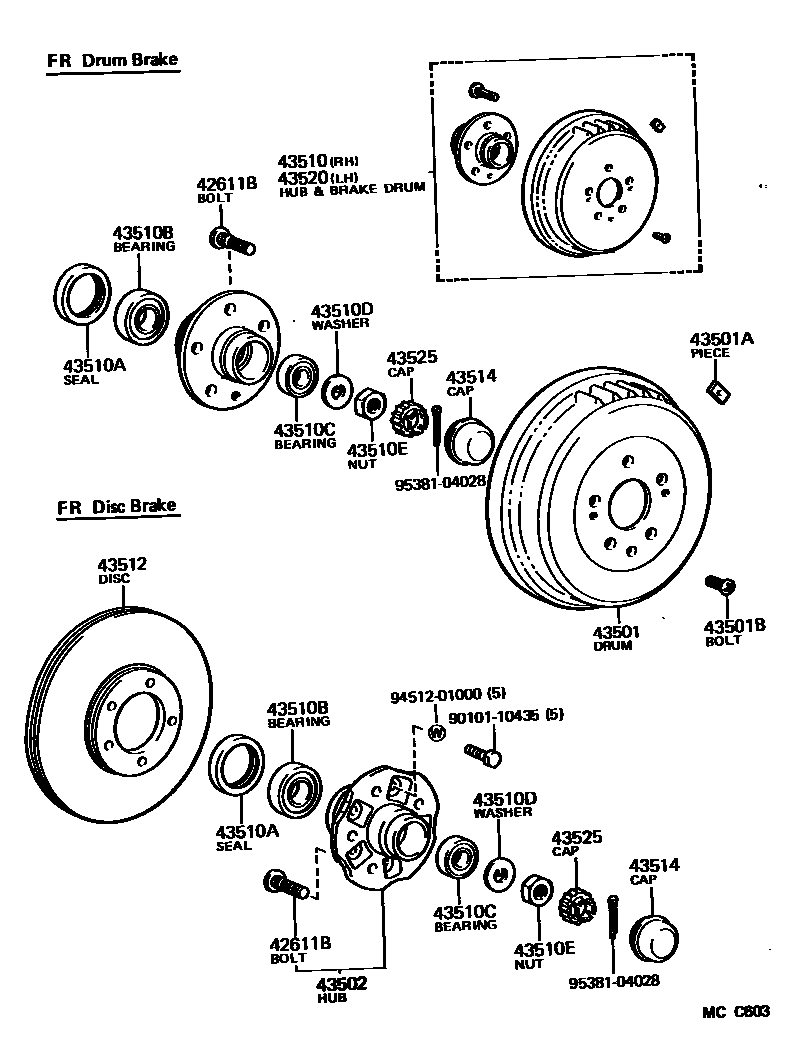

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iLH80,YH8#198508-198708

FR DISC BRAKE

sub90942-02047

main90942-02052iLH80,YH80..GEN198508-198708

FR DRUM BRAKE

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-26050iLH80,YH80..GEN198508-198708

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLH80,YH80..GEN198508-198708

40.5G,40.5G

main90937-01117iLH80,YH80..GEN198508-198708

10G,10G

main90937-01118iLH80,YH80..GEN198508-198708

20G,20G

main90937-01119iLH80,YH80..GEN198508-198708

30G,30G

main90937-01146iLH80,YH80..GEN198508-198708

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iLH80,YH80..GEN198508-198708

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iLH80,YH8#198508-198708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26060iLH80,YH80..GEN198508-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLH80,YH8#198508-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLH80,YH8#198508-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLH80,YH8#198508-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLH80,YH8#198508-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH80,YH8#198508-198708

43512DISC, FRONT

main43512-26040iLH80,YH8#198508-198708

sub43512-26070

43514CAP, FRONT HUB GREASE

main43514-35010iLH80,YH8#198508-198708

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26060iLH80,YH80..GEN198508-198708

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLH80,YH8#198508-198708

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 1 diagram in section
