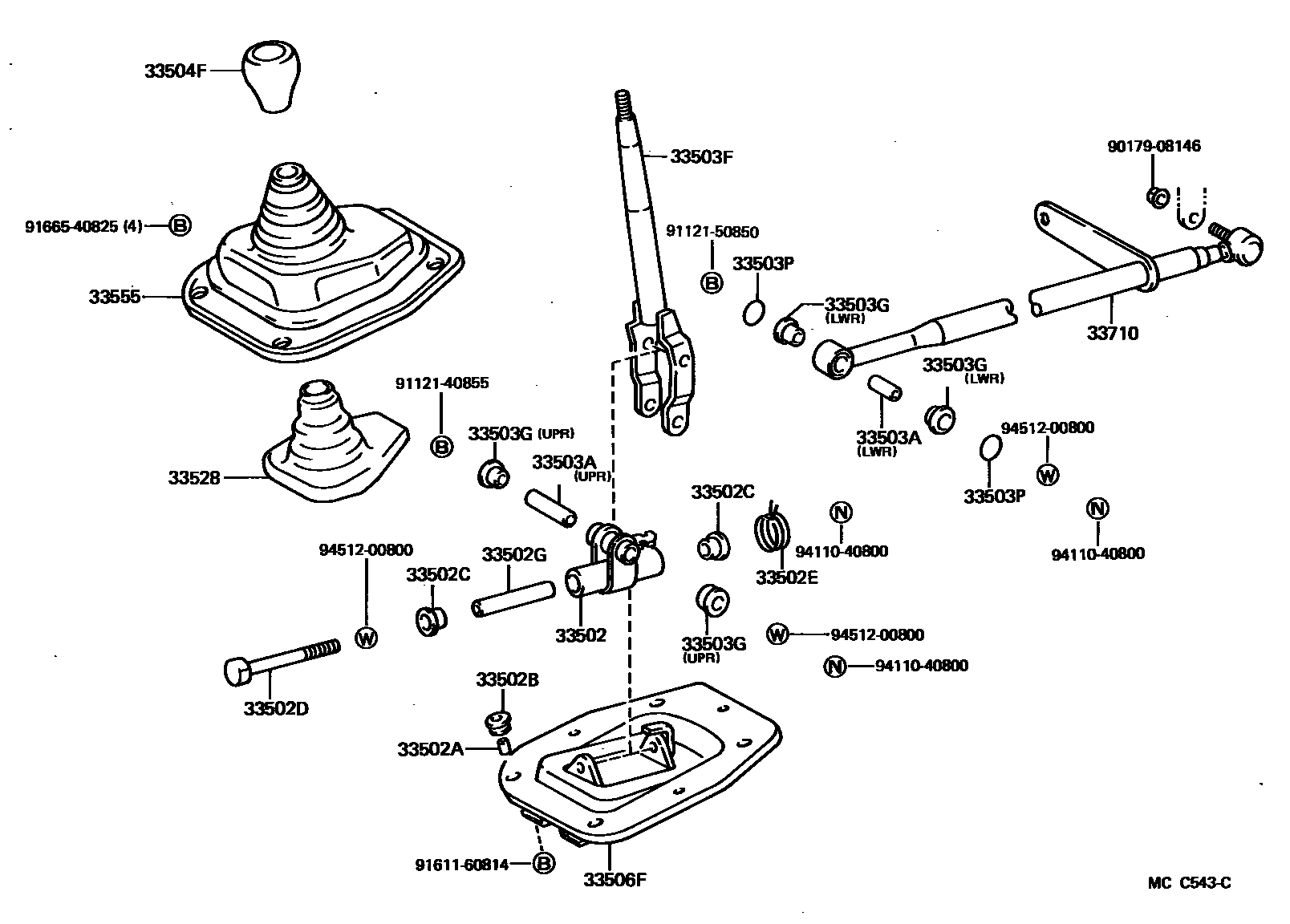

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-25010iLH80,YH8#..5F198508-198708

main33502-26020iLH80..4FC198508-198708

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-10081iLH80,YH8#..5F198508-198708

OD=13.8

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-17018iLH80,YH8#..5F198508-198708

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13192iLH80,YH8#..5F198508-198708

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08107iLH80,YH8#..5F198508-198708

33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)

main90508-23094iLH80,YH8#..5F198508-198708

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLH80,YH8#..5F198508-198708

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLH80,YH8#..5F198508-198708

UPR

main90387-08065iLH80,YH8#..5F198508-198708

LWR

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-25010iLH80,YH8#..RHD..5F198508-198708

main33503-25020iLH80,YH8#..LHD198508-198708

sub33503-25010

main33503-25030iYH81..T3..CBU;LH80..EUR..CBU198508-198708

NORWY SPEC

sub33503-25031

33503GBUSH(FOR SHIFT LEVER)

main90386-13192iLH80,YH8#..5F198508-198708

UPR

main90389-11002iLH80,YH8#..5F198508-198708

LWR

33503PRING, O(FOR SHIFT LEVER)

main96711-24018iLH80,YH8#..5F198508-198708

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-01iLH80,YH8#..5F198508-198708

BLACK,BLACK

sub33504-24010

main33504-24010-44iLH80,YH8#..5F198508-198708

BLUE,BLUE

sub33504-24010

main33542-17010-01iLH80..4FC198508-198708

BLACK,BLACK

sub33542-17010

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-25010iLH80,YH8#..RHD..5F198508-198708

main33506-25020iLH80,YH8#..LHD198508-198708

33528COVER, CONTROL SHAFT

main33528-25010iLH80,YH8#..5F198603-198708

33555BOOT, SHIFT LEVER

main33555-25010iLH80,YH8#..5F198508-198708

sub33555-25011

main33555-26010iLH80..4FC198508-198708

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-25140iLH80,YH8#..RHD..5F198508-198707

sub33710-25141

main33710-25141iLH80,YH8#..RHD..5F198707-198708

main33710-25150iLH80,YH8#..LHD198508-198708

9017908146

main90179-08146

9112140855

main91121-40855

9112150850

main91121-50850

9161160814

main91611-60814

9166540825

main91665-40825

9411040800

main94110-40800

9451200800

main94512-00800

23 parts on this diagram · 5 diagrams in section
