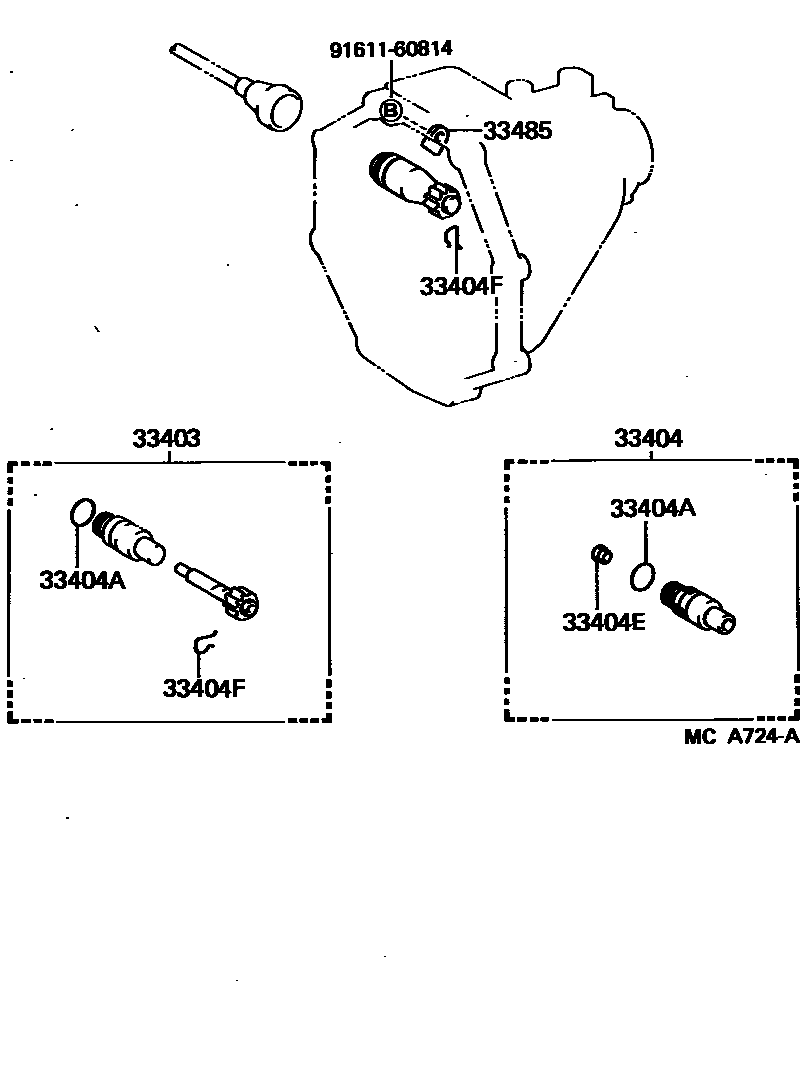

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29045iYH81..ARL198508-198708

N=19,MARK 19:5,N=19

main33482-29055iLH80..GEN198508-198708

N=17,MARK 17:5,N=17

main33482-39045iLH80..EUR198508-198708

N=20,MARK 20:6,N=20

main33482-39085iYH81..EUR198508-198708

N=18,MARK 18:5,N=18

main33482-39095iYH80198508-198708

N=16,MARK 16:4,N=16

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iLH80,YH8#..5F198508-198708

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLH80,YH8#..5F198508-198708

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH80,YH8#..5F198508-198708

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLH80,YH8#..5F198508-198708

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLH80,YH8#..5F198508-198708

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
