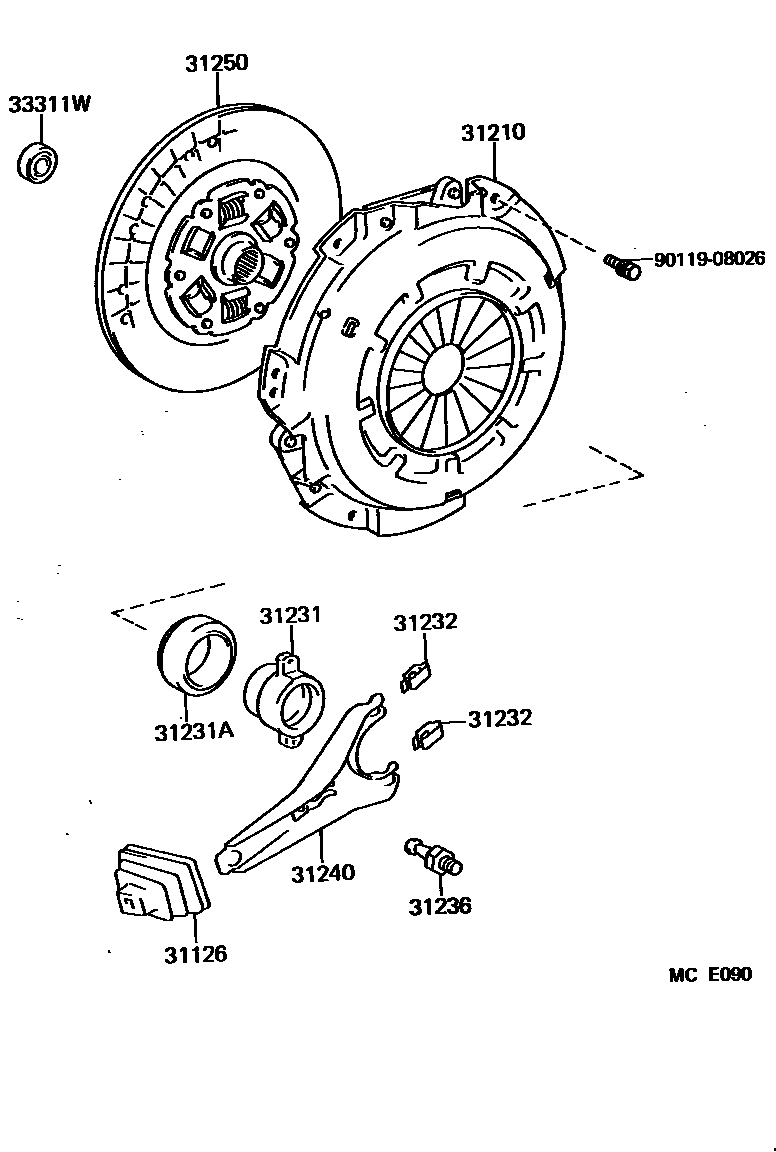

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYH8#198508-198708

main31126-20070iLH80..5F198508-198708

31210COVER ASSY, CLUTCH

main31210-14130iLH80,YH81..5F198508-198708

sub31210-35090

main31210-26030iYH80198508-198702

sub31210-26070

main31210-26070iYH80198702-198708

sub31210-22121

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLH80..5F198508-198708

main31231-36070iYH8#198508-198708

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLH80,YH8#..5F198508-198708

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iLH80,YH8#..5F198508-198708

31236BALL, RELEASE FORK

main31236-30060iLH80,YH8#..5F198508-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-20071iYH8#198508-198708

main31204-20090iLH80..5F198508-198708

31250DISC ASSY, CLUTCH

main31250-25110iLH80..5F198508-198708

sub31250-25111

main31250-25120iYH81198508-198702

sub31250-25121

main31250-25121iYH81198702-198708

sub31250-25122

main31250-35062iYH80198508-198708

sub31250-35063

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH80,YH8#..5F198508-198708

sub90363-12024

9011908026

main90119-08026

10 parts on this diagram · 2 diagrams in section
