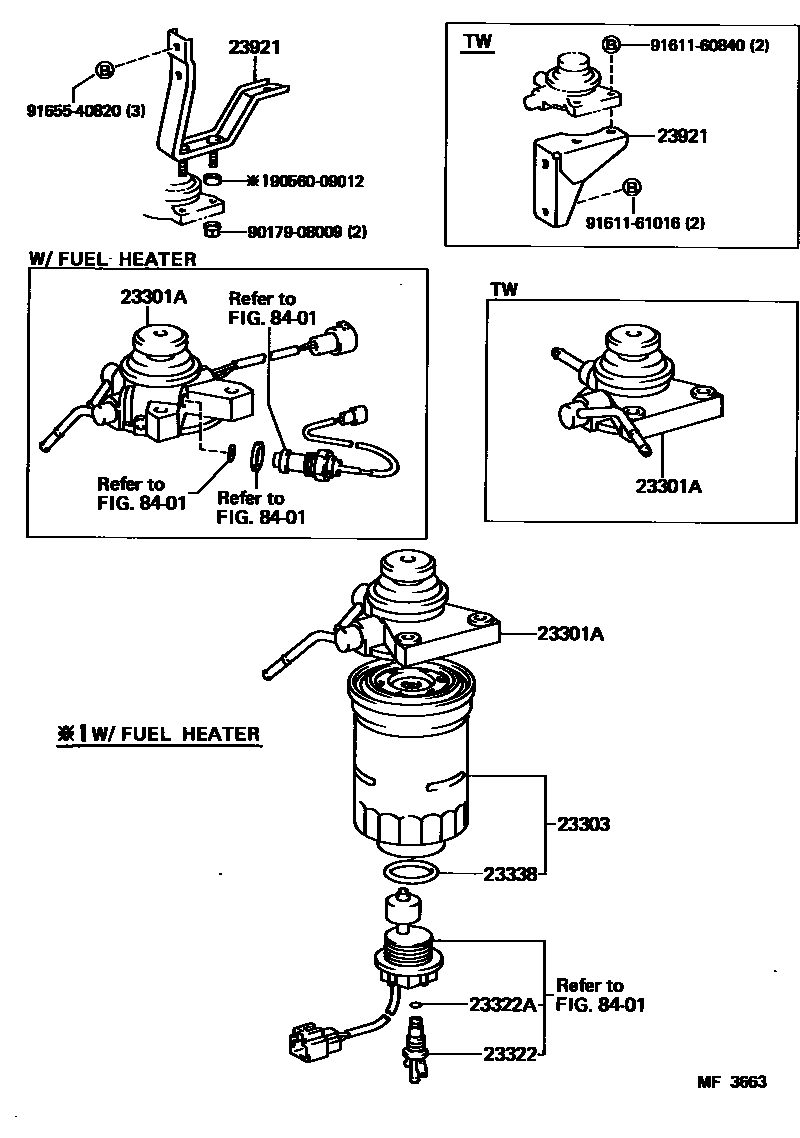

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-54070i2L..LH80..T3198508-198708

main23301-54080i2L..LH80..T3..EUR198508-198708

W/FUEL HEATER

main23301-54090i2L..LH80..TW198508-198708

main23301-54100i2L..LH80..TW..EUR198508-198708

W/FUEL HEATER

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LH80198508-198708

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L..LH80198508-198708

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LH80198508-198708

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L..LH80198508-198708

23921SUPPORT, FUEL FILTER

main23921-54200i2L..LH80..T3198508-198708

main23921-54210i2L..LH80..TW198508-198708

main90929-01123i1Y,2Y..YH8#198508-198708

8401

9017908009

main90179-08009

9056009012

main90560-09012

9161160840

main91611-60840

9161161016

main91611-61016

9165540820

main91655-40820

12 parts on this diagram · 2 diagrams in section
