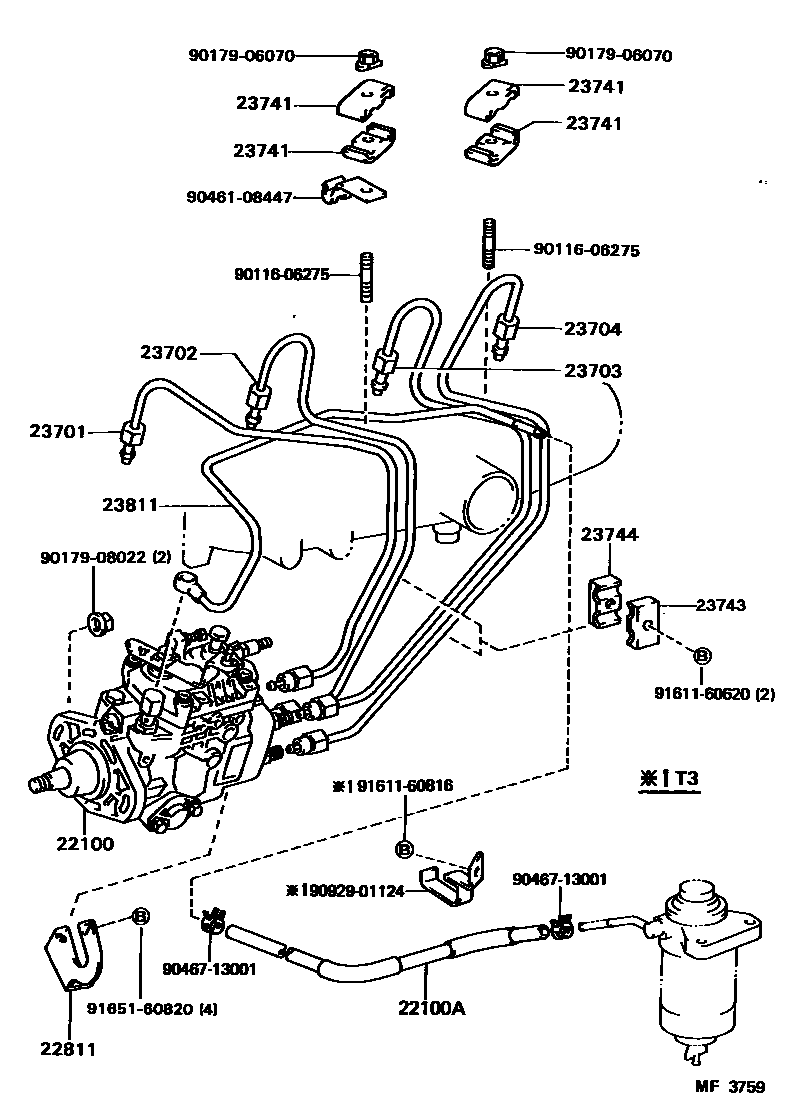

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
sub22100-54340
sub22100-54341
W/TACHO METER
W/TACHO METER
MALAYSIA SPEC
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22811STAY, INJECTION PUMP, NO.1
sub22811-54041
23701PIPE SUB-ASSY, INJECTION, NO.1
sub23701-54072
23702PIPE SUB-ASSY, INJECTION, NO.2
sub23702-54071
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23743CLAMP, INJECTION PIPE, NO.3
23744CLAMP, INJECTION PIPE, NO.4
9011606275
main90116-06275
9017906070
main90179-06070
9017908022
main90179-08022
9046108447
main90461-08447
9046713001
main90467-13001
9092901124
main90929-01124
9161160620
main91611-60620
9161160816
main91611-60816
9165160820
main91651-60820
20 parts on this diagram · 1 diagram in section
