V-BELT

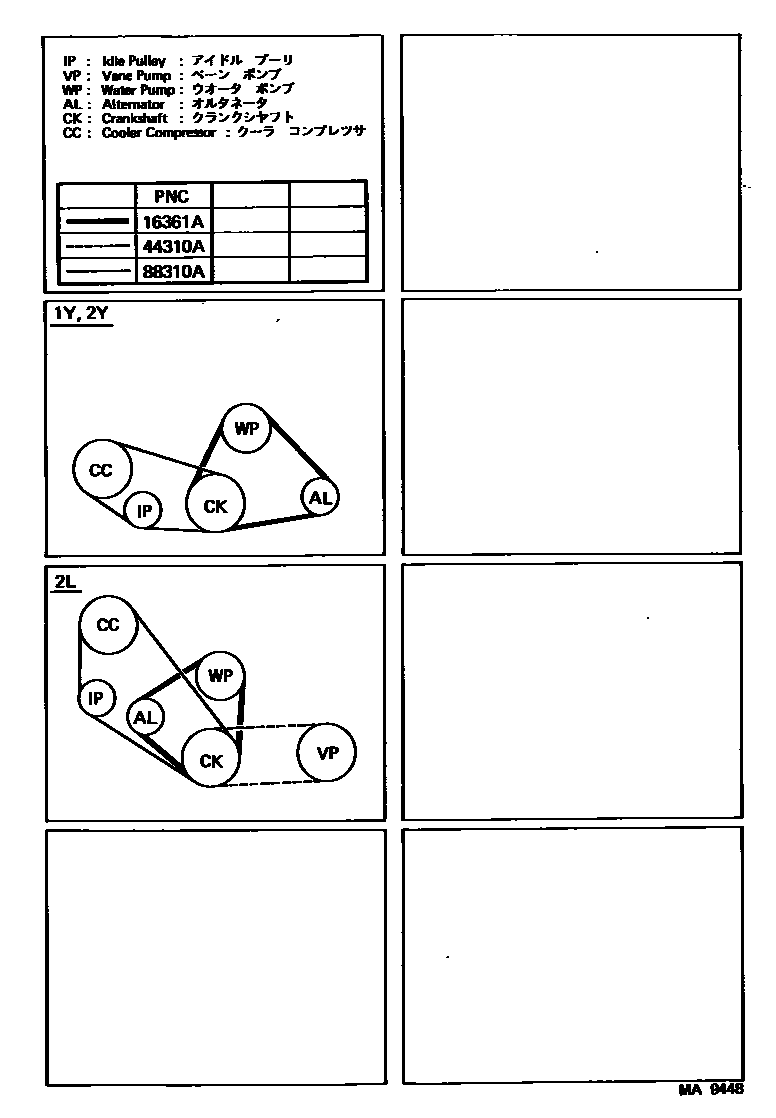

Parts diagram
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02132i198508-198708
DOUBLE V BELTS
sub90916-02281
main99365-50820i198508-198708
sub99365-80820
44310ABELT, V(FOR VANE PUMP)
main99332-00850i198508-198708
L=850
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main99322-00880i198508-198708
sub99332-00880
main99332-01260i198508-198708
L=1260

3 parts on this diagram · 1 diagram in section
