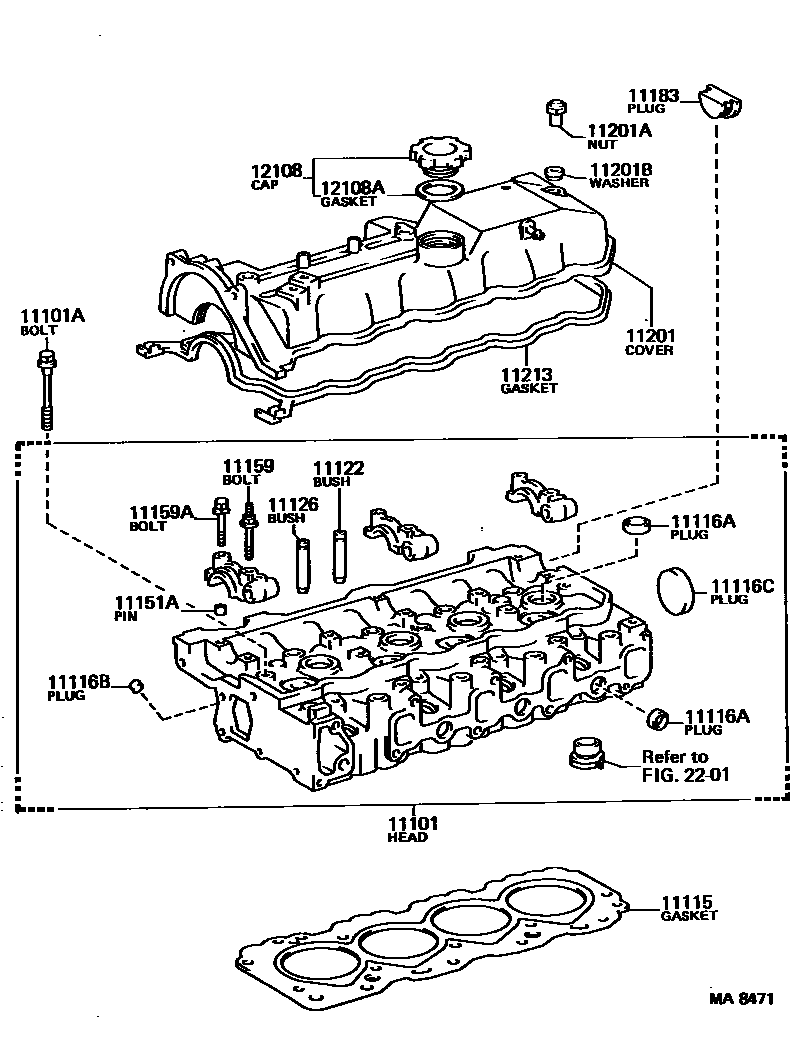

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11116APLUG, TIGHT, NO.1
OD=25
11116BPLUG, TIGHT, NO.2
OD=12
11116CPLUG, TIGHT, NO.3
OD=50
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
STD,STD
O/S 0.05,O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=11,L=11,OD=11
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=76.6,S=13&15
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
*8-1.25PX55-30
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-54080
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
2201
19 parts on this diagram · 2 diagrams in section
