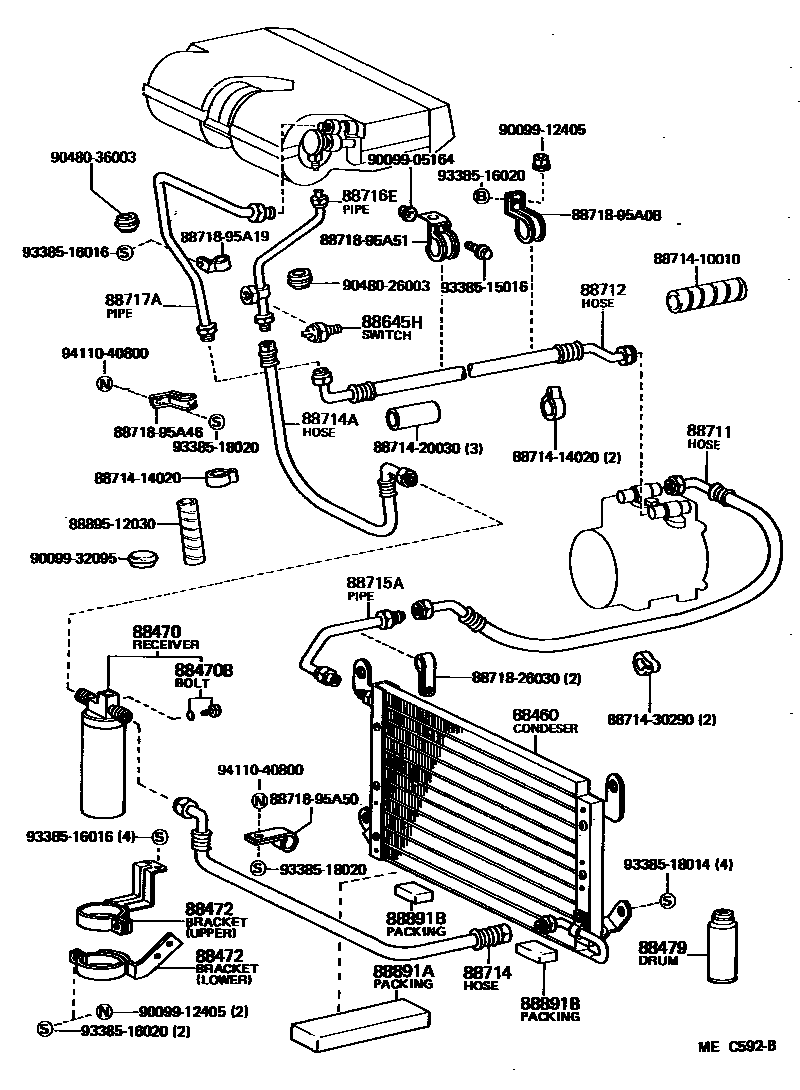

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88460CONDENSER ASSY, COOLER

main88460-95A00iRH11..ARL,GEN198211-198507

main88460-95A03iLH11..RHD..(ARL,GEN,IDN)198211-198507

88470RECEIVER & DRYER ASSY, COOLER

main88470-20070iRH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN)198211-198507

88470BBOLT, FUSE

main90099-04579iRH11..ARL,GEN198211-198507

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-95A01iRH11..RHD..(ARL,GEN)198211-198507

UPR

main88472-95A02iRH11..RHD..(ARL,GEN)198211-198507

LWR

main88472-95A03iRH11..LHD..GEN198211-198507

UPR

main88472-95A04iRH11..LHD..GEN198211-198507

LWR

main88472-95A05iLH11..RHD..(ARL,GEN,IDN)198211-198507

UPR

main88472-95A06iLH11..RHD..(ARL,GEN,IDN)198211-198507

LWR

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iRH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN)198211-198507

400G

sub90986-02004

sub90986-02005

88645HSWITCH, PRESSURE NO.1

main88645-22020iLH11,RH11..RHD..(ARL,GEN,IDN)198211-198507

TOKAIRIKA

sub88645-30250

main88645-30250iRH11..ARL,GEN;LH11..RHD..(ARL,GEN,IDN)198211-198507

FUJIKOKI

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-95A02iRH11..ARL,GEN198211-198507

main88711-95A18iLH11..RHD..(ARL,GEN,IDN)198211-198507

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-95A02iRH11..RHD..(ARL,GEN)198211-198507

main88712-95A04iRH11..LHD..GEN198211-198507

main88712-95A20iLH11..RHD..(ARL,GEN,IDN)198211-198507

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88716-95A23iLH11..RHD..(ARL,GEN,IDN)198211-198507

main88721-95A00iRH11..RHD..(ARL,GEN)198211-198507

main88721-95A01iRH11..LHD..GEN198211-198507

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88716-95A31iLH11..RHD..(ARL,GEN,IDN)198211-198507

main88721-87302iRH11..ARL,GEN198211-198507

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-95A01iRH11..ARL,GEN198211-198507

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-95A25iLH11..RHD..(ARL,GEN,IDN)198211-198507

main88716-95A30iRH11..RHD..(ARL,GEN)198211-198507

main88716-95A42iRH11..LHD..GEN198211-198507

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-95A04iRH11..LHD..GEN198211-198507

main88717-95A13iLH11..RHD..(ARL,GEN,IDN)198211-198507

main88717-95A15iRH11..RHD..(ARL,GEN)198211-198507

88891APACKING A (FOR COOLER)

main88578-95A01iLH11..RHD..(ARL,GEN,IDN)198211-198507

main88578-95A05iRH11..ARL,GEN198211-198507

88891BPACKING B (FOR COOLER)

main88578-95A06iRH11..ARL,GEN198211-198507

8871410010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10010

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871420030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20030

8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-30290

8871826030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26030

8871895A08PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A08

8871895A19PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A19

8871895A46PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A46

8871895A50PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A50

8871895A51PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A51

8889512030HOLDER, FUSE

main88895-12030

9009905164

main90099-05164

9009912405

main90099-12405

9009932095

main90099-32095

9048026003

main90480-26003

9048036003

main90480-36003

9338515016

main93385-15016

9338516016

main93385-16016

9338516020

main93385-16020

9338518014

main93385-18014

9338518020

main93385-18020

9411040800

main94110-40800

37 parts on this diagram · 2 diagrams in section
