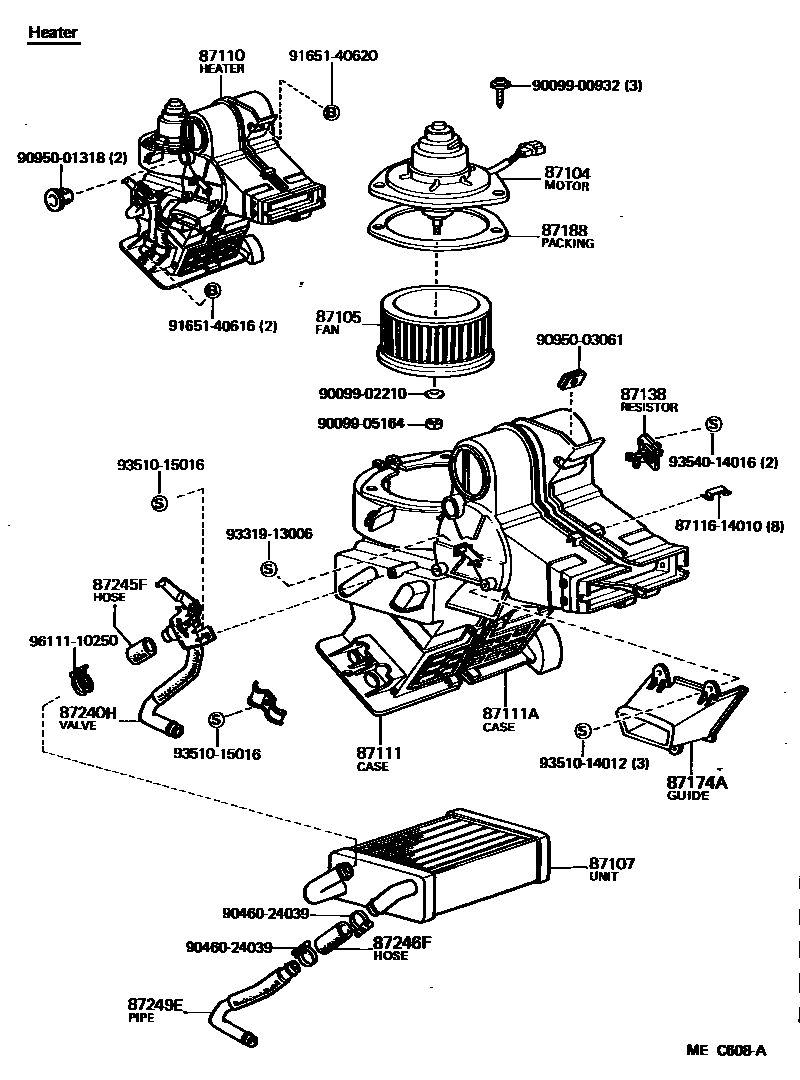

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

main87104-95A01iLH11,RH11..EUR198211-198507

COLD SPEC

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12040iLH11,RH11..GEN198211-198507

W/BOOST VENTILATOR

main87105-20054iLH11,RH11..ARL,EUR,GEN198211-198507

sub87105-22020

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

sub87107-95A01

main87107-95A01iLH11,RH11..EUR198211-198507

87110HEATER ASSY

main87110-95A08iLH11,RH11..ARL,EUR,GEN198211-198507

STD HEATER

sub87110-95A09

main87110-95A09iLH11,RH11..RHD..EUR198211-198507

COLD SPEC

main87110-95A23iLH11,RH11..LHD..EUR198211-198507

COLD SPEC

87111CASE, HEATER

main87111-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

87111ACASE, HEATER

main87111-95A01iLH11,RH11..ARL,EUR,GEN198211-198507

87138RESISTOR, HEATER BLOWER

main87138-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

main87138-95A01iLH11,RH11..EUR198211-198507

COLD SPEC

87174AGUIDE, AIR HEATER

main87174-95A00iLH11,RH11..EUR198211-198507

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iLH11,RH11..ARL,EUR,GEN198211-198507

87240HVALVE ASSY, WATER UNIT

main87240-95A04iLH11,RH11..ARL,EUR,GEN198211-198507

87245FHOSE, HEATER WATER, INLET F

main99552-30100iLH11,RH11..ARL,EUR,GEN198211-198507

*H,L=35

sub99556-30100

87246FHOSE, HEATER WATER, OUTLET F

main99552-30100iLH11,RH11..ARL,EUR,GEN198211-198507

*H,L=35

sub99556-30100

87249EPIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)

main87157-95A00iLH11,RH11..ARL,EUR,GEN198211-198507

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

9009900932

main90099-00932

9009902210

main90099-02210

9009905164

main90099-05164

9046024039

main90460-24039

9095001318

main90950-01318

9095003061

main90950-03061

9165140616

main91651-40616

9165140620

main91651-40620

9331913006

main93319-13006

9351014012

main93510-14012

9351015016

main93510-15016

9354014016

main93540-14016

9611110250

main96111-10250

27 parts on this diagram · 2 diagrams in section
