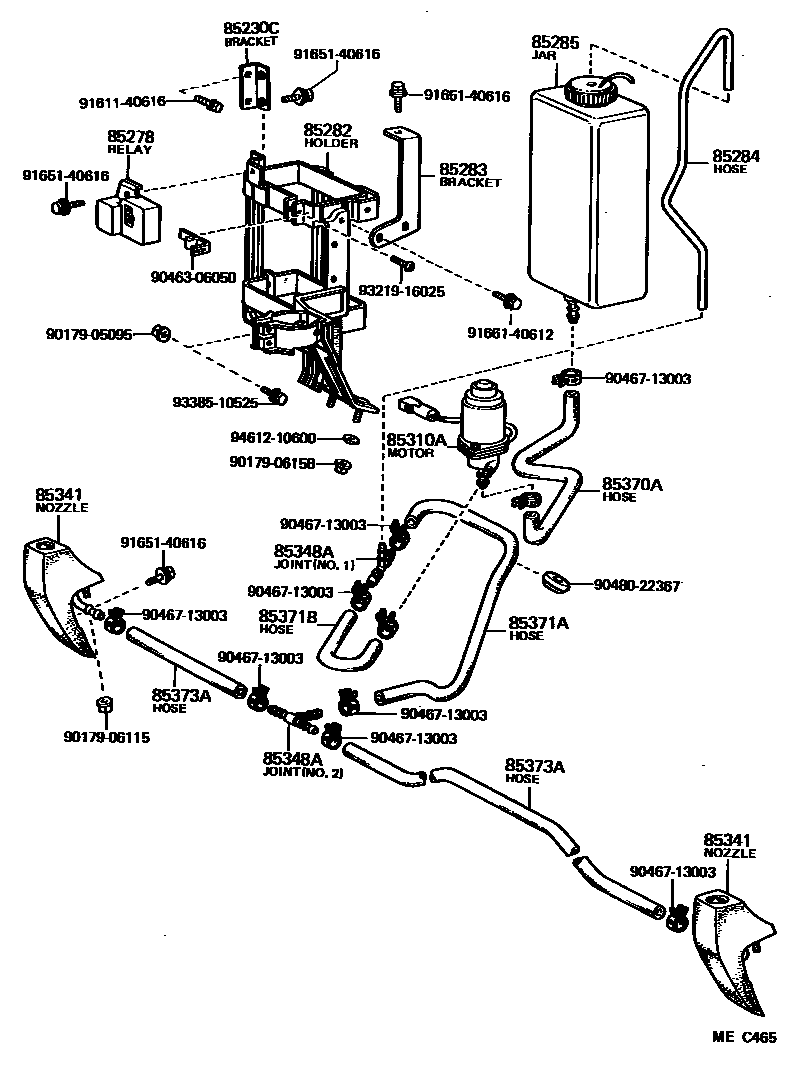

HEADLAMP CLEANER

85230CBRACKET ASSY, HEADLAMP CLEANER

main85361-95A03iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85282HOLDER ASSY, HEADLAMP CLEANER WASHER JAR

main85361-95A06iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-95A09iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main90446-07002iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

sub90446-07004

85285JAR, HEADLAMP CLEANER WASHER

main85330-12060iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-16010iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-95A06iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85031-12010iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

NO.2

main85352-20010iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

NO.1

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

main85343-95A04iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85343-95A08iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)

main85343-95A05iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

sub85271-30020

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85343-95A09iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

RH

main85343-95A10iLH11..LHD..T1..EUR;RH11..LHD..(T1,TW)..EUR198211-198507

LH

sub85375-14400

9017905095

main90179-05095

9017906115

main90179-06115

9017906158

main90179-06158

9046306050

main90463-06050

9046713003

main90467-13003

9048022367

main90480-22367

9161140616

main91611-40616

9165140616

main91651-40616

9166140612

main91661-40612

9321916025

main93219-16025

9338510525

main93385-10525

9461210600

main94612-10600

25 parts on this diagram · 1 diagram in section
