REFLEX REFLECTOR

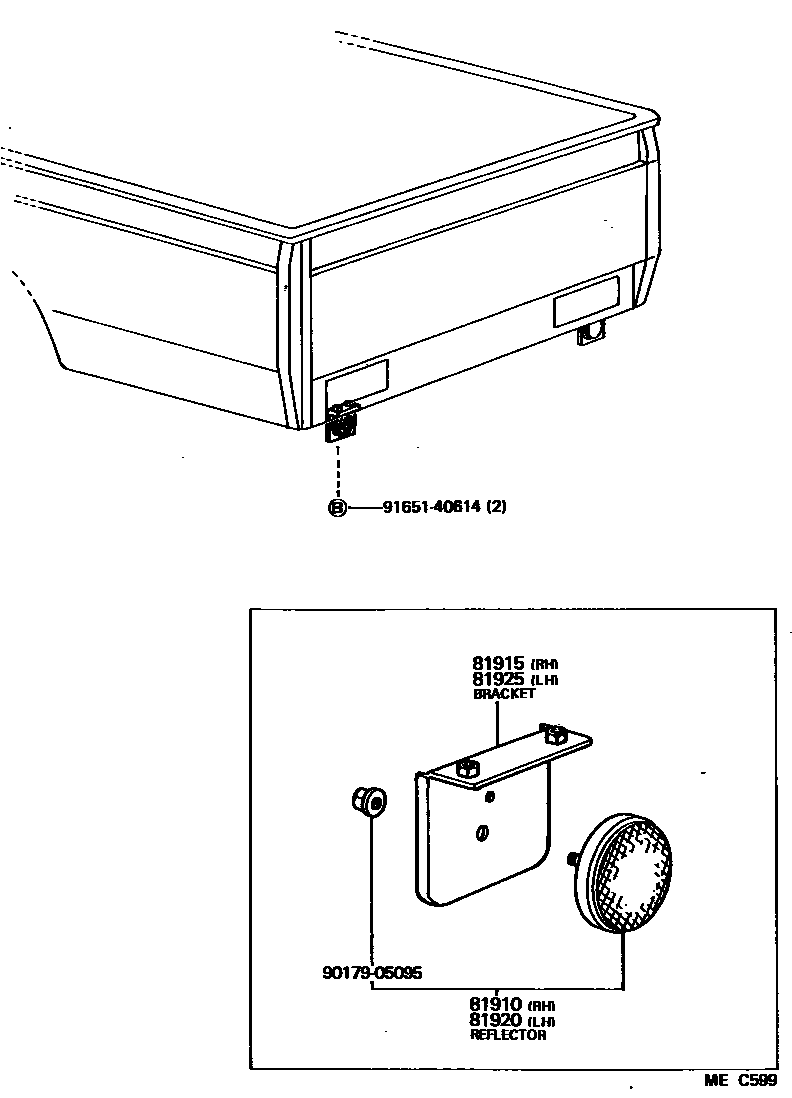

Parts diagram

81910REFLECTOR ASSY, REFLEX, RH

main81910-39055i198211-198507

81915BRACKET, REFLEX REFLECTOR, RH

main81941-95600i198211-198507

81920REFLECTOR ASSY, REFLEX, LH

main81910-39055i198211-198507

81925BRACKET, REFLEX REFLECTOR, LH

main81941-95600i198211-198507

9017905095

main90179-05095

9165140614

main91651-40614

6 parts on this diagram · 1 diagram in section
