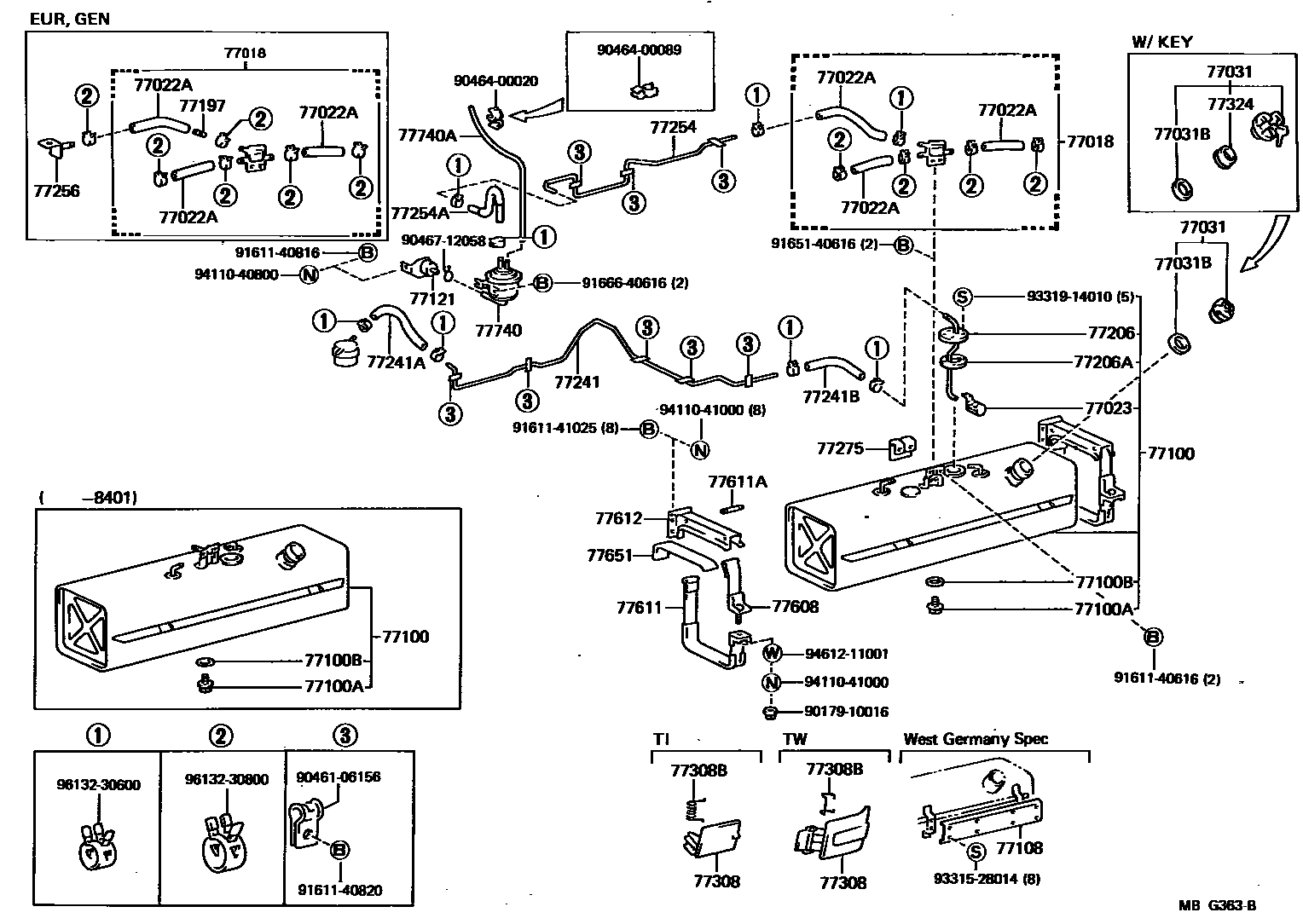

FUEL TANK & TUBE

0001 1 0002 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26031iRH11..ARL198211-198401

main77018-26032iRH11..ARL198401-198507

main77018-26040iLH11..IDN198211-198507

main77018-26120iLH11,RH11..EUR,GEN198401-198507

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06020iRH11..ARL198211-198401

L=200(*H,L=140)

sub95333-06020

main95332-06030iRH11..ARL198401-198507

L=300(*H,L=280)

sub95333-06030

main95332-08020iLH11,RH11198211-198507

L=200(*H,L=140)

sub95333-08020

main95332-08030iLH11..IDN198211-198507

L=300(*H,L=260)

sub95333-08030

main95332-08030iLH11..IDN198401-198507

L=300(*H,L=220)

sub95333-08030

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRH11198401-198507

main77023-22040iLH11..IDN198308-198507

77031CAP ASSY, FUEL TANK

main69058-89102iLH11..ARL,GEN,IDN198211-198507

W/KEY

sub69058-25010

main69058-95400iRH11..ARL,GEN198211-198507

W/KEY

sub69058-60071

main69058-95A03iRH11..LHD..IV198211-198507

W/KEY,WEST GERMANY SPEC

main69058-95A04iRH11..EUR198211-198507

W/KEY

main69058-95A05iLH11..EUR198211-198507

W/KEY

main69058-95A06iLH11..LHD..EUR..IV198211-198507

W/KEY,WEST GERMANY SPEC

main77310-14070iRH11198211-198507

W/O KEY

main77310-55080iLH11..ARL,EUR,GEN198211-198507

W/O KEY

sub77310-60100

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iLH11,RH11198211-198507

CAP=W/KEY

main77316-12050iRH11198211-198507

CAP=W/O KEY

main77316-27010iLH11..ARL,EUR,GEN198211-198507

CAP=W/O KEY

77100TANK ASSY, FUEL

main77001-26080iRH11..EUR..IV198211-198401

WEST GERMANY SPEC

main77001-26091iLH11..ARL,EUR,GEN198211-198401

sub77001-26170

main77001-26092iLH11..ARL,EUR,GEN198401-198507

main77001-26170iLH11..EUR..IV198211-198401

WEST SERMANY SPEC

main77001-26270iRH11198401-198507

main77001-28020iRH11198211-198401

77100APLUG(FOR FUEL TANK)

main90105-12018iLH11,RH11198211-198507

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH11,RH11198211-198507

77108PROTECTOR SUB-ASSY, FUEL TANK

main77161-26010iLH11,RH11..EUR..IV198211-198401

WEST GERMANY SPEC

77121PROTECTOR, FUEL TUBE

main77276-26020iRH11..ARL198211-198507

77197ORIFICE, FUEL VAPOR

main77198-35010iLH11;RH11..EUR,GEN198211-198507

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-26080iLH11..IDN198308-198507

main77017-26090iLH11..ARL,EUR,GEN198401-198507

main77017-26100iRH11198401-198507

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iLH11,RH11198308-198507

77241TUBE, FUEL MAIN, NO.1

main77251-26062iRH11198211-198401

main77251-26063iRH11..ARL,GEN198401-198501

main77251-26102iLH11..IDN198211-198507

main77251-26260iLH11..ARL,EUR,GEN198401-198507

main77251-26280iRH11198406-198507

main77251-26290iLH11..EUR198406-198507

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iRH11198211-198507

L=200(*H,L=180)

sub95333-06020

main95332-08040iLH11198211-198507

L=400(*H,L=380)

sub95333-08040

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iRH11198401-198507

L=200

sub95333-06020

main95332-06020iRH11198211-198401

L=200(*H,L=110)

sub95333-06020

main95332-08020iLH11..ARL,EUR,GEN198401-198507

L=200

sub95333-08020

main95332-08030iLH11..ARL,EUR,GEN198211-198401

L=300(*H,L=220)

sub95333-08030

main95332-08040iLH11..IDN198308-198507

L=400(*H,L=380)

sub95333-08040

77254TUBE, FUEL EMISSION, NO.1

main77262-26110iRH11..ARL198211-198401

main77262-26111iRH11..ARL198401-198507

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77209-26010iRH11..ARL198211-198507

77256TUBE, FUEL EMISSION, NO.3

main77244-26010iLH11;RH11..EUR,GEN198211-198507

main77244-26030iRH11..EUR,GEN198401-198507

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-25010iLH11,RH11..LHD..T3;LH11,RH11..LHD..IV;LH11,RH11..RHD..03S..(ARL,EUR,GEN)198211-198507

77308COVER SUB-ASSY, FUEL INLET BOX

main64016-95A00iLH11,RH11..TW198211-198507

main65640-95600iLH11,RH11..T1..(EUR,GEN)198211-198507

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main65644-91336iLH11,RH11..TW198211-198507

main90508-23186iLH11,RH11..T1..(EUR,GEN)198211-198507

77324SPRING, FUEL TANK CAP

main77324-12011iLH11,RH11198211-198507

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77603-25010iLH11,RH11198310-198507

main77603-26011iLH11,RH11198211-198310

sub77603-25010

main77603-28010iLH11,RH11..ARL,EUR,GEN198401-198507

77611BAND, FUEL TANK

main77601-25090iLH11,RH11198211-198507

main77601-26040iLH11,RH11..ARL,EUR,GEN198401-198507

sub77601-26050

77611APIN (FOR FUEL TANK BAND)

main77629-25010iLH11,RH11198211-198507

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011iLH11,RH11198211-198507

sub77501-25091

77651PACKING, FUEL TANK BRACKET

main77651-25050iLH11,RH11198211-198507

sub77651-26040

main77651-26040iLH11,RH11..ARL,EUR,GEN198401-198507

77740CANISTER ASSY, CHARCOAL

main77740-26020iRH11..ARL198211-198507

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19960iRH11..ARL198211-198507

*H,L=600,MARK=#*

sub90999-92003

9017910016

main90179-10016

9046106156

main90461-06156

9046400020

main90464-00020

9046400089

main90464-00089

9046712058

main90467-12058

9161140616

main91611-40616

9161140816

main91611-40816

9161140820

main91611-40820

9161141025

main91611-41025

9165140616

main91651-40616

9166640616

main91666-40616

9331528014

main93315-28014

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9461211001

main94612-11001

9613230600

main96132-30600

9613230800

main96132-30800

48 parts on this diagram · 2 diagrams in section
