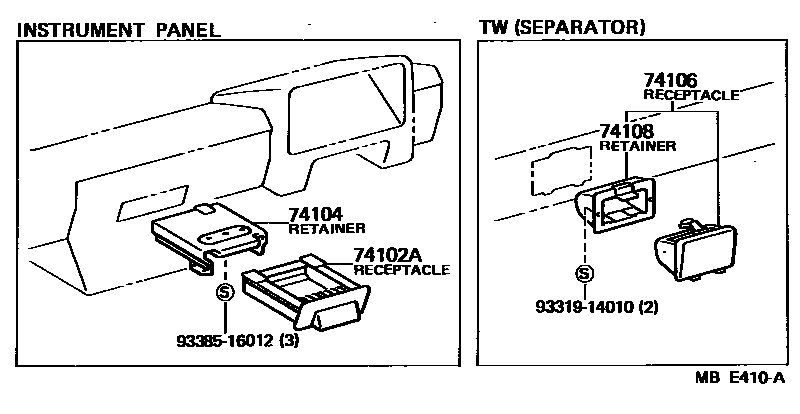

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74101-95A04iLH11,RH11..ARL,EUR,GEN198211-198507

main74111-95A04iLH11..IDN198211-198507

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74101-95A00iLH11..IDN198211-198507

main74104-95A01iLH11,RH11..RHD..(ARL,EUR,GEN)198211-198507

main74104-95A02iLH11,RH11..LHD198211-198507

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74140-95700-03iLH11,RH11..TW198211-198507

GRAY,GRAY

sub74140-95700

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74141-95550iLH11,RH11..TW198211-198507

9331914010

main93319-14010

9338516012

main93385-16012

6 parts on this diagram · 1 diagram in section
