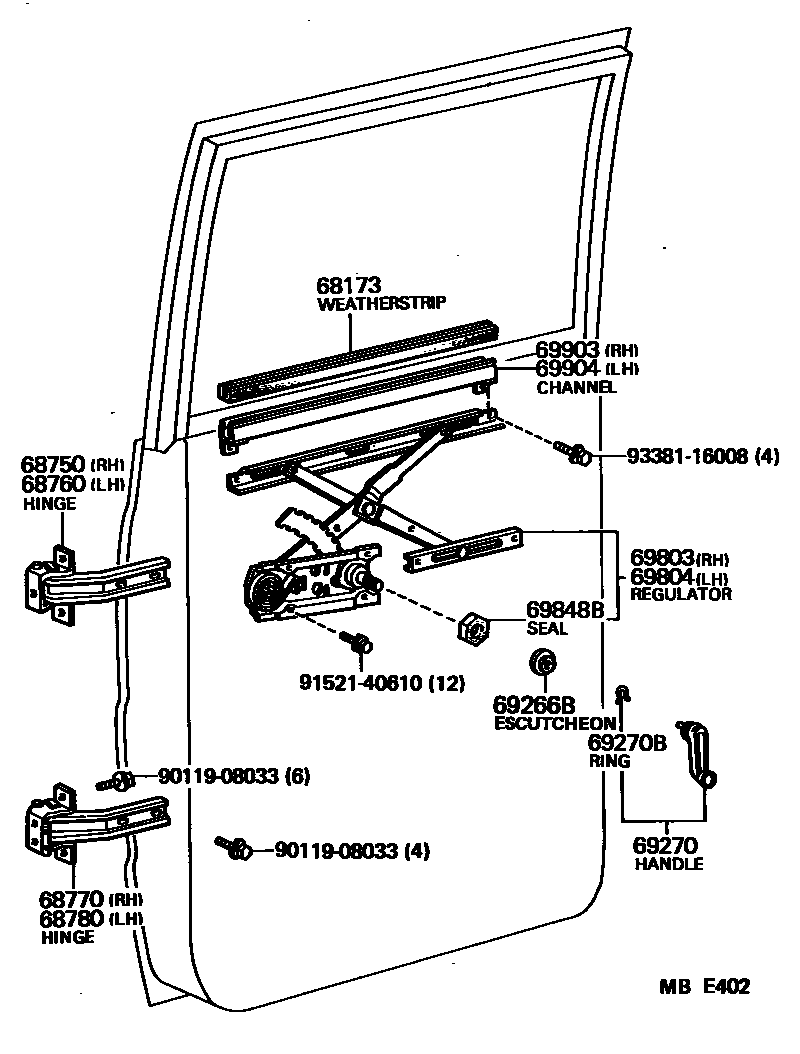

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69981-95701iLH11,RH11..TW198211-198507

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-95400iLH11,RH11..TW198308-198507

main68750-95A00iLH11,RH11..TW198211-198308

sub68750-95400

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-95400iLH11,RH11..TW198308-198507

main68750-95A00iLH11,RH11..TW198211-198308

sub68750-95400

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-95010iLH11,RH11..TW198211-198308

sub68770-95400

main68770-95400iLH11,RH11..TW198308-198507

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-95010iLH11,RH11..TW198211-198308

sub68780-95400

main68780-95400iLH11,RH11..TW198308-198507

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69272-30010iLH11,RH11..TW198211-198507

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-01iLH11,RH11..TW198211-198507

BLACK

sub69260-10040

sub69260-16010

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLH11,RH11..TW198211-198507

sub90520-01274

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-95A00iLH11,RH11..TW198211-198507

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-95A00iLH11,RH11..TW198211-198507

69848BSEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)

main69848-95700iLH11,RH11..TW198211-198507

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-95701iLH11,RH11..TW198211-198507

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-95701iLH11,RH11..TW198211-198507

9011908033

main90119-08033

9152140610

main91521-40610

9338116008

main93381-16008

16 parts on this diagram · 1 diagram in section
