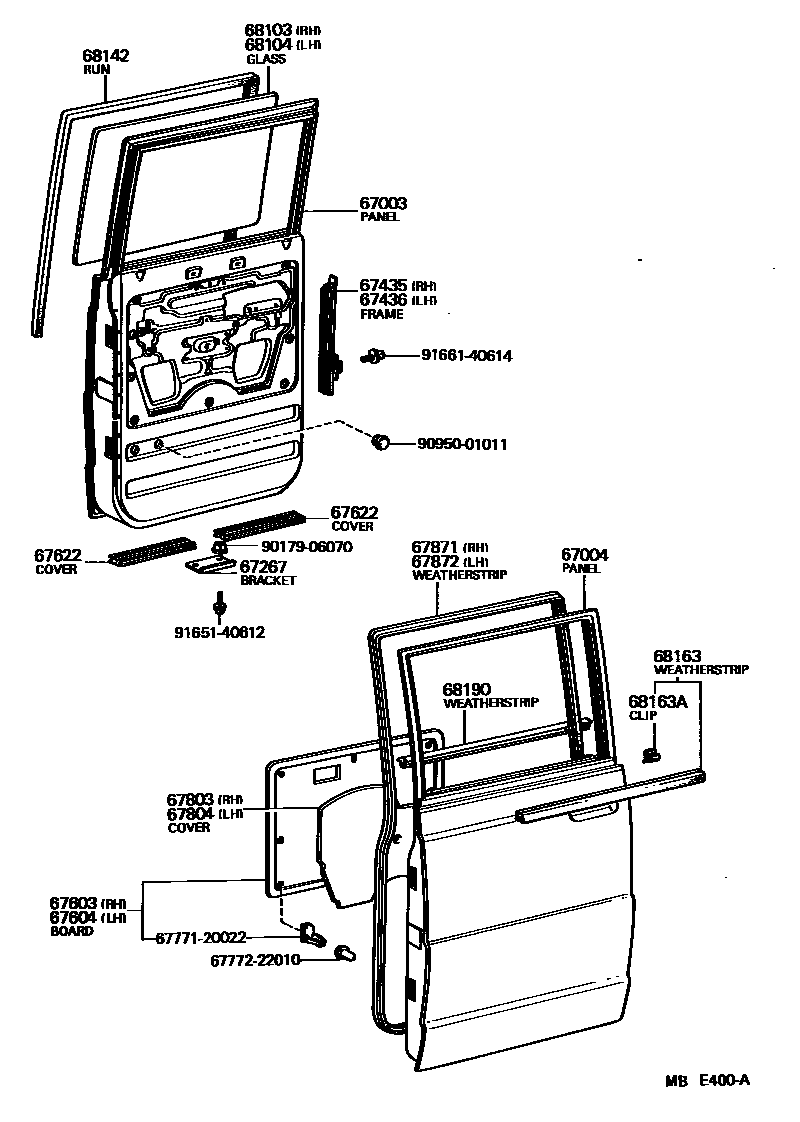

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67267BRACKET, DOOR INSIDE PANEL, LOWER
67435FRAME, REAR DOOR WINDOW LOWER, RH
67436FRAME, REAR DOOR WINDOW, LOWER LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
sub67630-26050
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
sub67640-26140
67622COVER, REAR DOOR INSIDE PANEL LOWER HOLE
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67871WEATHERSTRIP, REAR DOOR, RH
sub67863-95402
67872WEATHERSTRIP, REAR DOOR, LH
sub67864-95402
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9017906070
main90179-06070
9095001011
main90950-01011
9165140612
main91651-40612
9166140614
main91661-40614
24 parts on this diagram · 1 diagram in section
