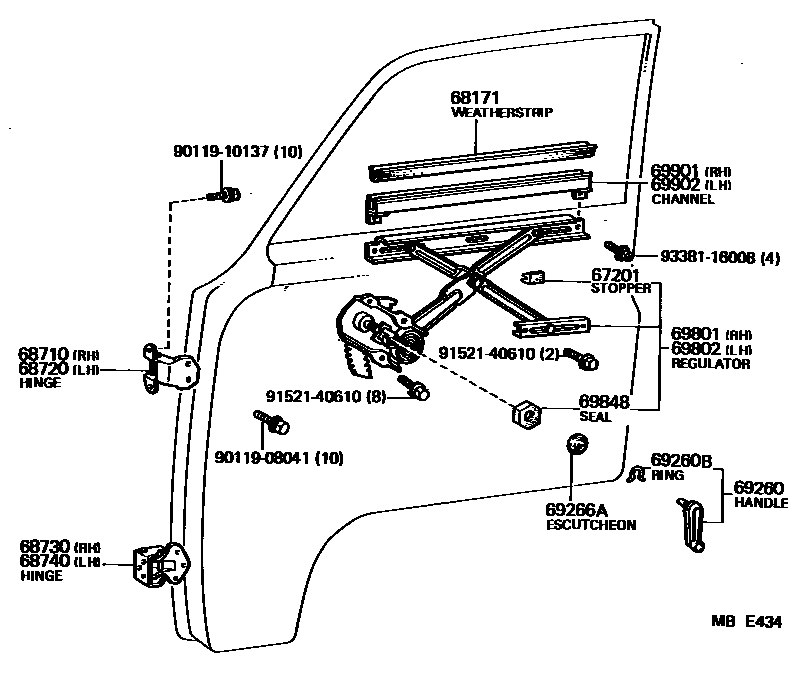

FRONT DOOR WINDOW REGULATOR & HINGE

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main69982-95700iLH11,RH11198211-198507

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69981-95701iLH11,RH11198211-198507

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12060iLH11,RH11198211-198507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12060iLH11,RH11198211-198507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20060iLH11,RH11198211-198507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20060iLH11,RH11198211-198507

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01iLH11,RH11198211-198507

BLACK

sub69260-10040

sub69260-16010

main69260-95A03iLH11,RH11..LHD..EUR..IV198211-198507

WEST GERMANY SPEC

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLH11,RH11198211-198507

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iLH11,RH11198211-198507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95A00iLH11,RH11198211-198507

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95A00iLH11,RH11198211-198507

69848SEAL, WINDOW REGULATOR HOLE

main69848-30010iLH11,RH11198211-198507

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95701iLH11,RH11198211-198507

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95701iLH11,RH11198211-198507

9011908041

main90119-08041

9011910137

main90119-10137

9152140610

main91521-40610

9338116008

main93381-16008

18 parts on this diagram · 1 diagram in section
