FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95A07iLH11,RH11..LHD..EUR198211-198507

SWEDEN SPEC

main67001-95A10iLH11,RH11..ARL,EUR,GEN198211-198507

VENTILATOR WINDOW

main67001-95A11iLH11,RH11..EUR,GEN198211-198507

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95A09iLH11,RH11..RHD..(ARL,GEN)198211-198507

VENTILATOR WINDOW

main67002-95A13iLH11,RH11..LHD..EUR198211-198507

SWEDEN SPEC

main67002-95A16iLH11,RH11..EUR;LH11,RH11..LHD..GEN198211-198507

main67002-95A17iLH11,RH11..EUR;LH11,RH11..LHD..GEN198211-198507

VENTILATOR WINDOW

main67002-95A18iLH11,RH11..RHD..GEN198211-198507

67111PANEL, FRONT DOOR, OUTER RH

main67111-95920iLH11,RH11..ARL,EUR,GEN198211-198507

67112PANEL, FRONT DOOR, OUTER LH

main67112-95A08iLH11,RH11..EUR;LH11,RH11..LHD..GEN198211-198507

main67112-95A09iLH11,RH11..RHD..(ARL,GEN)198211-198507

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-95A01iLH11,RH11..EUR,GEN198211-198507

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-95A01iLH11,RH11..EUR,GEN198211-198507

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67407-95A00iLH11,RH11198211-198507

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67408-95A00iLH11,RH11198211-198507

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95A35iLH11,RH11..RHD..EUR198211-198304

sub67610-26160

main67610-95A36iLH11,RH11..LHD..EUR;LH11,RH11..ARL,GEN,IDN198211-198507

sub67610-95A34

main67610-95A39iLH11,RH11..RHD..EUR198304-198507

sub67610-95A35

main67610-95A40iLH11,RH11..LHD..EUR198304-198507

sub67610-95A34

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95A49iLH11,RH11..ARL,GEN,IDN198211-198507

sub67620-95A48

main67620-95A50iLH11,RH11..LHD..EUR198211-198507

sub67620-26150

main67620-95A55iLH11,RH11..RHD..EUR198304-198507

sub67620-95A48

67777POCKET, FRONT DOOR TRIM, RH

main67778-22030-03iLH11,RH11..RHD..EUR198211-198507

GRAY,GRAY

sub67778-22030

67778POCKET, FRONT DOOR TRIM, LH

main67777-22040-03iLH11,RH11..LHD..EUR198211-198507

GRAY,GRAY

sub67777-22040

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95A00iLH11,RH11198211-198507

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-95A00iLH11,RH11198211-198507

67861WEATHERSTRIP, FRONT DOOR, RH

main67865-95A00iLH11,RH11198211-198507

67862WEATHERSTRIP, FRONT DOOR, LH

main67866-95A00iLH11,RH11198211-198507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95A00iLH11,RH11..EUR,GEN198211-198507

sub68111-95A01

main68111-95A02iLH11,RH11198211-198507

VENTILATOR WINDOW

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95A00iLH11,RH11..EUR,GEN198211-198507

sub68112-95A01

main68112-95A02iLH11,RH11198211-198507

VENTILATOR WINDOW

68141RUN, FRONT DOOR GLASS

main68141-95A01iLH11,RH11198211-198507

main68141-95A02iLH11,RH11..EUR,GEN198211-198507

68143RUN, FRONT DOOR GLASS, LOWER

main68143-95A00iLH11,RH11..EUR,GEN198211-198507

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68180-95A00iLH11,RH11..EUR,GEN198211-198507

RH

main68180-95A01iLH11,RH11198211-198507

RH,VENTILATOR WINDOW

main68190-95A00iLH11,RH11..EUR,GEN198211-198507

LH

main68190-95A01iLH11,RH11198211-198507

LH,VENTILATOR WINDOW

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68212-95A01iLH11,RH11198211-198507

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68130-95A00iLH11,RH11..EUR,GEN198211-198507

main68130-95A01iLH11,RH11198211-198507

RH,VENTILATOR WINDOW

main68140-95A01iLH11,RH11198211-198507

LH,VENTILATOR WINDOW

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906128

main90119-06128

9015940160

main90159-40160

9016840025

main90168-40025

9095001004

main90950-01004

9095001029

main90950-01029

9095006001

main90950-06001

9152140610

main91521-40610

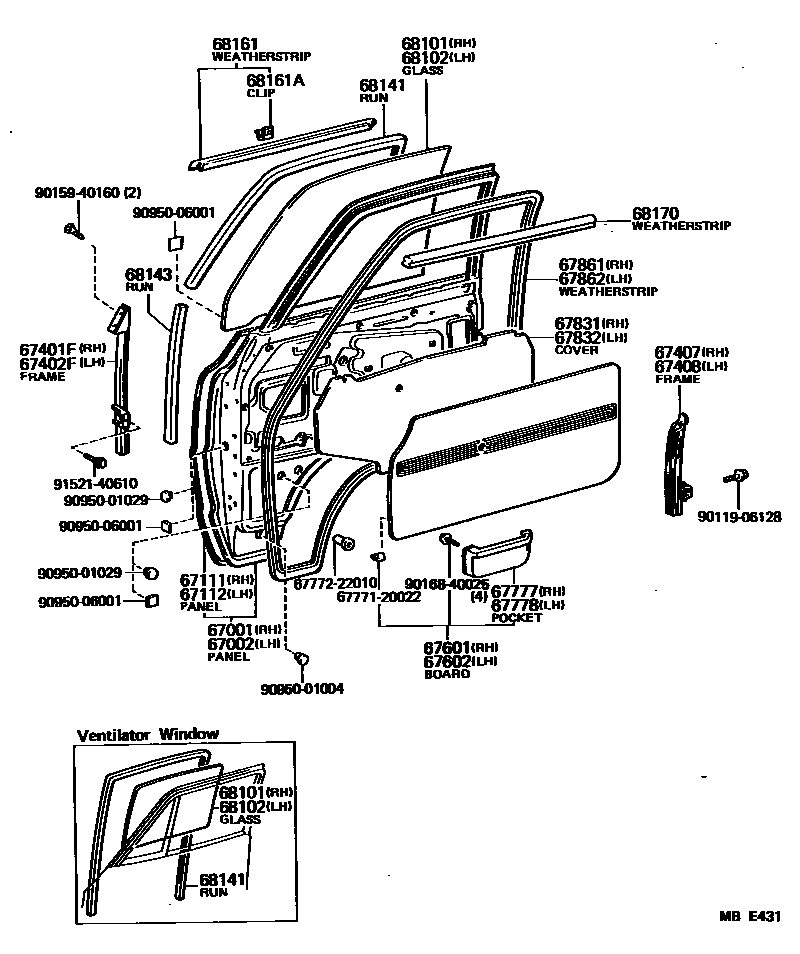

32 parts on this diagram · 1 diagram in section
