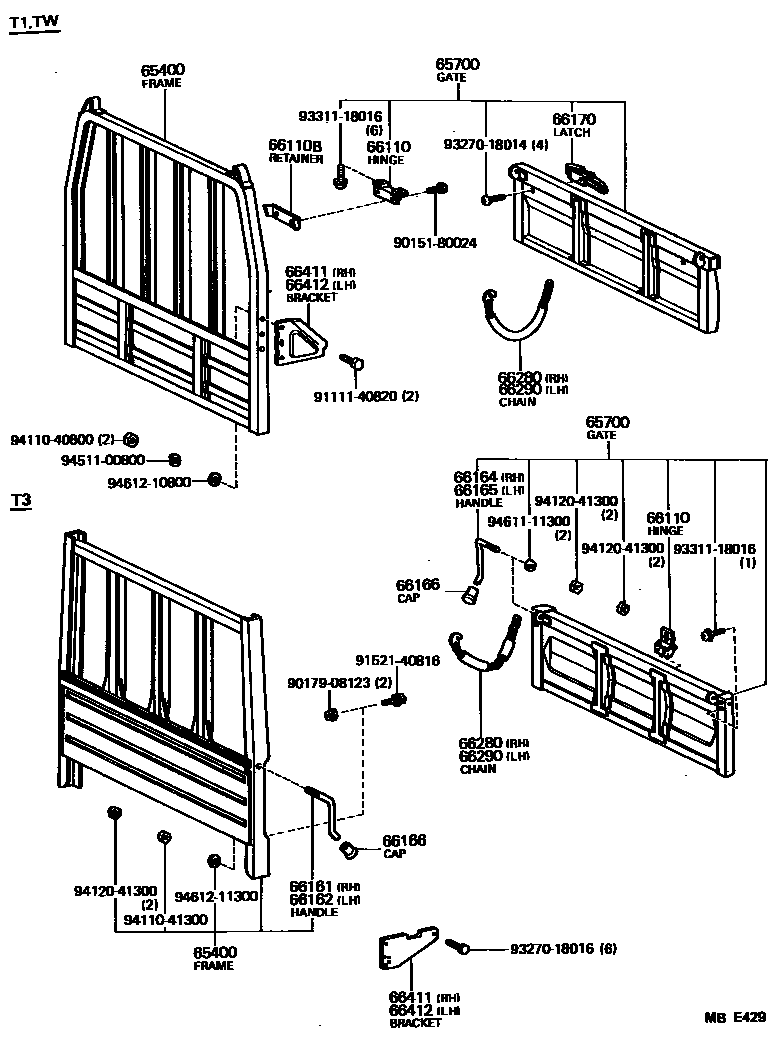

REAR BODY GUARD FRAME & TAIL GATE

65400FRAME ASSY, REAR BODY GUARD

main65400-95024iRH11..T3198211-198507

sub65400-95A04

main65400-95A00iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

main65400-95A04iLH11..T3198211-198507

65700GATE ASSY, REAR BODY TAIL

main65700-95602iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

main65700-95D02iLH11,RH11..T3198211-198507

66110HINGE ASSY, TAIL GATE

main66110-95018iLH11,RH11..T3198211-198507

main66110-95601iLH11..IDN198211-198309

sub66110-95A00

main66110-95A00iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

66110BRETAINER, TAIL GATE HINGE, LOWER

main66115-95012iLH11,RH11..T1,TW198211-198507

sub66115-95018

66161HANDLE, SIDE GATE LATCH, RH

main66161-95011iLH11,RH11..T3198211-198507

66162HANDLE, SIDE GATE LATCH, LH

main66162-95010iLH11,RH11..T3198211-198507

66164HANDLE, TAIL GATE LATCH, RH

main66163-95011iLH11,RH11..T3198211-198507

66165HANDLE, TAIL GATE LATCH, LH

main66164-95011iLH11,RH11..T3198211-198507

66166CAP, GATE LATCH HANDLE

main66165-87402iLH11,RH11..T3198211-198507

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95111iLH11..IDN198211-198507

main66170-95112iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

66280CHAIN ASSY, TAIL GATE, RH

main66280-95011iLH11,RH11198211-198507

sub66280-25020

66290CHAIN ASSY, TAIL GATE, LH

main66280-95011iLH11,RH11198211-198507

sub66280-25020

66411BRACKET, GUARD FRAME, RH

main66411-95018iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

main66411-95019iLH11,RH11..T3198211-198507

66412BRACKET, GUARD FRAME, LH

main66412-95017iLH11,RH11..(T1,TW)..(ARL,EUR,GEN)198211-198507

main66412-95018iLH11,RH11..T3198211-198507

9015180024

main90151-80024

9017908123

main90179-08123

9111140820

main91111-40820

9152140816

main91521-40816

9327018014

main93270-18014

9327018016

main93270-18016

9331118016

main93311-18016

9411040800

main94110-40800

9411041300

main94110-41300

9412041300

main94120-41300

9451100800

main94511-00800

9461111300

main94611-11300

9461210800

main94612-10800

9461211300

main94612-11300

28 parts on this diagram · 1 diagram in section
