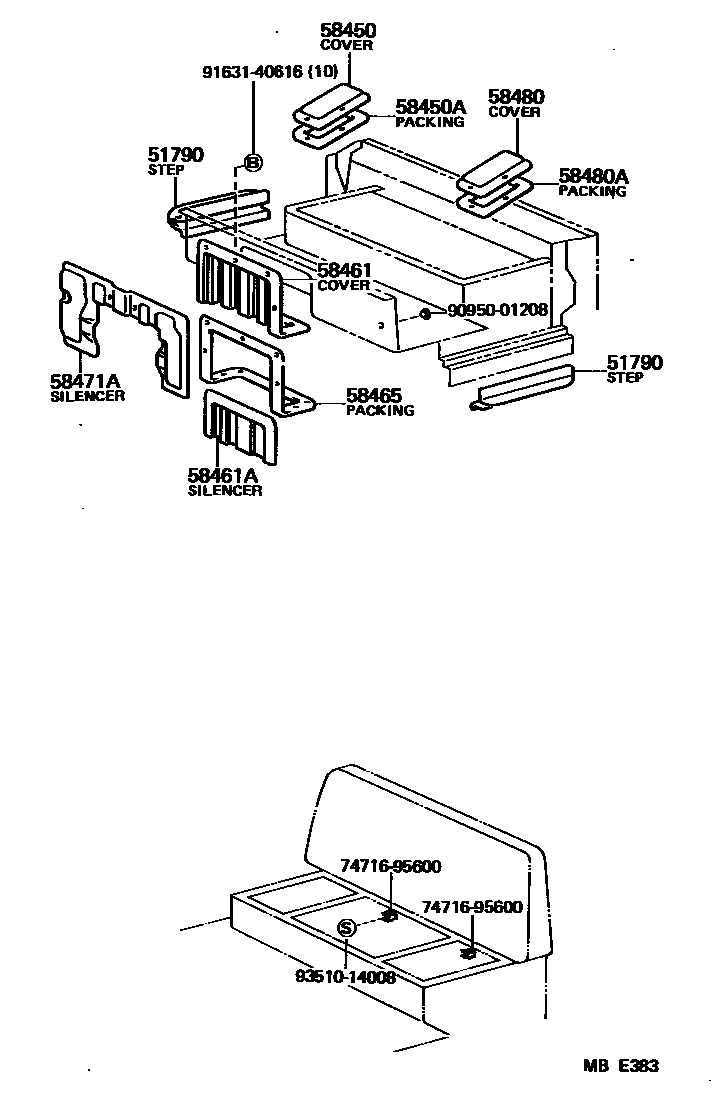

REAR FLOOR PANEL & REAR FLOOR MEMBER

51790STEP ASSY, REAR FLOOR

main58303-95A05iLH11,RH11..TW198211-198507

58450COVER ASSY, BATTERY SERVICE HOLE

main58201-95A02iLH11,RH11..TW198211-198507

58450APACKING, BATTERY SERVICE HOLE COVER

main58445-95A05iLH11,RH11..TW198211-198401

sub65352-95A00

main65352-95A00iLH11,RH11..TW198401-198507

58461COVER, TRANSMISSION SERVICE HOLE

main58406-95A04iLH11,RH11..TW198211-198507

58461ASILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58468-95A03iRH11..06S198211-198507

main58468-95A04iLH11..TW198211-198507

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-95A01iLH11,RH11..TW198211-198507

58471ASILENCER, HEADER PANEL

main58469-95A03iRH11..06S198211-198507

main58469-95A09iLH11..TW198211-198507

58480COVER ASSY, FUEL TANK SERVICE HOLE

main58201-95A02iLH11,RH11..TW198211-198507

58480APACKING, FUEL TANK SERVICE HOLE COVER

main58445-95A05iLH11,RH11..TW198211-198401

sub65352-95A00

main65352-95A00iLH11,RH11..TW198401-198507

7471695600SPRING, JACK HANDLE SUPPORT

main74716-95600

9095001208

main90950-01208

9163140616

main91631-40616

9351014008

main93510-14008

13 parts on this diagram · 1 diagram in section
