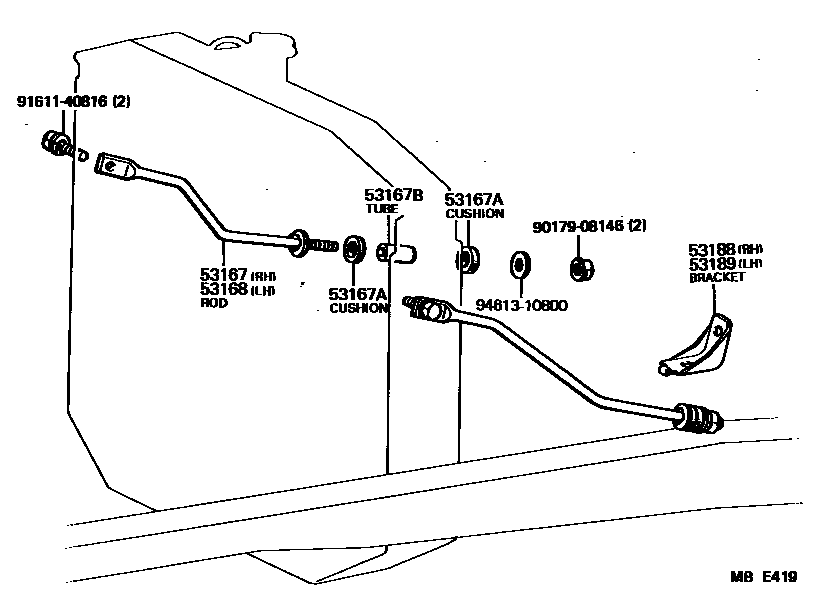

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main53167-26032iLH11,RH11198211-198507

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iLH11,RH11198211-198507

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iLH11,RH11198211-198507

53168ROD, RADIATOR BRACE, LH

main53169-26010iRH11198211-198507

main53169-26030iLH11198211-198507

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-26010iLH11,RH11198211-198507

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-26010iRH11198211-198507

main53168-26020iLH11198211-198507

9017908146

main90179-08146

9161140816

main91611-40816

9461310800

main94613-10800

9 parts on this diagram · 1 diagram in section
