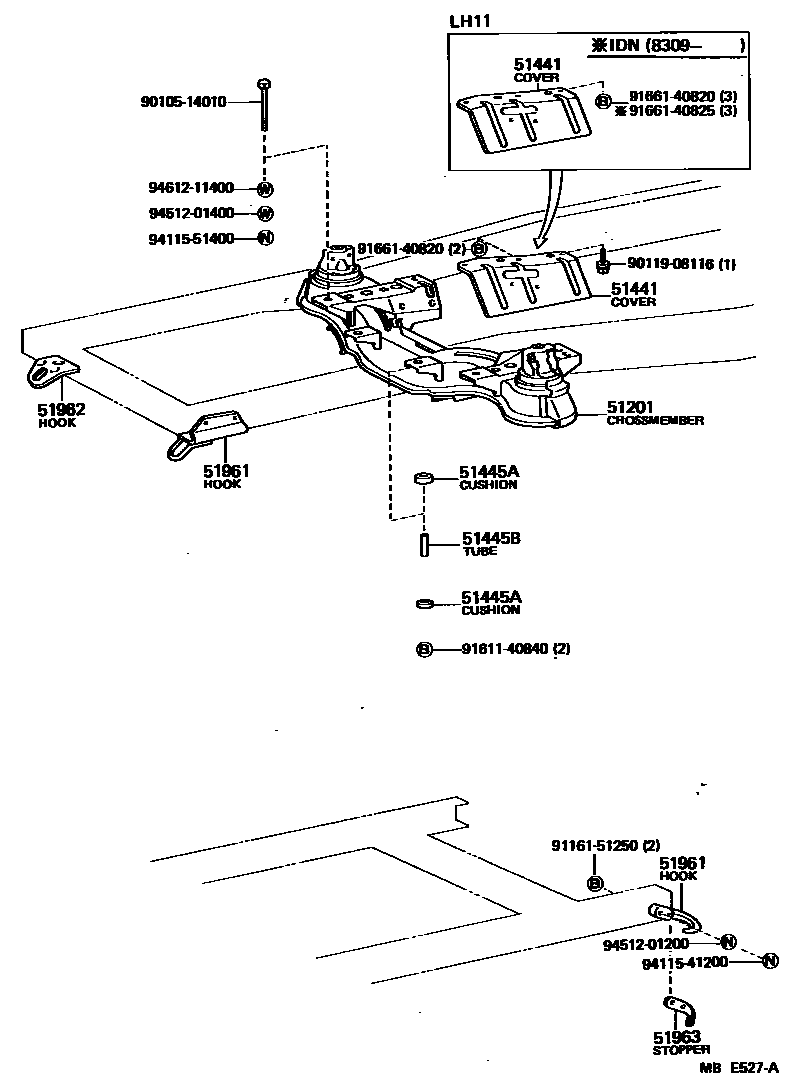

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-26080iRH11198211-198507

main51203-26090iLH11198211-198507

sub51203-26042

51441COVER, ENGINE UNDER, NO.1

main51441-26012iLH11,RH11198211-198507

51445ACUSHION(FOR ENGINE UNDER COVER BRACKET)

main90540-10011iLH11,RH11198211-198507

OD=28,T=14.5

main90540-10022iLH11,RH11198211-198507

OD=22,T=6

51445BTUBE(FOR ENGINE UNDER COVER BRACKET)

main90440-11042iLH11,RH11198211-198507

51961HOOK, NO.1

main51961-26061iLH11,RH11..RHD198211-198507

FR

main51961-26071iLH11,RH11..LHD198211-198507

FR

main51961-60010iLH11,RH11198211-198507

RR

51962HOOK, NO.2

main51963-26021iLH11,RH11198211-198507

51963STOPPER, HOOK WIRE

main51963-35010iLH11,RH11..LHD..EUR..IV198211-198507

WEST GERMANY SPEC

sub51963-35080

9010514010

main90105-14010

9011908116

main90119-08116

9116151250

main91161-51250

9161140840

main91611-40840

9166140820

main91661-40820

9166140825

main91661-40825

9411541200

main94115-41200

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

9461211400

main94612-11400

18 parts on this diagram · 1 diagram in section
