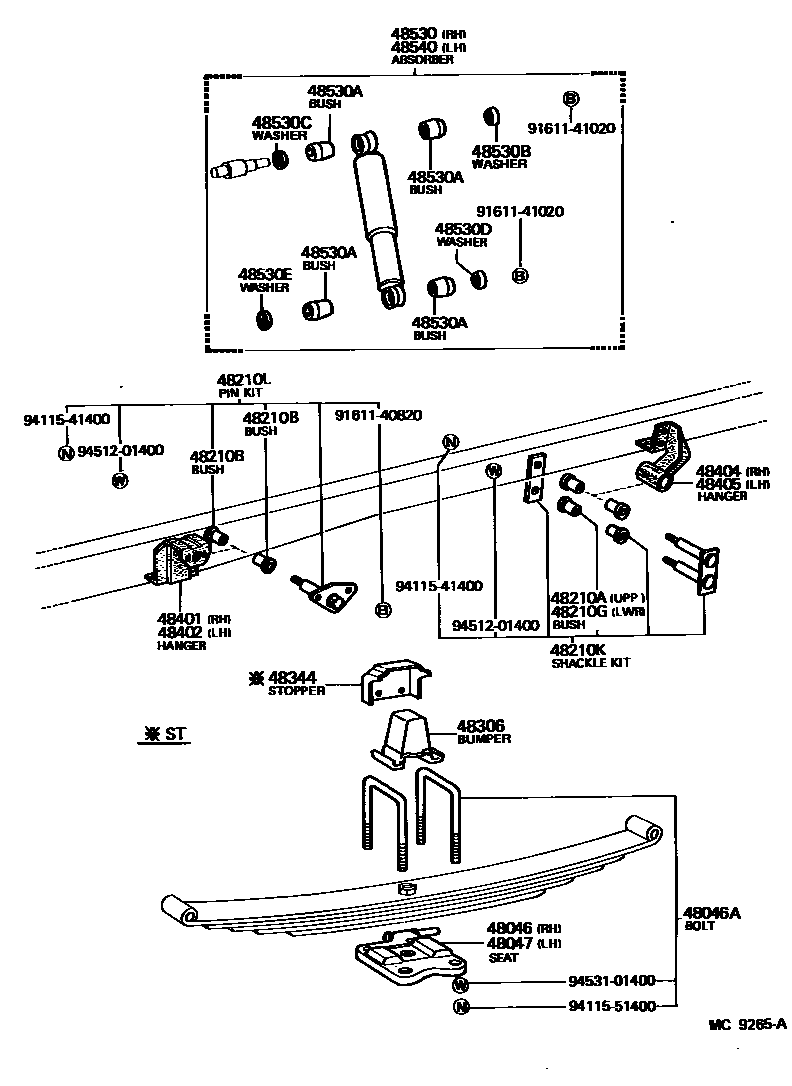

REAR SPRING & SHOCK ABSORBER
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
sub90117-14025
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48210KSHACKLE KIT, REAR SPRING
sub04483-35040
48210LPIN KIT, REAR SPRING
sub04482-35030
48306BUMPER SUB-ASSY, REAR SPRING
48344STOPPER, BUMPER, REAR
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48404BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405BRACKET SUB-ASSY, REAR SPRING, REAR LH
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-29018
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-29018
9161140820
main91611-40820
9161141020
main91611-41020
9411541400
main94115-41400
9411551400
main94115-51400
9451201400
main94512-01400
9453101400
main94531-01400
28 parts on this diagram · 2 diagrams in section
