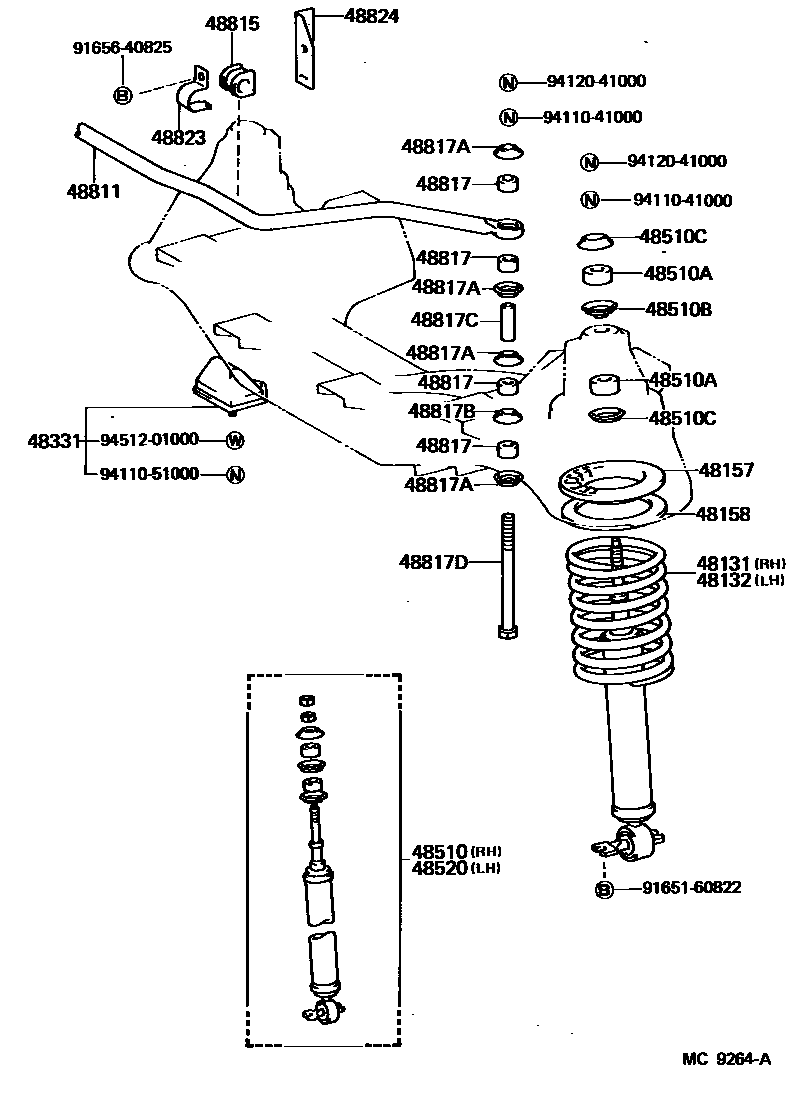

FRONT SPRING & SHOCK ABSORBER
48157INSULATOR, FRONT COIL SPRING, UPPER
48158SPACER, FRONT COIL SPRING
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48511-29016
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48511-29016
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823COVER, STABILIZER LINK(FOR FRONT)
48824BRACKET, STABILIZER, FRONT
RH
LH
9165160822
main91651-60822
9165640825
main91656-40825
9411041000
main94110-41000
9411051000
main94110-51000
9412041000
main94120-41000
9451201000
main94512-01000
25 parts on this diagram · 1 diagram in section
