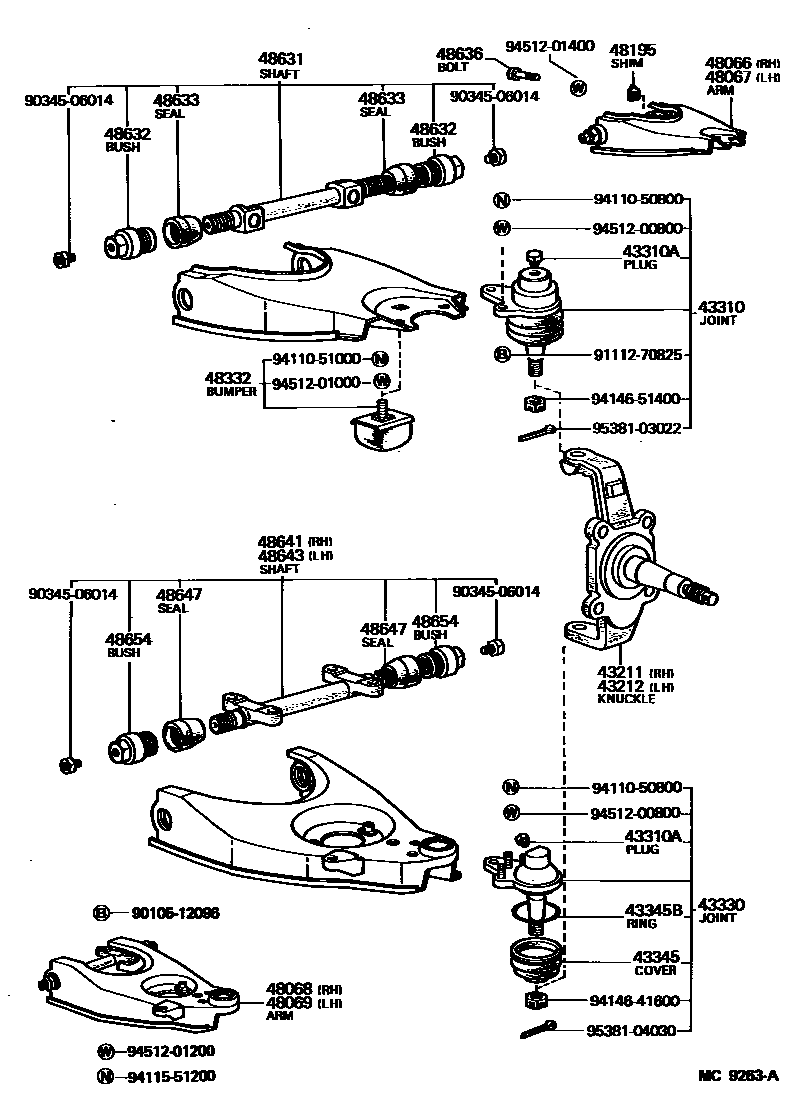

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
FR DRUM BRAKE
FR DISC BRAKE
43212KNUCKLE, STEERING, LH
FR DRUM BRAKE
FR DISC BRAKE
43310JOINT ASSY, UPPER BALL
43310APLUG (FOR BALL JOINT)
43330JOINT ASSY, LOWER BALL, FRONT
RH
43345COVER, LOWER BALL JOINT DUST
43345BRING, SET (FOR LOWER BALL JOINT DUST COVER)
sub90580-09002
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48195SHIM, CAMBER ADJUST
T=4.5
T=1.6,T=1.6
T=1.0,T=1.0
T=2.0,T=2.0
48332BUMPER, FRONT SPRING, NO.2
48631SHAFT, FRONT SUSPENSION UPPER ARM
48632BUSH, UPPER ARM
48633SEAL, UPPER ARM PIVOT DUST
48636BOLT, UPPER ARM SET
sub91112-81455
48641SHAFT, LOWER ARM, RH
48643SHAFT, LOWER ARM, LH
48647SEAL, LOWER ARM BUSH DUST
48654BUSH, LOWER ARM
9010512096
main90105-12096
9034506014
main90345-06014
9111270825
main91112-70825
9411050800
main94110-50800
9411051000
main94110-51000
9411551200
main94115-51200
9414641600
main94146-41600
9414651400
main94146-51400
9451200800
main94512-00800
9451201000
main94512-01000
9451201200
main94512-01200
9451201400
main94512-01400
9538103022
main95381-03022
9538104030
main95381-04030
35 parts on this diagram · 1 diagram in section
