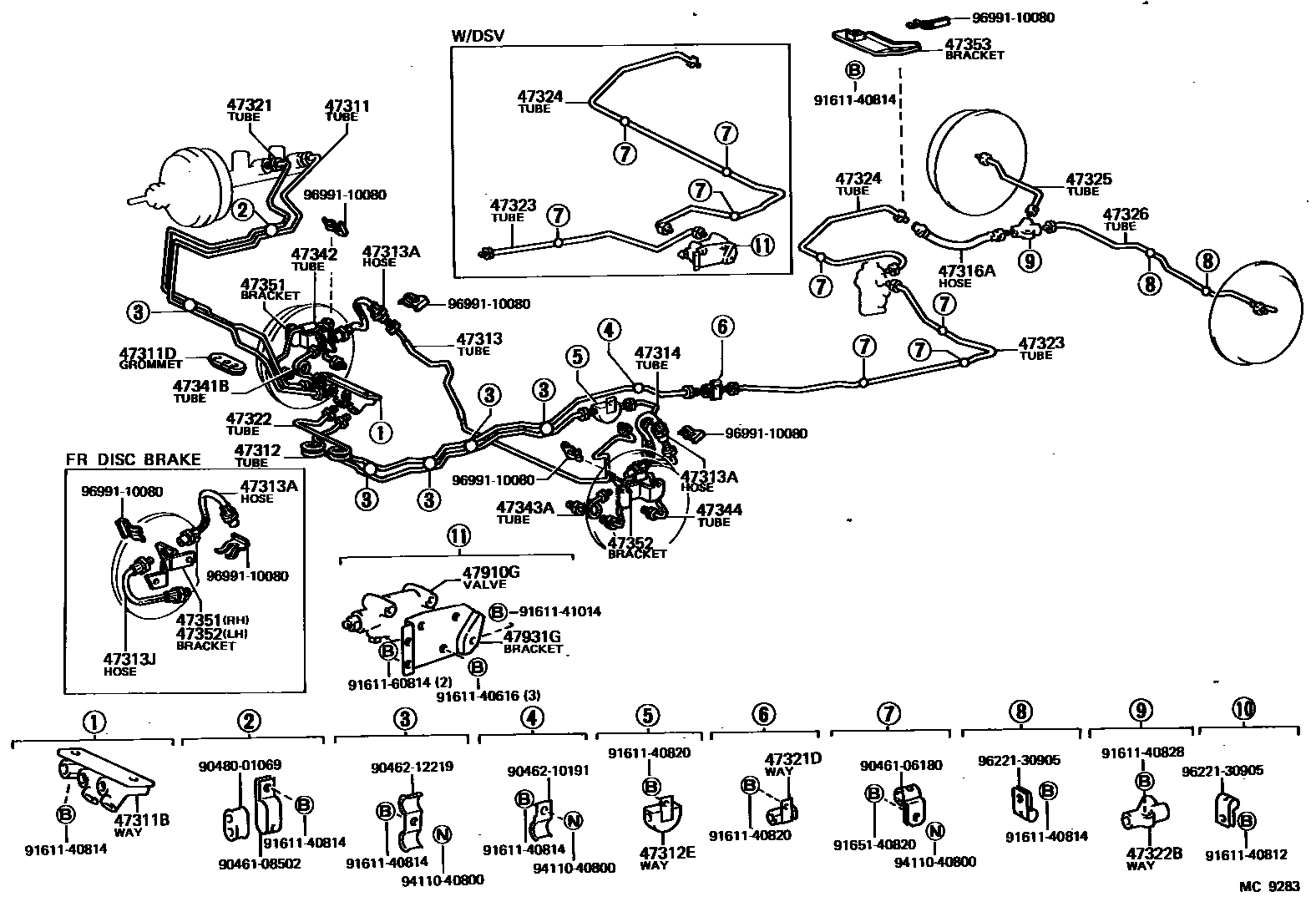

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26150iLH11,RH11..RHD198211-198507

main47311-26160iLH11,RH11..LHD¥1,600198211-198507

sub47311-26170

main47311-26170iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10028iLH11,RH11¥1,900198211-198507

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-01030iLH11,RH11¥540198211-198507

47312TUBE, FRONT BRAKE, NO.2

main47312-26151iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

main47312-26160iLH11,RH11¥1,660198211-198507

sub47312-26151

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10007iLH11,RH11..ARL,EUR198211-198507

main90413-10146iLH11,RH11..GEN,IDN¥930198211-198507

47313TUBE, FRONT BRAKE, NO.3

main47313-26070iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR¥1,870198211-198507

SWEDEN SPEC

main47313-26080iLH11,RH11¥1,870198211-198507

sub47313-26070¥1,870

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02348iLH11,RH11..ARL,EUR,GEN¥1,600198211-198507

FR DISC BRAKE

main90947-02350iLH11,RH11..GEN,IDN¥1,600198211-198507

FR DRUM BRAKE

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96960-32205iLH11,RH11..ARL,EUR,GEN¥1,190198211-198507

FR DISC BRAKE

47314TUBE, FRONT BRAKE, NO.4

main47314-26060iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR¥630198211-198507

SWEDEN SPEC

main47314-26070iLH11,RH11¥630198211-198507

sub47314-26060¥630

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96910-33805iLH11,RH11¥1,320198211-198507

47321TUBE, REAR BRAKE, NO.1

main47321-26060iLH11,RH11..RHD198211-198507

main47321-26070iLH11,RH11..LHD¥1,550198211-198507

sub47321-26080

main47321-26080iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10006iLH11,RH11¥1,930198211-198507

47322TUBE, REAR BRAKE, NO.2

main47322-26071iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

main47322-26080iLH11,RH11¥1,610198211-198507

sub47322-26071

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iLH11,RH11¥590198211-198507

47323TUBE, REAR BRAKE, NO.3

main47323-26120iLH11,RH11..ARL,EUR,GEN¥1,530198211-198507

W/LSPV

main47323-26130iLH11,RH11..GEN198211-198507

W/DSV

main47323-26140iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR¥1,730198211-198507

SWEDEN SPEC

main47323-26150iLH11,RH11..GEN,IDN198211-198507

47324TUBE, REAR BRAKE, NO.4

main47324-26060iLH11,RH11..ARL,EUR,GEN¥800198211-198507

W/LSPV

sub47324-26080

main47324-26070iLH11,RH11..GEN,IDN198211-198507

W/DSV

main47324-26080iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

47325TUBE, REAR BRAKE, NO.5

main47325-26120iLH11,RH11¥920198211-198507

sub47325-26130¥920

main47325-26130iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR¥920198211-198507

SWEDEN SPEC

47326TUBE, REAR BRAKE, NO.6

main47326-26100iLH11,RH11¥1,490198211-198507

sub47326-26110¥1,490

main47326-26110iLH11..LHD..EUR..IV;RH11..LHD..(T1,TW)..EUR¥1,490198211-198507

SWEDEN SPEC

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26020iLH11,RH11..GEN,IDN¥600198211-198507

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26010iLH11,RH11..GEN,IDN¥1,190198211-198507

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26010iLH11,RH11..GEN,IDN¥600198211-198507

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-26010iLH11,RH11..GEN,IDN¥1,190198211-198507

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26030iLH11,RH11..GEN,IDN198211-198507

FR DRUM BRAKE

main47351-26042iLH11,RH11..ARL,EUR,GEN¥2,070198211-198507

FR DISC BRAKE

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26030iLH11,RH11..GEN,IDN198211-198507

FR DRUM BRAKE

main47352-26042iLH11,RH11..ARL,EUR,GEN¥2,070198211-198507

FR DISC BRAKE

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47355-26030iLH11,RH11198211-198507

47910VALVE ASSY, LOAD SENSING PROPORTIONING

main47910-26030iLH11,RH11..GEN¥16,500198211-198507

sub47910-26091¥14,200

main47910-26040iLH11,RH11..ARL,EUR¥17,000198211-198507

47910GVALVE ASSY, DECELERATION SENSING PROPORTIONING

main47910-26050iLH11,RH11..GEN¥16,300198211-198507

47931BRACKET, LOAD SENSING VALVE

main47931-26040iLH11,RH11..ARL,EUR,GEN¥2,410198211-198507

47931GBRACKET, DECELERATION SENSING VALVE

main47931-26050iLH11,RH11..GEN198211-198507

9046106180

main90461-06180¥220

9046108502

main90461-08502¥160

9046210191

main90462-10191¥140

9046212219

main90462-12219¥250

9048001069

main90480-01069¥240

9161140616

main91611-40616¥220

9161140812

main91611-40812¥110

9161140814

main91611-40814¥130

9161140820

main91611-40820¥130

9161140828

main91611-40828¥210

9161141014

main91611-41014¥160

9161160814

main91611-60814¥100

9165140820

main91651-40820¥90

9411040800

main94110-40800¥120

9622130905

main96221-30905¥370

9699110080

main96991-10080¥100

45 parts on this diagram · 3 diagrams in section
