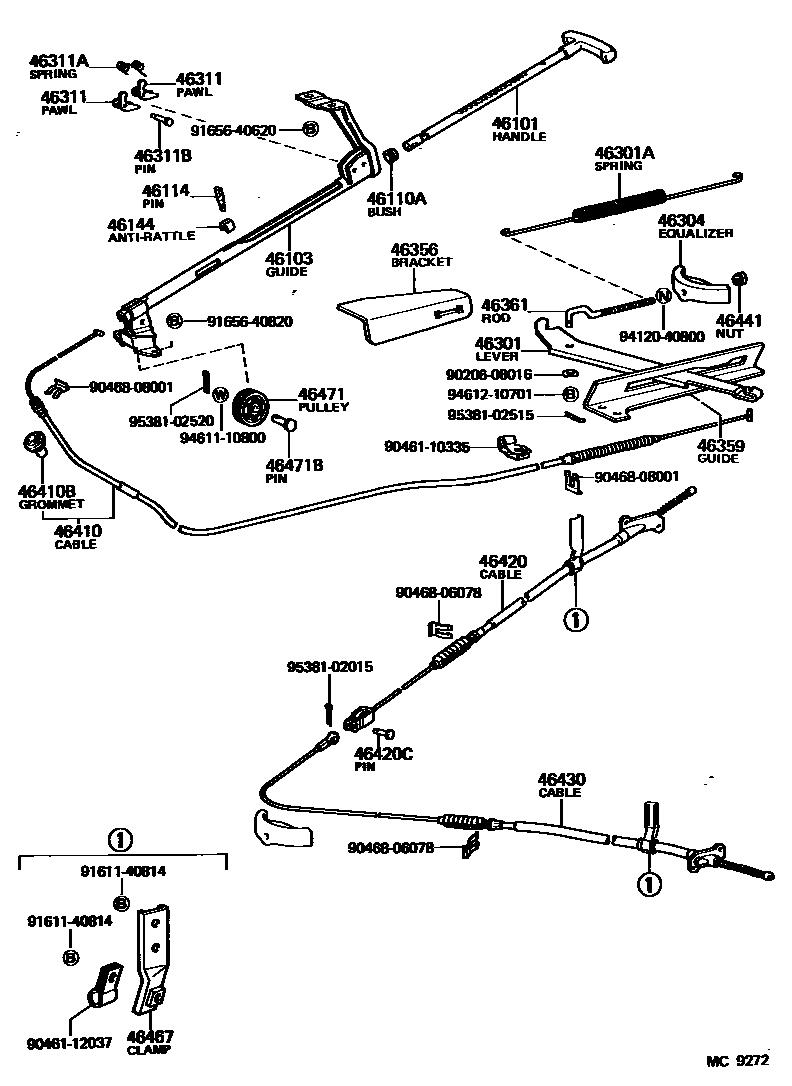

PARKING BRAKE & CABLE

0001 1 0004 1 0006 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-26030iLH11,RH11..RHD..(EUR,GEN,IDN)198211-198401

main46101-26041iLH11,RH11..LHD198211-198401

main46101-26050iLH11,RH11..ARL198211-198401

main46101-26050iRH11..GEN..IV198308-198401

NEW ZEALAND SPEC

main46101-26090iLH11,RH11..RHD..(GEN,IDN)198401-198408

main46101-26100iLH11,RH11..LHD..GEN198401-198408

main46120-26030iLH11,RH11..RHD..(ARL,EUR)198401-198507

main46120-26040iLH11,RH11..LHD198401-198507

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26030iLH11,RH11..RHD..(GEN,IDN)198211-198408

main46103-26042iLH11,RH11..LHD198211-198507

main46103-26050iLH11,RH11..ARL198211-198401

main46103-26050iRH11..GEN..IV198308-198401

NEW ZEALAND SPEC

main46103-26110iLH11,RH11..RHD..(ARL,EUR)198401-198507

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLH11,RH11..ARL198211-198401

main90386-11195iRH11..GEN..IV198308-198401

NEW ZEALAND SPEC

main90386-12048iLH11,RH11198211-198507

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLH11,RH11198211-198507

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLH11,RH11198211-198507

main46144-30020iRH11..GEN..IV198308-198401

NEW ZEALAND SPEC

main46144-30020iLH11,RH11..ARL198211-198401

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46321-26011iLH11,RH11198211-198507

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-18162iLH11,RH11198211-198507

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-26010iLH11,RH11198211-198507

46311PAWL, PARKING BRAKE

main46311-26010iLH11,RH11..ARL,EUR198401-198507

main46311-30041iLH11,RH11198211-198401

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-08011iLH11,RH11..ARL198211-198401

main90506-08011iRH11..GEN..IV198308-198401

NEW ZEALAND SPEC

main90508-08106iLH11,RH11..EUR,GEN,IDN198211-198507

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iLH11,RH11198211-198507

46356BRACKET, EQUALIZER SUPPORT

main46356-26010iLH11,RH11198211-198507

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-26010iLH11,RH11198211-198507

46361ROD, PARKING BRAKE PULL

main46361-20010iLH11,RH11198211-198507

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26060iLH11,RH11..RHD198211-198408

main46410-26071iLH11,RH11..LHD198211-198507

main46410-26200iLH11,RH11..RHD..(ARL,EUR)198401-198507

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-20004iLH11,RH11198211-198507

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26013iLH11,RH11198211-198507

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iLH11,RH11198211-198507

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26013iLH11,RH11198211-198507

46441NUT, WIRE ADJUSTING, NO.1

main90179-08020iLH11,RH11198211-198507

46467CLAMP, CABLE

main46467-26011iLH11,RH11198211-198507

RH

main46487-26011iLH11,RH11198211-198507

LH

46471PULLEY, WIRE

main46471-20010iLH11,RH11198211-198507

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLH11,RH11198401-198507

main90240-08062iLH11,RH11..GEN,IDN198211-198408

9020608016

main90206-08016

9046110335

main90461-10335

9046112037

main90461-12037

9046806078

main90468-06078

9046808001

main90468-08001

9161140814

main91611-40814

9165640620

main91656-40620

9165640820

main91656-40820

9412040800

main94120-40800

9461110800

main94611-10800

9461210701

main94612-10701

9538102015

main95381-02015

9538102515

main95381-02515

9538102520

main95381-02520

37 parts on this diagram · 3 diagrams in section
