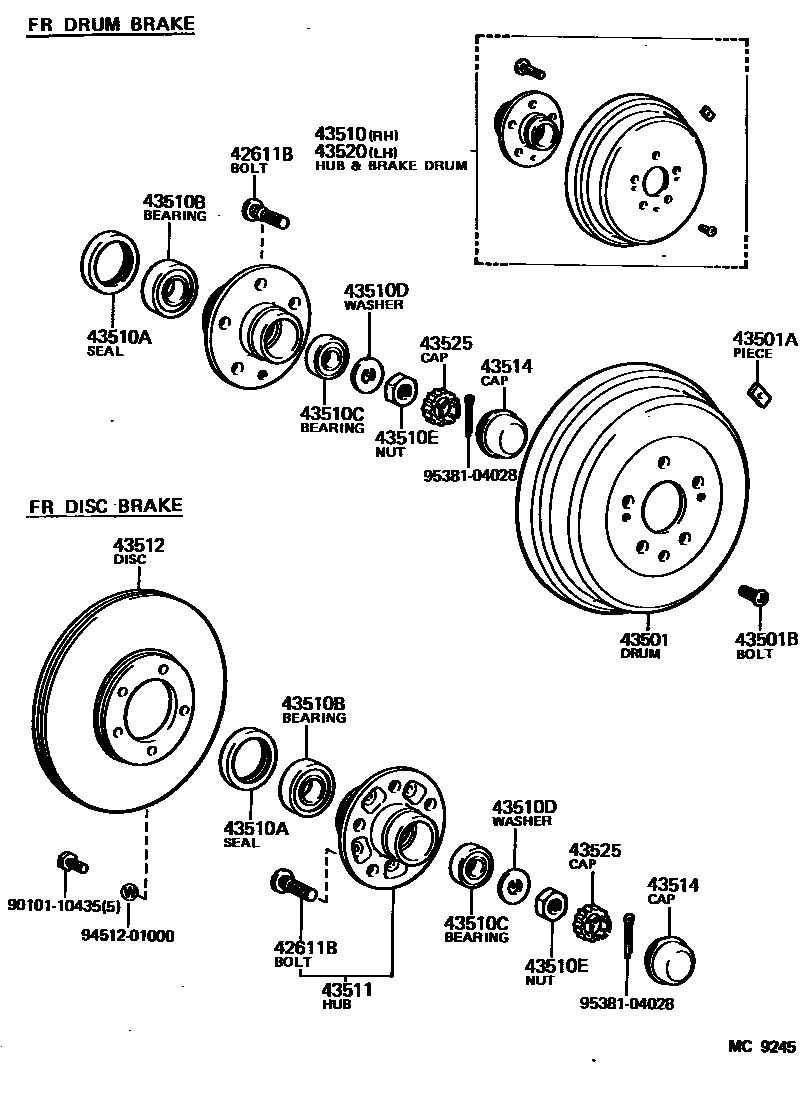

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iLH11,RH11..ARL,EUR,GEN198211-198507

FR DISC BRAKE

sub90942-02047

main90942-02037iLH11,RH11..GEN,IDN198211-198507

FR DRUM BRAKE

sub90942-02049

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-26020iLH11,RH11..GEN,IDN198211-198507

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLH11,RH11..GEN,IDN198211-198507

40.5G,40.5G

main90937-01117iLH11,RH11..GEN,IDN198211-198507

10G,10G

main90937-01118iLH11,RH11..GEN,IDN198211-198507

20G,20G

main90937-01119iLH11,RH11..GEN,IDN198211-198507

30G,30G

main90937-01146iLH11,RH11..GEN,IDN198211-198507

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iLH11,RH11..GEN,IDN198211-198507

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26040iLH11,RH11..GEN,IDN198211-198507

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLH11,RH11198211-198507

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLH11,RH11198211-198507

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLH11,RH11198211-198507

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLH11,RH11198211-198507

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH11,RH11198211-198507

43511HUB, FRONT AXLE

main43502-26011iLH11,RH11..ARL,EUR,GEN198211-198507

FR DISC BRAKE

43512DISC, FRONT

main43512-26031iLH11,RH11..ARL,EUR,GEN198211-198507

43514CAP, FRONT HUB GREASE

main43514-35010iLH11,RH11198211-198507

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26040iLH11,RH11..GEN,IDN198211-198507

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLH11,RH11198211-198507

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 1 diagram in section
