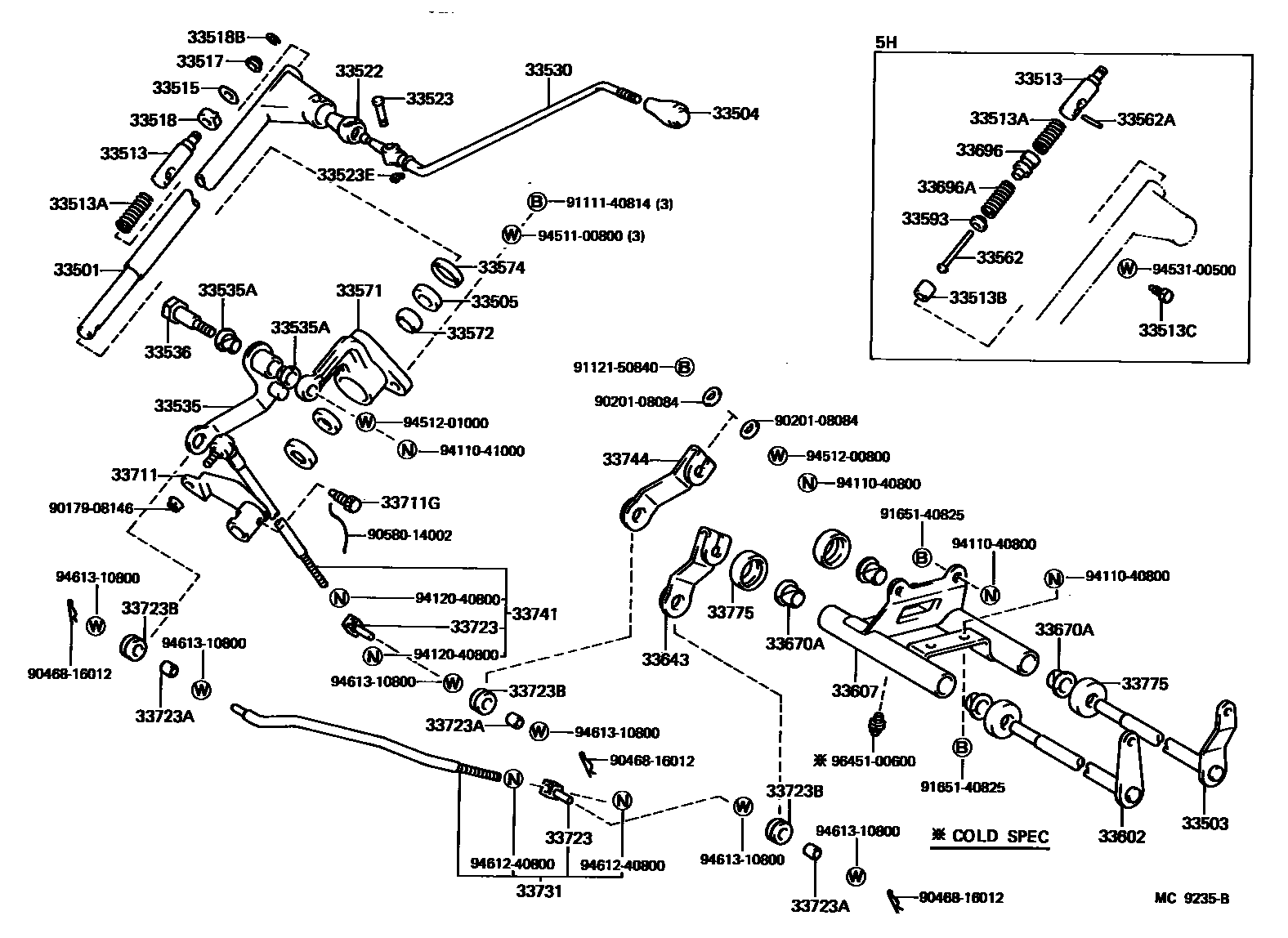

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-26041iLH11,RH11..RHD..4H198211-198507

main33501-26051iLH11,RH11..LHD..4H198211-198507

main33501-26090iLH11..RHD..5H198211-198507

main33501-26100iLH11..LHD..EUR198211-198507

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-26051iLH11,RH11..LHD198211-198507

main33503-26080iLH11,RH11..RHD198211-198507

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iLH11,RH11198211-198507

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iLH11,RH11198211-198507

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iLH11..5H198211-198507

main33513-36020iLH11,RH11..4H198211-198507

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iLH11,RH11198211-198507

33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90560-11015iLH11..5H198211-198507

33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90109-05012iLH11..5H198211-198507

33515SEAT, CONTROL SHAFT UPPER

main33515-30010iLH11,RH11198211-198507

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iLH11,RH11198211-198507

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iLH11,RH11198211-198507

sub33518-35010

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iLH11,RH11198211-198507

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iLH11,RH11198211-198507

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iLH11,RH11198211-198507

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iLH11,RH11198211-198507

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-26050iLH11,RH11..RHD198211-198507

main33541-26060iLH11,RH11..LHD198211-198507

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-26012iLH11,RH11..RHD198211-198507

main33535-26020iLH11,RH11..LHD198211-198507

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iLH11,RH11198211-198507

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iLH11,RH11198211-198507

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-26010iLH11..5H198211-198507

33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main90254-03006iLH11..5H198211-198507

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-26012iLH11,RH11198211-198507

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iLH11,RH11198211-198507

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iLH11,RH11198211-198507

33593HOLDER, SPRING (FOR SELECT LEVER)

main33593-26030iLH11..5H198211-198507

33602LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT)

main33602-26070iLH11,RH11..RHD198211-198507

main33602-26080iLH11,RH11..LHD198211-198507

33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33607-26100iLH11,RH11..LHD198211-198507

main33607-26180iLH11,RH11..RHD198211-198507

33643LEVER, GEAR SELECTING

main33641-26040iLH11,RH11..RHD198211-198507

main33641-26050iLH11,RH11..LHD198211-198507

33670ABUSH (FOR CONTROL ROD SUPPORT)

main90386-15082iLH11,RH11..RHD198211-198507

33696SEAT, SELECT SPRING

main33696-26020iLH11..5H198211-198507

33696ASPRING, COMPRESSION

main90501-18049iLH11..5H198211-198507

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-26030iLH11,RH11..RHD198211-198507

main33527-26040iLH11,RH11..LHD198211-198507

sub33527-26050

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iLH11,RH11198211-198507

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-10020iLH11,RH11198211-198507

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90389-08005iLH11,RH11198211-198507

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177iLH11,RH11198211-198507

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-26012iLH11,RH11198211-198507

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-26041iLH11,RH11..RHD198211-198507

main33710-26051iLH11,RH11..LHD198211-198507

33744LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33744-26040iLH11,RH11..RHD198211-198507

main33744-26050iLH11,RH11..LHD198211-198507

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020iLH11,RH11..LHD198211-198507

main33775-28020iLH11,RH11..RHD198211-198507

9017908146

main90179-08146

9020108084

main90201-08084

9046816012

main90468-16012

9058014002

main90580-14002

9111140814

main91111-40814

9112150840

main91121-50840

9165140825

main91651-40825

9411040800

main94110-40800

9411041000

main94110-41000

9412040800

main94120-40800

9451100800

main94511-00800

9451200800

main94512-00800

9451201000

main94512-01000

9453100500

main94531-00500

9461240800

main94612-40800

9461310800

main94613-10800

9645100600

main96451-00600

57 parts on this diagram · 5 diagrams in section
