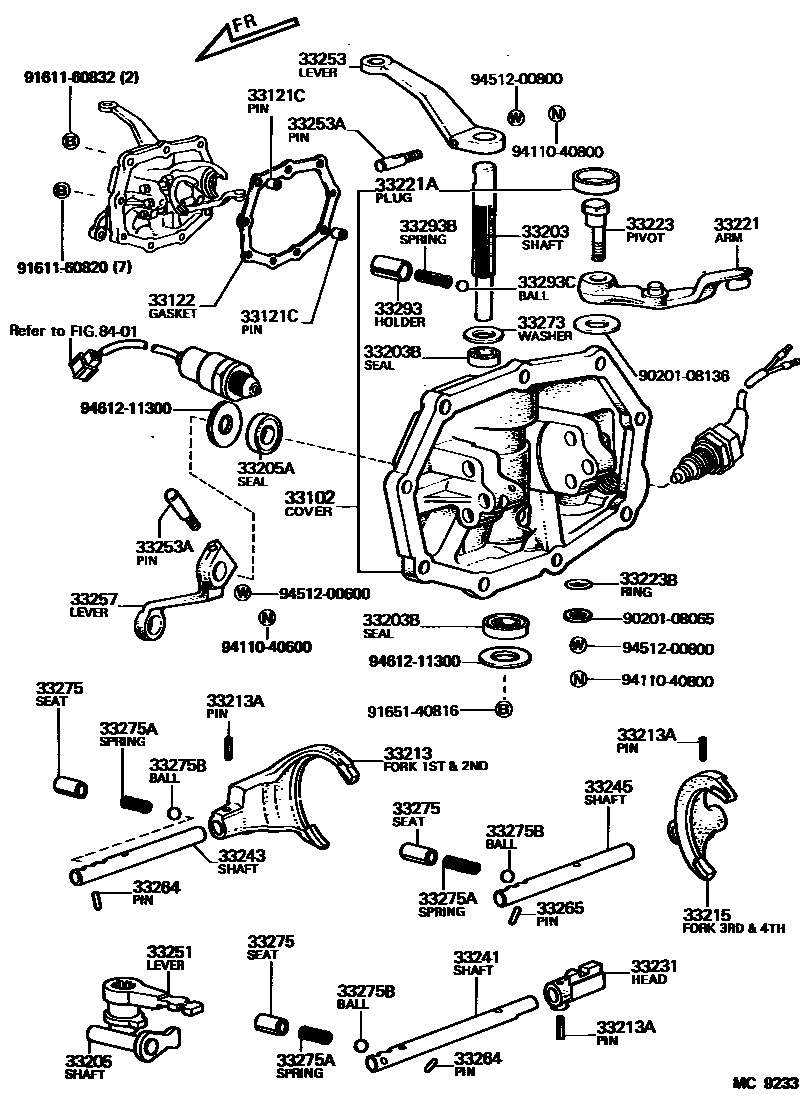

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33121COVER, MANUAL TRANSMISSION CASE
33121CPIN(FOR TRANSMISSION CASE COVER)
L=14,OD=10
L=11,OD=11
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
LWR
UPR
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
L=22
L=25.5
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)
sub96411-42500
33223PIVOT, SHIFT ARM
33223BRING, O(FOR SHIFT ARM PIVOT)
33231HEAD, REVERSE SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
*NSW & VICTORIA SPEC
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
OD=8,P=1.25
OD=6,P=1.0
33257LEVER, SELECT OUTER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
OD=6,L=16
OD=9.52,STEEL,BALL
L=32.9
L=21.6,PIN,PIN,L=21.6
L=13.6,OD=9.5,PIN,L=13.6
L=14.9
33265PIN, SHIFT INTERLOCK, NO.2
L=28.8,OD=6.0
L=11.1,OD=4.8
33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=15.2
33275BBALL, SHAFT DETENT
33293HOLDER, REVERSE RESTRICT BALL
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
33293CBALL (FOR REVERSE RESTRICT)
8401
9020108065
main90201-08065
9020108136
main90201-08136
9161160820
main91611-60820
9161160832
main91611-60832
9165140816
main91651-40816
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
9461211300
main94612-11300
43 parts on this diagram · 3 diagrams in section
