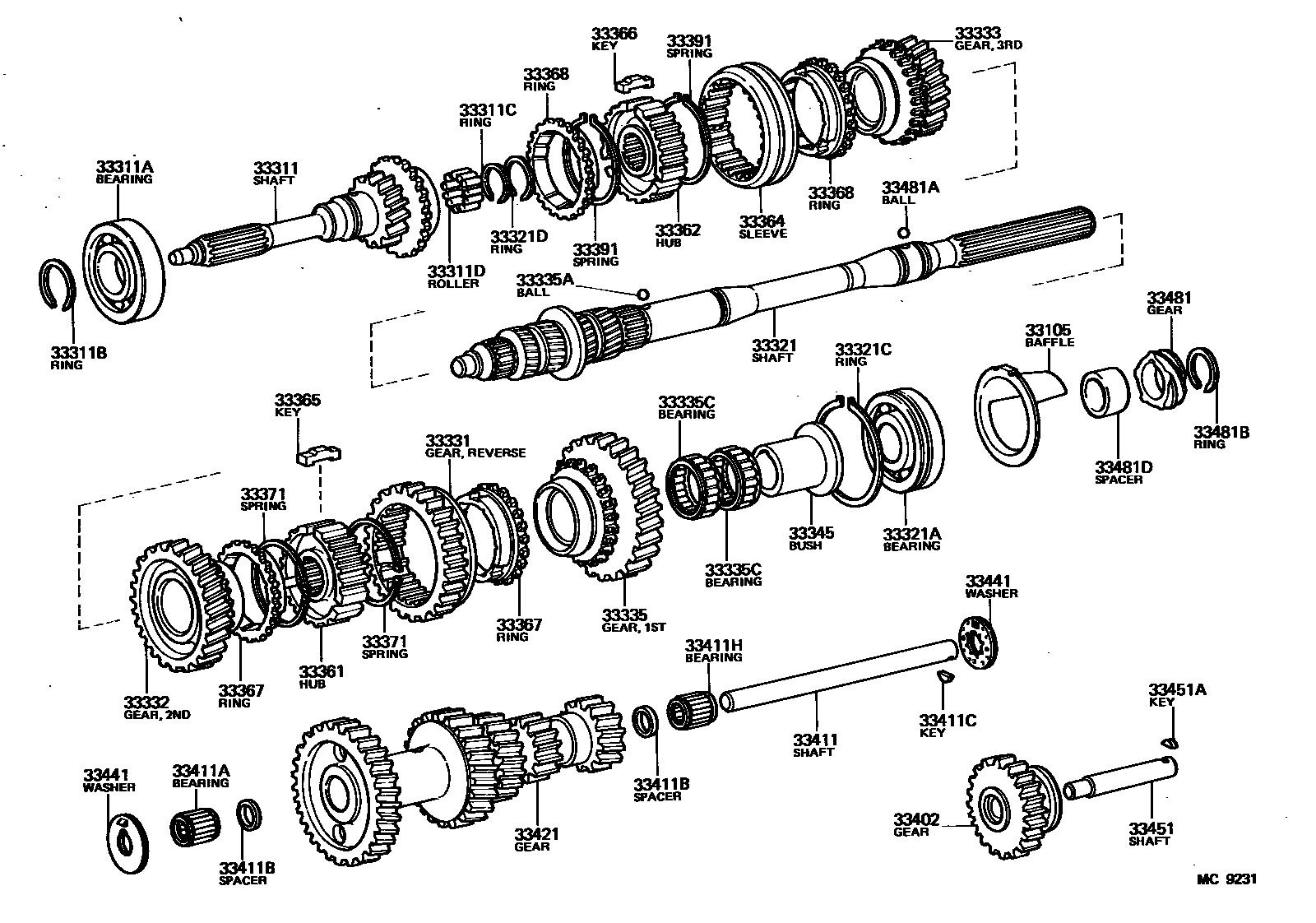

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.05,MARK 1,T=2.05-2.10
T=2.10,MARK 2,T=2.10-2.15
T=2.15,MARK 3,T=2.15-2.20
T=2.20,MARK 4,T=2.20-2.25
T=2.25,MARK 5,T=2.25-2.30
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.35,MARK 1,T=1.35-1.45
T=1.45,MARK 2,T=1.45-1.55
T=1.55,MARK 3,T=1.55-1.65
T=1.65,MARK 4,T=1.65-1.75
T=1.75,MARK 5,T=1.75-1.85
T=1.65,ID=71.1
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1,T=1.85-1.90
T=1.95-2.00,MARK E-1,T=1.95-2.00
T=1.75-1.80,MARK C-1,T=1.75-1.80
T=2.05-2.10,MARK F-1,T=2.05-2.10
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90-1.95
T=2.00-2.05,MARK F,T=2.00-2.05
33332GEAR, 2ND
33335GEAR, 1ST
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33345BUSH, 1ST GEAR
33361HUB, TRANSMISSION CLUTCH, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33411COUNTERSHAFT
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=2.25,T=2.20-2.30,RR SIDE
T=2.35,T=2.30-2.40,RR SIDE
T=2.45,T=2.40-2.50,RR SIDE
T=2.55,T=2.50-2.60,RR SIDE
T=2.65,T=2.60-2.70,RR SIDE
T=2.21,FR SIDE
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,MARK 5X17-19
N=6,MARK 6X18-20
N=4,*AXC=G162,N=4
N=5,MARK 5X17-19,*AXC=G142,N=5
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=2.20-2.25,MARK 1,T=2.20-2.25
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90-1.95
T=2.00-2.05,MARK F,T=2.00-2.05
T=2.10-2.15,MARK G,T=2.10-2.15
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
40 parts on this diagram · 3 diagrams in section
