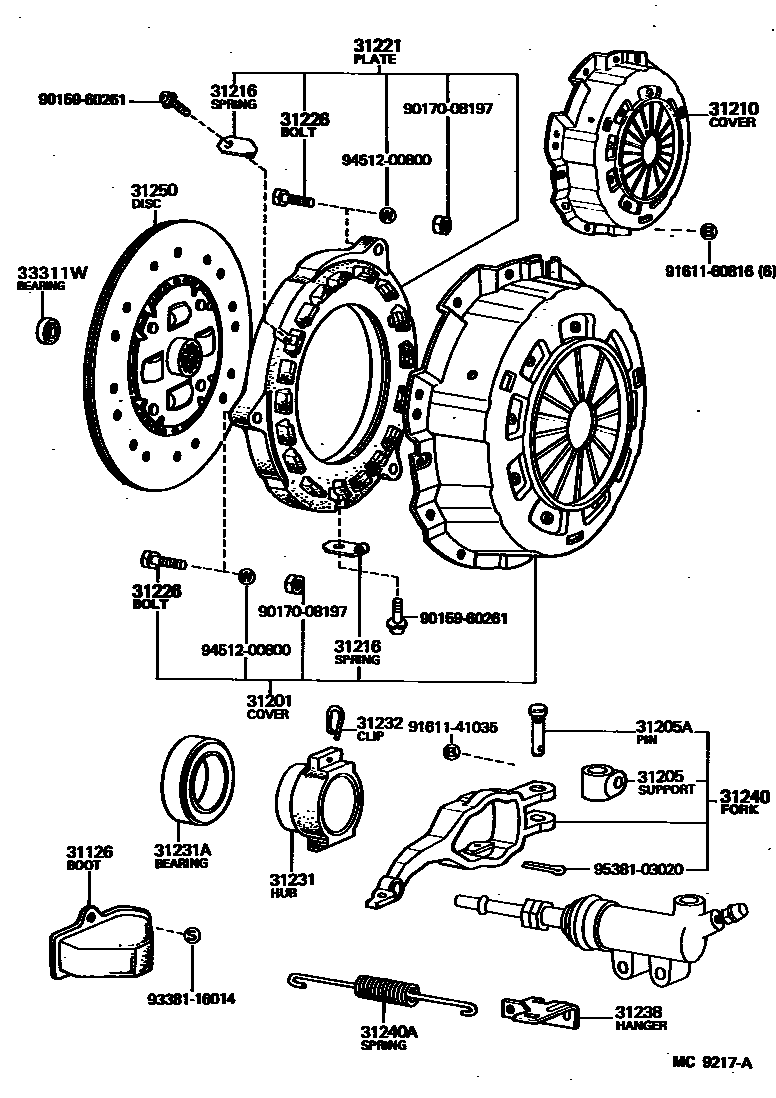

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iLH11..4H198211-198507

main31126-20070iLH11..5H198401-198507

main31126-25021iLH11..5H198211-198401

main31126-26010iRH11198211-198507

31201COVER SUB-ASSY, CLUTCH

main31201-29085iLH11198211-198507

sub31201-26010

main31201-39047iRH11198211-198507

31205SUPPORT SUB-ASSY, RELEASE FORK

main31205-30010iRH11198211-198507

31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)

main90245-10072iRH11198211-198507

31210COVER ASSY, CLUTCH

main31210-26030iLH11..4H198211-198507

sub31210-26070

main31210-35042iRH11198211-198507

sub31210-22120

main31210-36029iLH11..5H198211-198507

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010iLH11,RH11198211-198507

31221PLATE, CLUTCH PRESSURE

main31221-29035iLH11..4H198211-198507

main31221-39045iRH11198211-198507

sub31221-35020

main31221-39056iLH11..5H198211-198507

sub31221-36025

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iLH11,RH11198211-198507

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLH11..5H198401-198507

main31231-30080iLH11198211-198507

main31231-35022iRH11198211-198507

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLH11,RH11198211-198507

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iLH11..5H198401-198507

main31232-30020iLH11,RH11198211-198507

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-26010iRH11198211-198507

31240FORK ASSY, CLUTCH RELEASE

main31204-20090iLH11..5H198401-198507

main31204-26010iLH11198211-198507

main31240-35012iRH11198211-198507

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iLH11..4H198211-198507

main90506-16282iRH11198211-198507

31250DISC ASSY, CLUTCH

main31250-26050iLH11..5H198211-198408

sub31250-26051

main31250-26051iLH11..5H198408-198507

sub31250-26052

main31250-35061iLH11,RH11..4H198211-198502

sub31250-35062

main31250-35062iLH11,RH11..4H198502-198507

sub31250-35063

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH11,RH11198211-198507

sub90363-12024

9015960261

main90159-60261

9017008197

main90170-08197

9161141035

main91611-41035

9161160816

main91611-60816

9338116014

main93381-16014

9451200800

main94512-00800

9538103020

main95381-03020

23 parts on this diagram · 2 diagrams in section
