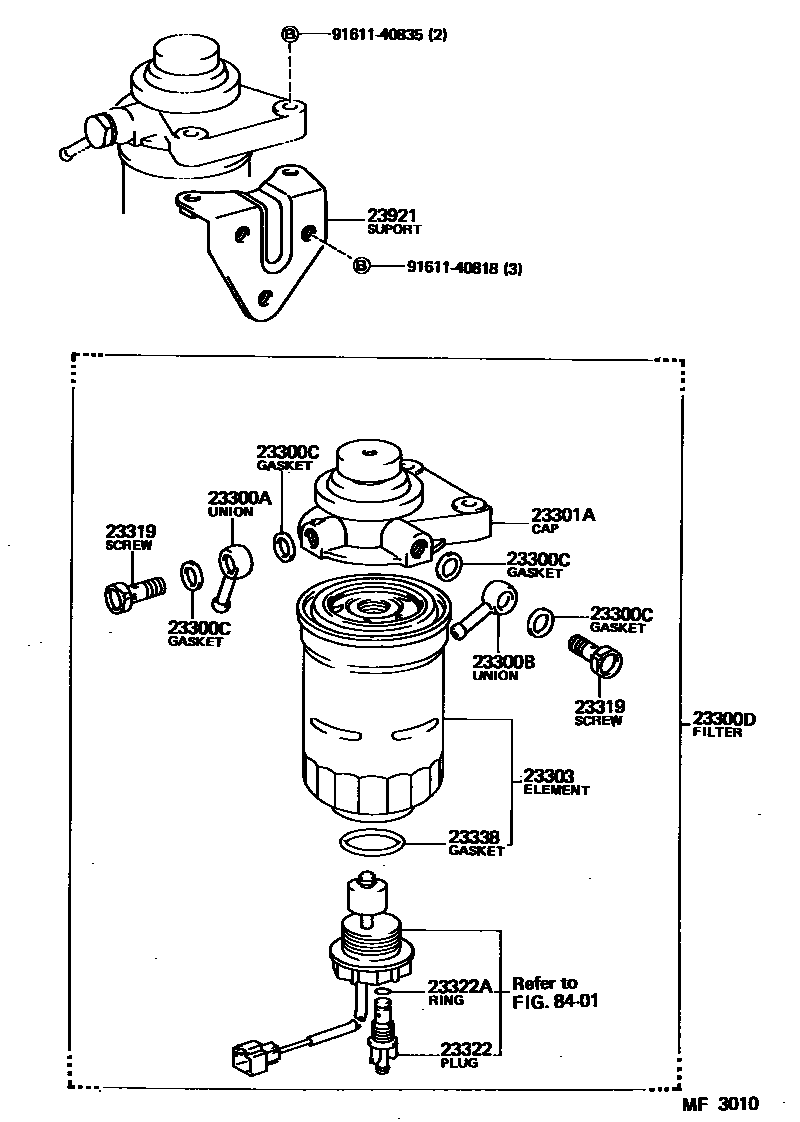

FUEL FILTER

0001 1 0002 1

23300FILTER ASSY, FUEL

main23300-25020i12R..RH11198211-198507

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016iL..LH11198211-198507

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016iL..LH11198211-198507

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030iL..LH11198211-198507

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54120iL..LH11198211-198507

sub23300-54121

23301ACAP ASSY, FUEL FILTER

main23301-64010iL..LH11198211-198507

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010iL..LH11198211-198507

23319SCREW, FUEL PIPE FOLLOW

main90099-18011iL..LH11198211-198507

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010iL..LH11198211-198507

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iL..LH11198211-198507

23338GASKET(FOR WARNING SWITCH)

main23344-64010iL..LH11198211-198507

23921SUPPORT, FUEL FILTER

main23921-54070iL..LH11198211-198507

main90461-12136i12R..RH11198211-198507

8401

9161140818

main91611-40818

9161140835

main91611-40835

15 parts on this diagram · 2 diagrams in section
