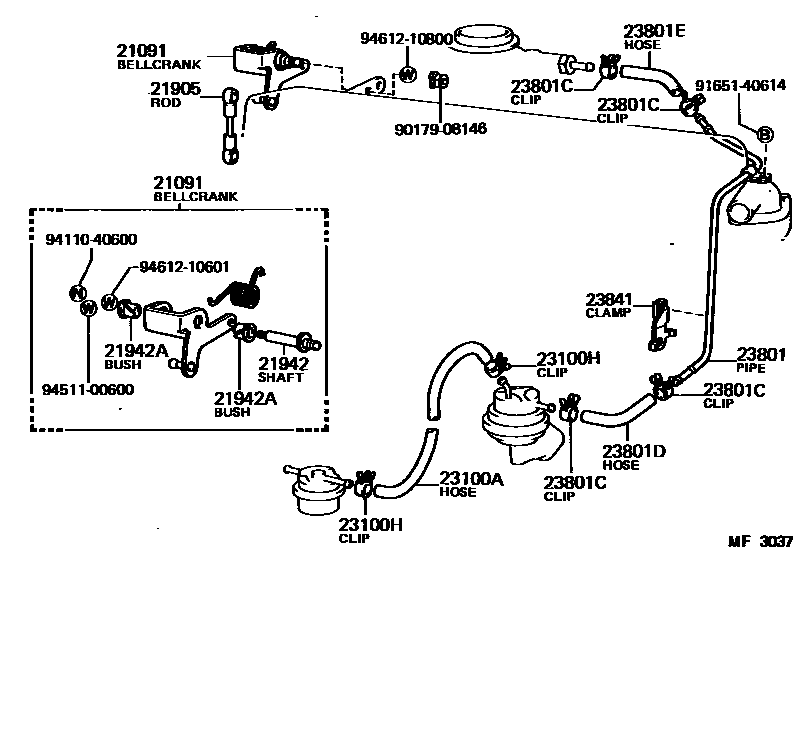

FUEL PIPE & CLAMP

21091BELLCRANK SUB-ASSY, ACCELERATOR

main21091-95A00i12R..RH11198211-198507

21905ROD SUB-ASSY, ACCELERATOR CONNECTING

main78104-20041i12R..RH11198211-198507

21942SHAFT, ACCELERATOR LINK

main21941-31010i12R..RH11198211-198507

21942ABUSH(FOR ACCELERATOR LINK SHAFT)

main90386-08024i12R..RH11198211-198507

23100AHOSE, FUEL

main95332-06040i12R..RH11198211-198507

*H,L=360

sub95333-06040

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i12R..RH11198211-198507

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-31070i12R..RH11198211-198507

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-12001×4i12R..RH11198211-198507

sub96132-51100

23801DHOSE, FUEL PIPE, NO.1

main95332-06010i12R..RH11198211-198507

L=100

sub95333-06010

23801EHOSE, FUEL PIPE, NO.2

main95332-06010i12R..RH11198211-198507

sub95333-06010

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-31020i12R..RH11198211-198507

9017908146

main90179-08146

9165140614

main91651-40614

9411040600

main94110-40600

9451100600

main94511-00600

9461210601

main94612-10601

9461210800

main94612-10800

17 parts on this diagram · 1 diagram in section
