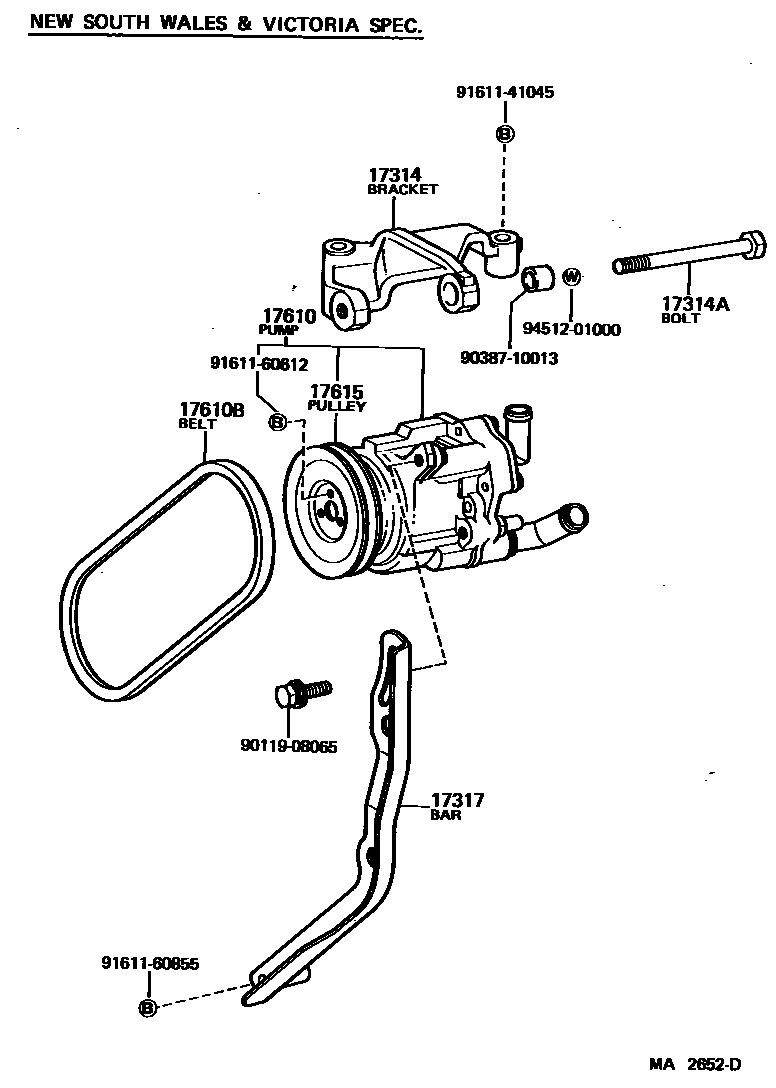

AIR PUMP

17314BRACKET, AIR PUMP

main17314-31010i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main91121-51090i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

17317BAR, AIR PUMP ADJUSTING, NO.1

main17031-31010i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

17610PUMP ASSY, AIR

main17610-31030i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

17610BBELT, V(FOR AIR PUMP)

main99321-00770i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

17615PULLEY(FOR AIR PUMP)

main17615-31010i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

9011908065

main90119-08065

9038710013

main90387-10013

9161141045

main91611-41045

9161160612

main91611-60612

9161160855

main91611-60855

9451201000

main94512-01000

12 parts on this diagram · 1 diagram in section
