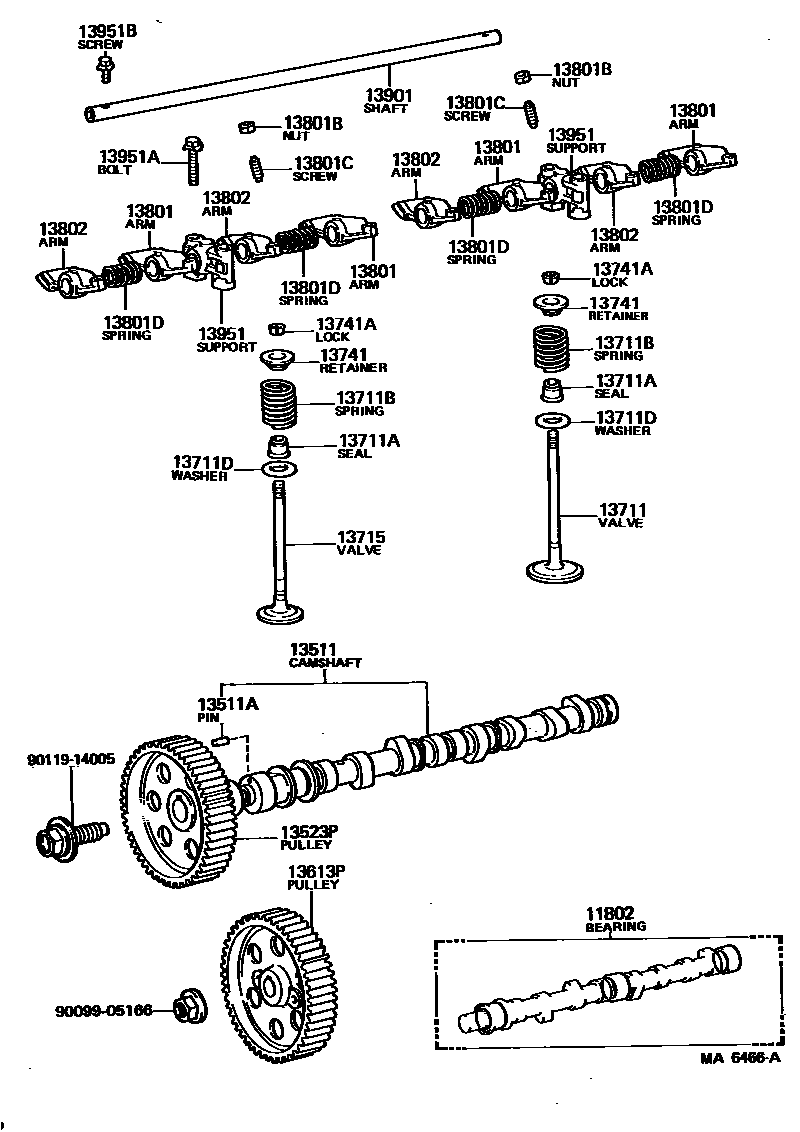

CAMSHAFT & VALVE

0001 1 0002 1 0004 1

11802BEARING SET, CAMSHAFT

main11802-31010i12R..RH11198211-198507

STD

main11802-54010iL..LH11198211-198507

STD,STD

main11803-54010iL..LH11198211-198507

U/S 0.125,U/S 0.125

main11804-31010i12R..RH11198211-198507

U/S 0.25

main11804-54010iL..LH11198211-198507

U/S 0.25,U/S 0.250

main11805-31010i12R..RH11198211-198507

U/S 0.50

13511CAMSHAFT

main13501-54020iL..LH11..EUR198211-198507

main13501-54030iL..LH11..ARL,GEN,IDN198211-198308

main13511-31020i12R..RH11198211-198507

sub13511-31900

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121iL..LH11198211-198507

L=15,OD=5

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-31011i12R..RH11198211-198507

13523PPULLEY, CAMSHAFT TIMING

main13523-54020iL..LH11198211-198507

13613PPULLEY, INJECTION PUMP DRIVE

main13603-54020iL..LH11198507-198507

N=42

main13613-54020iL..LH11198211-198507

N=42

sub13603-54020

13711VALVE, INTAKE

main13711-31050i12R..RH11198211-198507

main13711-54010iL..LH11198211-198507

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02033i12R..RH11198211-198507

main90913-02060iL..LH11198211-198507

sub90913-02059

13711BSPRING, COMPRESSION(FOR INNER)

main90501-44002iL..LH11198211-198507

WD=4.35,CW=6.25

main90501-45005i12R..RH11198211-198507

WD=4.5,CW=6.25

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-15387i12R..RH11198211-198507

main90201-20579iL..LH11198211-198507

13715VALVE, EXHAUST

main13715-31070i12R..RH11198211-198507

main13715-54010iL..LH11198211-198507

13741RETAINER, VALVE SPRING

main13741-25012i12R..RH11198211-198507

main13741-54010iL..LH11198211-198507

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i12R..RH11198211-198507

main90913-03016iL..LH11198211-198507

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-54012iL..LH11..ARL,GEN,IDN198211-198308

main13801-54020iL..LH11..EUR198211-198507

sub13801-54021

main13811-31022i12R..RH11198211-198507

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08094i12R..RH11198211-198507

sub90170-08005

main90170-08210iL..LH11198211-198507

sub90170-08005

13801CSCREW, VALVE ADJUSTING

main90913-05019iL..LH11198211-198507

main90913-05020i12R..RH11198211-198507

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16098i12R..RH11198211-198507

CTR,WD=1.6,CW=9

main90501-16163iL..LH11198211-198507

FR & RR,WD=1.6,CW=7.5

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-54011iL..LH11..ARL,GEN,IDN198211-198308

main13802-54020iL..LH11..EUR198211-198507

sub13802-54021

main13812-31022i12R..RH11198211-198507

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-31020i12R..RH11198211-198507

main13901-54010iL..LH11198211-198507

13951SUPPORT, VALVE ROCKER, NO.1

main13951-31020i12R..RH11198211-198507

main13951-54010iL..LH11..ARL,GEN,IDN198211-198308

main13951-54020iL..LH11198211-198507

13951ABOLT(FOR ROCKER SUPPORT SET)

main90119-08191iL..LH11198211-198507

*8-1.25PX55-30

main90910-01010i12R..RH11198211-198507

*8-1.25PX69.5-16

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main90151-40010i12R..RH11198211-198507

main91611-60620iL..LH11198211-198507

9009905166

main90099-05166

9011914005

main90119-14005
