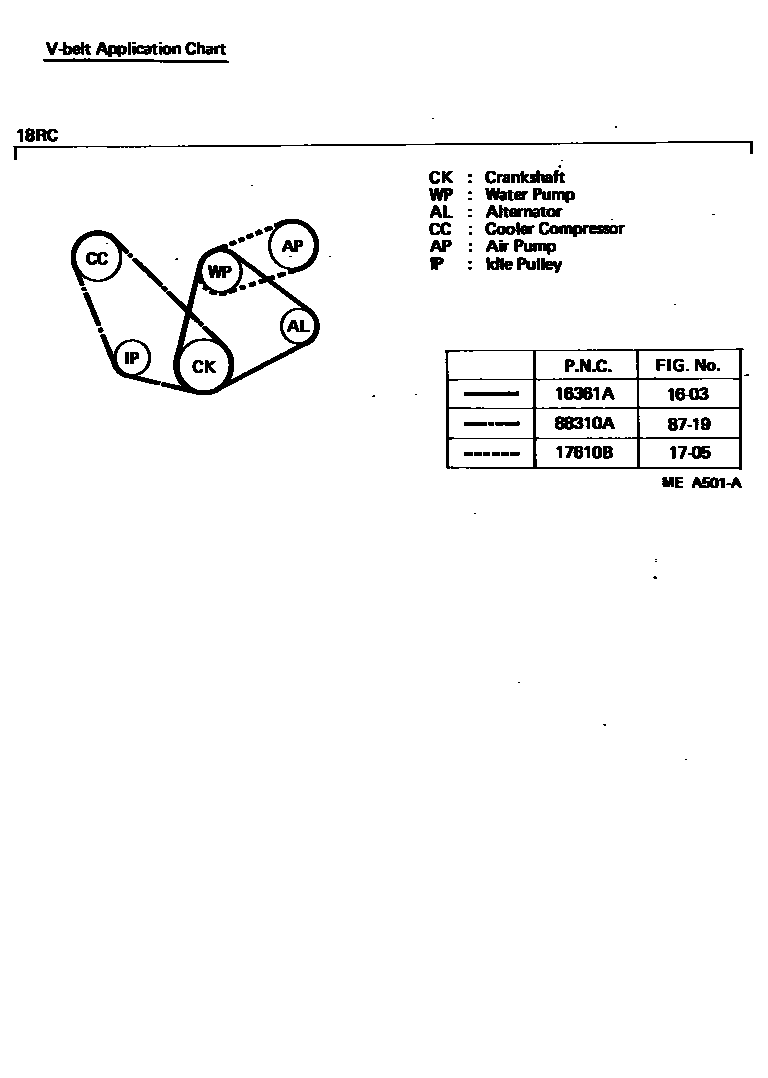

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0008 1 0009 1 0010 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02048i18R..RH22,32..ARL197706-198001

18RC

sub99341-50840

main90916-02060i12R#..RH11,20,30197702-197804

L=890

sub99332-00890

main90916-02061i12R..RH20,30..EUR197702-197804

L=900,12V 40A ALTERNATOR

sub99332-00900

main90916-02061i12R..RH20,30..BUS197702-197804

W/COOLER

sub99332-00900

main99321-00840i18R..RH22,25,32,42197809-198211

L=840

main99332-00890i12R#..RH11,20,30197804-198211

L=890

main99332-00900i12R..RH20..LHD..BUS..GEN198102-198211

W/TWIN COOLER

main99332-00900i12R..RH20,30..BUS197804-197912

W/COOLER

main99332-00900i12R..RH20,30..EUR197804-198211

L=900,12V 40A ALTERNATOR

main99332-00985iL..LH11,20,30197901-198204

L=985

main99332-10985iL..LH11,20,30198204-198207

L=985

main99332-11000iL..LH11,20,30198207-198211

L=1000

main99341-50840i18R..RH22,32..ARL198001-198211

18RC

main99521-10839i18R..RH22,32,42197702-197809

L=839

sub99321-00840

1705

17610BBELT, V(FOR AIR PUMP)

main99321-00770i12R..RH11,20..ARL197904-198211

NEW SOUTH WALES & VICTORIA

main99321-50780i18R..RH22,32..ARL198001-198211

18RC

main99521-10770i12R..RH11,20..ARL197702-197904

NEW SOUTH WALES & VICTORIA

sub99321-00770

main99521-10780i18R..RH22,32..ARL197706-198001

18RC

sub99321-50780

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01010iRH11,20,30..(03S,06S)..(ARL,GEN)197912-198211

main99322-01180iRH22,32..V..(ARL,GEN)197912-198211

W/SINGLE COOLER

sub99332-01180

main99322-01200iRH22,32..LHD..(12S,15S)198103-198211

W/TWIN COOLER

sub99332-11200

main99322-01210iRH42197804-197912

main99322-01280iRH20..RHD..BUS..GEN198012-198211

W/TWIN COOLER

main99322-01280iRH20,30..RHD..BUS..GEN197804-197912

main99322-01360iLH20..12S198105-198211

main99522-11015iRH20,30..BUS..GEN197702-197912

sub99322-11020

main99522-11180iRH22,32..V..(ARL,GEN)197702-197912

sub99322-01180

main99522-11205iRH22,32..RHD..BUS197702-197804

sub99322-01200

main99522-11281iRH20,30..RHD197702-197804

sub99322-01280

6 parts on this diagram · 7 diagrams in section
