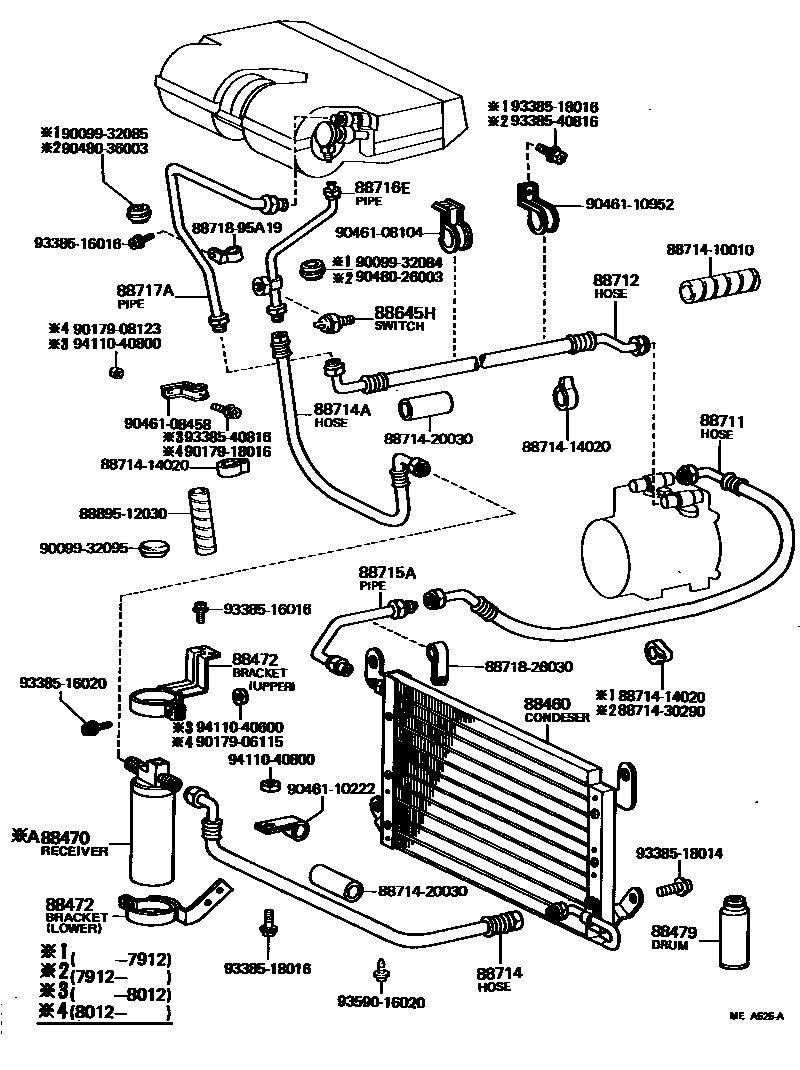

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1

88460CONDENSER ASSY, COOLER

main88460-95A00iRH2#,3#..RHD..BUS..GEN197702-198211

main88460-95A01iRH42197702-197912

W/MOTOR FAN

sub88460-95A05

main88460-95A05iLH20,RH20,30..RHD..BUS..GEN198105-198211

W/MOTOR FAN

main88460-95A06iLH20..RHD..12S198105-198211

main88460-95A08iRH20..LHD..BUS..GEN198012-198211

main88460-95A09iRH20..LHD..BUS..GEN198012-198211

W/MOTOR FAN

main88460-95A09iRH22,32..LHD..(12S,15S)198103-198211

FR,W/MOTOR FAN

main88460-95A12iRH22,32..LHD..(12S,15S)198103-198211

RR,W/MOTOR FAN

main88460-95A13iLH20..LHD..12S198105-198211

main88460-95A14iRH22,32..LHD..(12S,15S)198103-198211

NO.3

88470RECEIVER & DRYER ASSY, COOLER

main88470-10010iRH11,2#,3#..(03S,06S)..(ARL,GEN)197702-197912

sub88470-12021

main88470-20070iRH11,20,22,3#..ARL,GEN197912-198211

main88470-30450iRH42197702-197912

sub88471-30260

main88471-10010iLH20..RHD..12S198105-198211

sub88471-22010

main88471-30260iRH20,30..RHD..BUS..GEN198105-198211

W/TWIN COOLER

88472BRACKET, RECEIVER TANK, NO.1

main88472-95A00iRH2#,3#..RHD..BUS..GEN197702-198211

main88472-95A01iRH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN)197702-198211

UPR

main88472-95A02iRH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN)197702-198211

LWR

main88472-95A03iRH11,20,22,3#..LHD..(03S,06S)..GEN197702-198211

UPR

main88472-95A04iRH11,20,22,3#..LHD..(03S,06S)..GEN197702-198211

LWR

main88472-95A05iLH20..RHD..12S198105-198211

UPR

main88472-95A06iLH20..RHD..12S198105-198211

LWR

main88472-95A07iRH20..LHD..BUS..GEN198012-198211

UPR,W/TWIN COOLER

main88472-95A08iRH20..LHD..BUS..GEN198012-198211

LWR,W/TWIN COOLER

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main88434-30010iRH42197702-197912

sub90986-02001

main90986-02001iRH11,20,22,3#..(03S,06S)..(ARL,GEN)197912-198211

400G

sub90986-02004

sub90986-02005

88645HSWITCH, PRESSURE NO.1

main88645-30250iRH11,20,22,3#,42..ARL,GEN197912-198211

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-25020iRH20..LHD..BUS..GEN198012-198211

W/TWIN COOLER

main88711-26050iRH22,32..RHD..BUS197702-198211

sub88711-94351

main88711-95A02iRH11,20,30..(03S,06S)..(ARL,GEN)197702-198211

main88711-95A03iRH20,30..RHD..BUS..GEN197702-197912

main88711-95A03iRH20,30..RHD..BUS..GEN198105-198211

W/TWIN COOLER

main88711-95A07iLH20..RHD..12S198105-198211

W/TWIN COOLER

main88711-95A12iRH22,32..LHD..(12S,15S)198103-198211

W/TWIN COOLER

main88711-95A17iLH20..LHD..12S198105-198211

W/TWIN COOLER

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-95A00iRH42197702-197804

main88712-95A02iRH11,20,30..RHD..(03S,06S)..(ARL,GEN)197702-198211

main88712-95A03iRH22,32..RHD..V..(ARL,GEN)197702-198211

main88712-95A04iRH11,20,30..LHD..(03S,06S)..GEN197702-198211

main88712-95A05iRH22,32..LHD..V..GEN197702-198211

main88712-95A06iRH2#,3#..RHD..BUS..GEN197804-197912

main88712-95A12iRH20,30..RHD..BUS..GEN198105-198211

W/TWIN COOLER

main88712-95A13iLH20..RHD..12S198105-198211

main88712-95A16iRH20..LHD..BUS..GEN198012-198211

W/TWIN COOLER

main88712-95A19iRH22,32..LHD..(12S,15S)198103-198211

W/TWIN COOLER

main88712-95A20iLH20..LHD..12S198105-198211

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88711-22060iRH20..LHD..BUS..GEN198012-198211

W/TWIN COOLER

main88711-95A00iRH22,32..RHD..BUS197711-197804

main88711-95A00iLH20..RHD..12S198105-198211

W/TWIN COOLER

main88711-95A04iRH2#,3#..RHD..BUS197804-197912

main88711-95A04iRH20,30..RHD..BUS..GEN198105-198211

W/TWIN COOLER

main88711-95A15iRH22,32..LHD..(12S,15S)198103-198211

main88711-95A16iLH20..LHD..12S198105-198211

W/TWIN COOLER

main88721-95A00iRH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN)197702-198211

main88721-95A01iRH11,20,22,3#..LHD..(03S,06S)..GEN197702-198211

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88711-95A00iRH42197804-197912

main88711-95A01iRH2#,3#..RHD197702-197804

main88711-95A14iRH22,32..LHD..(12S,15S)198103-198211

W/TWIN COOLER

main88712-87302iRH22,32..V..(ARL,GEN)197912-198012

main88721-87302iRH11,20,22,3#..(03S,06S)..(ARL,GEN)197702-198211

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-26060iRH22,32..V..(ARL,GEN)197702-198211

main88715-95A01iRH11,20,30..(03S,06S)..(ARL,GEN)197702-198211

main88715-95A02iRH42197804-197912

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-90702iRH42197702-197804

main88716-95A04iRH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)197702-197912

main88716-95A05iRH2#,3#..RHD197702-197804

main88716-95A07iRH11,2#,3#..LHD..(03S,06S)..GEN197702-197912

main88716-95A30iRH11..RHD..(ARL,GEN)197912-198211

main88716-95A42iRH11,20,22,3#..LHD..(03S,06S)..GEN197912-198211

main88716-95A54iLH20..LHD..12S198012-198211

W/TWIN COOLER

main88716-95A65iRH20,22,3#..RHD..(ARL,GEN)198012-198211

main88716-95A66iLH20..RHD..12S198105-198211

W/TWIN COOLER

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88716-95A24iLH20..LHD..12S198105-198211

main88717-90700iRH42197702-197804

LH

main88717-90702iRH42197702-197804

RH

main88717-95A01iRH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)197702-197912

main88717-95A02iRH2#,3#..RHD197702-197804

LH

main88717-95A03iRH2#,3#..RHD197702-197804

RH

main88717-95A04iRH11,20,22,3#..LHD..(03S,06S)..GEN197702-198211

main88717-95A05iRH2#,3#..RHD..BUS..GEN197804-197912

RH

main88717-95A15iRH11..RHD..(ARL,GEN)197912-198211

main88717-95A24iRH20..LHD..BUS..GEN198012-198211

W/TWIN COOLER

main88717-95A37iRH20,22,3#..RHD..(ARL,GEN)198012-198211

main88717-95A38iLH20..RHD..12S198105-198211

8871410010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10010

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871420030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20030

8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-30290

8871826030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26030

8871895A19PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A19

8889512030HOLDER, FUSE

main88895-12030

9009932084

main90099-32084

9009932085

main90099-32085

9009932095

main90099-32095

9017906115

main90179-06115

9017908123

main90179-08123

9017918016

main90179-18016

9046108104

main90461-08104

9046108458

main90461-08458

9046110222

main90461-10222

9046110952

main90461-10952

9048026003

main90480-26003

9048036003

main90480-36003

9338516016

main93385-16016

9338516020

main93385-16020

9338518014

main93385-18014

9338518016

main93385-18016

9338540816

main93385-40816

9359016020

main93590-16020

9411040600

main94110-40600

9411040800

main94110-40800

9411840800

main94118-40800

40 parts on this diagram · 19 diagrams in section
